Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCH1V5040-1R5N-RIND 1.5 UH 5.30A SMT |
1,500 |
|
Datasheet
|
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±30% | 4.5 A | 5.3A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.161" (4.10mm) |
|
WPN201610HR47MTFIXED IND 470NH 2.7A 49MOHM SMD |
1,413 |
|
Datasheet
|
WPN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.7 A | 4.7A | Shielded | 49mOhm Max | - | 102MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

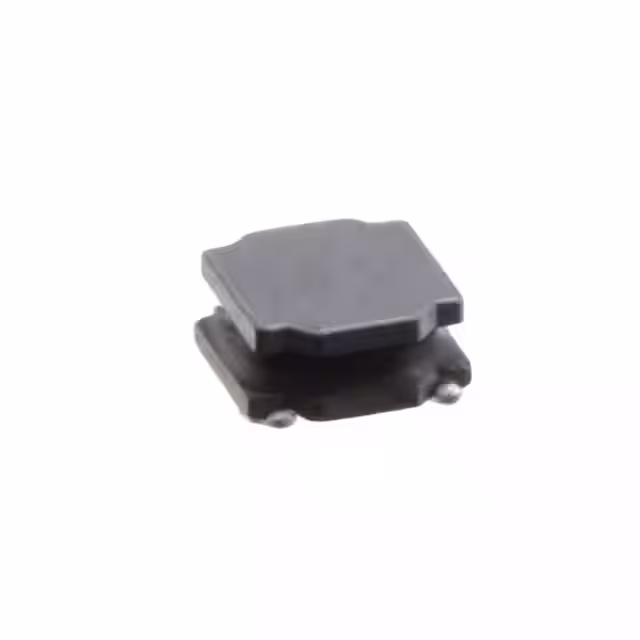

ASPI-4020S-330M-TFIXED IND 33UH 490MA 550MOHM SMD |
1,313 |
|
Datasheet
|
ASPI-4020S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 490 mA | 850mA | Shielded | 550mOhm | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

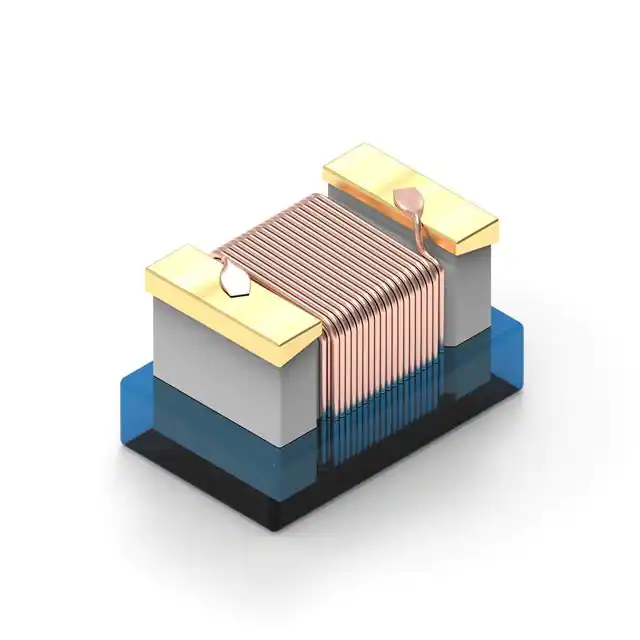

7447602820AWE-KI SMT WIRE WOUND CERAMIC IND |
1,240 |
|
Datasheet
|
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 300 mA | - | Unshielded | 1.5Ohm Max | 15 @ 100MHz | 215MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|

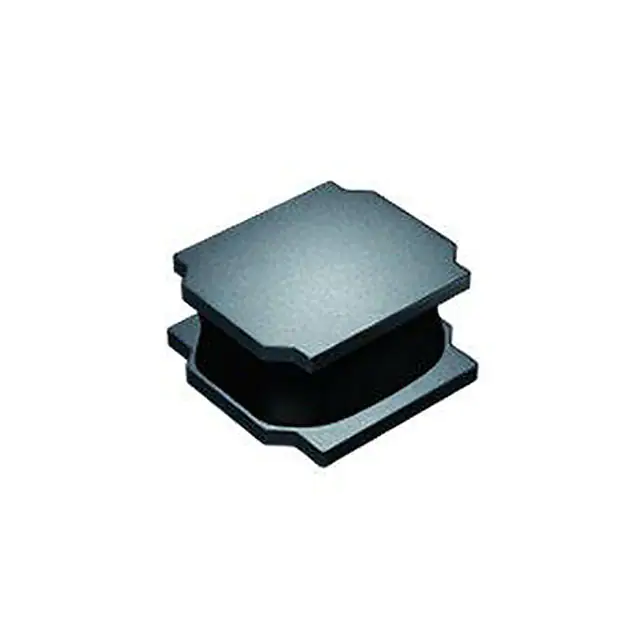

NRS4010T220MDGGVFIXED IND 22UH 500MA 684MOHM SMD |
1,157 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 450mA | Shielded | 684mOhm Max | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
.jpg)
|
PE-1008CD220GTTFIXED IND 22NH 1A 120 MOHM SMD |
18,370 |
|
Datasheet
|
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 1 A | - | Unshielded | 120mOhm Max | 55 @ 350MHz | 1.8GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

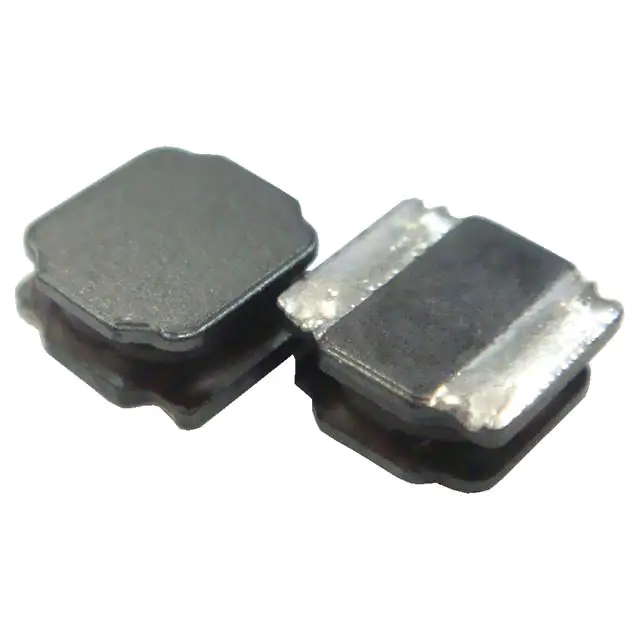

BWVS004040182R2M00FIXED IND 2.2UH 2.5A 60 MOHM SMD |
12,535 |
|
Datasheet
|
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 2.5 A | 2.8A | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
PE-0603CD221GTTFIXED IND 220NH 200MA 1.9OHM SMD |
9,900 |
|
Datasheet
|
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 200 mA | - | Unshielded | 1.9Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|

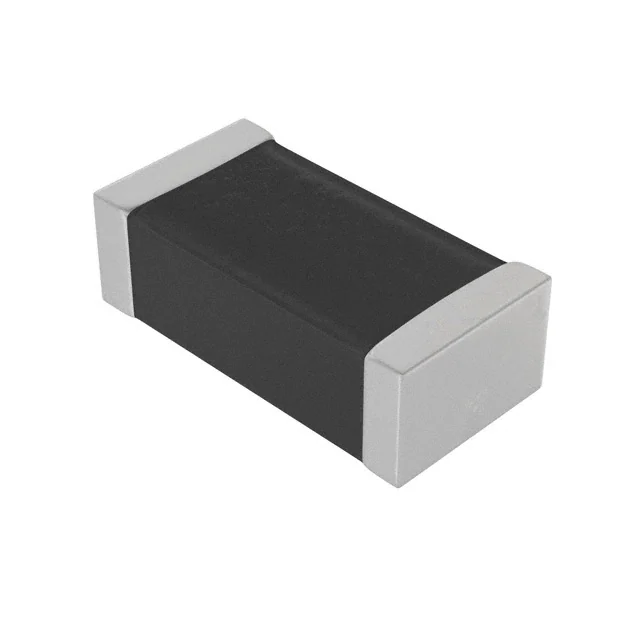

744901118FIXED IND 18NH 100MA 2 OHM SMD |
9,285 |
|
Datasheet
|
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 18 nH | ±2% | 100 mA | - | Unshielded | 2Ohm Max | 13 @ 500MHz | 3.1GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
PE-1008CD271GTTFIXED IND 270NH 500MA 910MOHM SM |
8,946 |
|
Datasheet
|
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±2% | 500 mA | - | Unshielded | 910mOhm Max | 45 @ 350MHz | 525MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
744901122FIXED IND 22NH 90MA 2.6 OHM SMD |
8,058 |
|
Datasheet
|
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 22 nH | ±2% | 90 mA | - | Unshielded | 2.6Ohm Max | 13 @ 500MHz | 2.8GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|

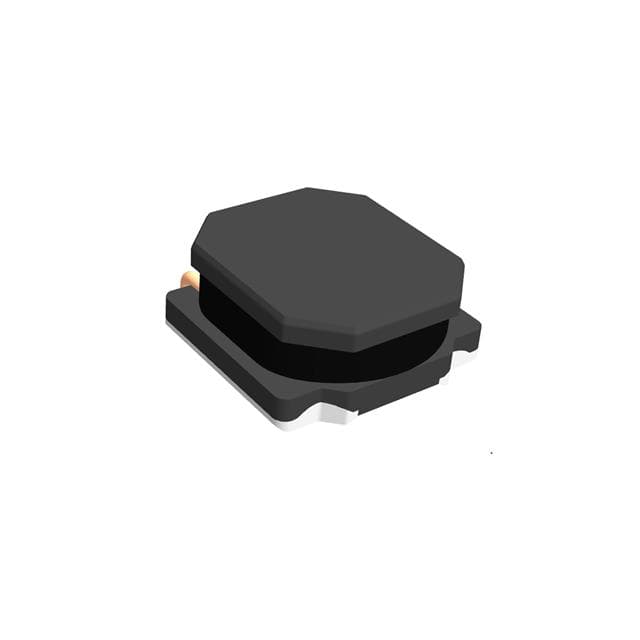

SDCLA1V4018-2R2-RIND SMD POWER 2.2UH 2.2A |
6,990 |
|
Datasheet
|
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 2.2 µH | ±20% | 2.2 A | 3A | Shielded | 42mOhm | - | 60MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SDCLA1V4018-220-RIND SMD POWER 22.0UH 0.72A |
6,939 |
|
Datasheet
|
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 720 mA | 900mA | Shielded | 290mOhm | - | 15MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
PE-0603CD060GTTFIXED IND 6.68NH 700MA 110 MOHM |
6,744 |
|
Datasheet
|
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.68 nH | ±2% | 700 mA | - | Unshielded | 110mOhm Max | 25 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
NRS2012T1R0NGJVFIXED IND 1UH 1.7A 70 MOHM SMD |
6,245 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.7 A | 1.9A | Shielded | 70mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SDCH1V6028-470M-RIND 47 UH 1.40A SMT |
5,834 |
|
Datasheet
|
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 1.1 A | 1.4A | Shielded | 410mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
|
NRS2012T4R7MGJVFIXED IND 4.7UH 910MA 241MOHM SM |
3,600 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 910 mA | 900mA | Shielded | 241mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
SDCLA1V4018-4R7-RIND SMD POWER 4.7UH 1.7A |
3,500 |
|
Datasheet
|
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±20% | 1.7 A | 2A | Shielded | 70mOhm | - | 35MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SDCLA1V4018-150-RIND SMD POWER 15.0UH 0.85A |
3,496 |
|
Datasheet
|
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 15 µH | ±20% | 850 mA | 1.1A | Shielded | 210mOhm | - | 18MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
.jpg)
|
B82422H1154K000FIXED IND 150UH 120MA 7.5OHM SMD |
3,280 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 120 mA | - | Unshielded | 7.5Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
