Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCLA1V4018-100-RIND SMD POWER 10.0UH 1.2A |
2,870 |
|
Datasheet
|
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 10 µH | ±20% | 1.2 A | 1.3A | Shielded | 150mOhm | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
VLS5045EX-2R2N-CAFIXED IND 2.2UH 4.7A 28.6MOHM SM |
2,761 |
|
Datasheet
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.7 A | 6.4A | Shielded | 28.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
BKPB002016102R2MA2FIXED IND 2.2UH 1A 130 MOHM SMD |
2,759 |
|
Datasheet
|
BKPB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1 A | 400mA | Shielded | 130mOhm Max | - | - | - | -55°C ~ 125°C | 3 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VLS6045EX-101M-CAFIXED IND 100UH 900MA 611MOHM SM |
2,523 |
|
Datasheet
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 900 mA | 1.1A | Shielded | 611mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
201610CDMCDDS-R24MCFIXED IND 240NH 6.3A 20 MOHM SMD |
2,345 |
|
Datasheet
|
201610CDMCD/DS | 0806 (2016 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Metal Composite | 240 nH | ±20% | 6.3 A | 6.1A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SDCH1V6028-2R2M-RIND 2.2 UH 6.00A SMT |
2,005 |
|
Datasheet
|
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 4.5 A | 6A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
NRS6028T0R9NMGJVFIXED IND 900NH 4.6A 16.9MOHM SM |
2,000 |
|
Datasheet
|
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 4.6 A | 6.7A | Shielded | 16.9mOhm Max | - | 90MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
WCLA2520V1-1R5-RCHIP IND 1.5UH 0.85A SMT 2 PAD |
2,000 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±10% | 850 mA | - | Unshielded | 170mOhm Max | 12 @ 7.96MHz | 100MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
WCLA2520V1-8R2-RCHIP IND 8.2UH 0.41A SMT 2 PAD |
2,000 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 8.2 µH | ±10% | 410 mA | - | Unshielded | 760mOhm Max | 12 @ 2.52MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
WCLA2520V1-3R3-RCHIP IND 3.3UH 0.715A SMT 2 PAD |
1,954 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±10% | 715 mA | - | Unshielded | 260mOhm Max | 12 @ 7.96MHz | 48MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
WCLA2520V1-1R0-RCHIP IND 1.0UH 1.01A SMT 2 PAD |
1,930 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±10% | 1 A | - | Unshielded | 130mOhm Max | 12 @ 7.96MHz | 345MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
WCLA2520V1-4R7-RCHIP IND 4.7UH 0.505A SMT 2 PAD |
1,920 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 505 mA | - | Unshielded | 520mOhm Max | 12 @ 7.96MHz | 46MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
NRV2012T1R0NGFVFIXED IND 1UH 1.65A 87.6MOHM SMD |
1,875 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.65 A | 2.2A | Unshielded | 87.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
WCLA2520V1-330-RCHIP IND 33.0UH 0.236A SMT 2 PA |
1,759 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 236 mA | - | Unshielded | 2.47Ohm Max | 12 @ 2.52MHz | 15MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
WCLA2520V1-150-RCHIP IND 15.0UH 0.342A SMT 2 PA |
1,727 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 342 mA | - | Unshielded | 1.09Ohm Max | 12 @ 2.52MHz | 21MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
BWVS004040181R5M00FIXED IND 1.5UH 2.6A 40 MOHM SMD |
1,629 |
|
Datasheet
|
BWVS | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±20% | 2.6 A | 3.3A | Shielded | 40mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
MDMK3030T3R3MMFIXED IND 3.3UH 1.6A 173MOHM SMD |
1,531 |
|
Datasheet
|
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 1.6 A | 2.1A | Shielded | 173mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

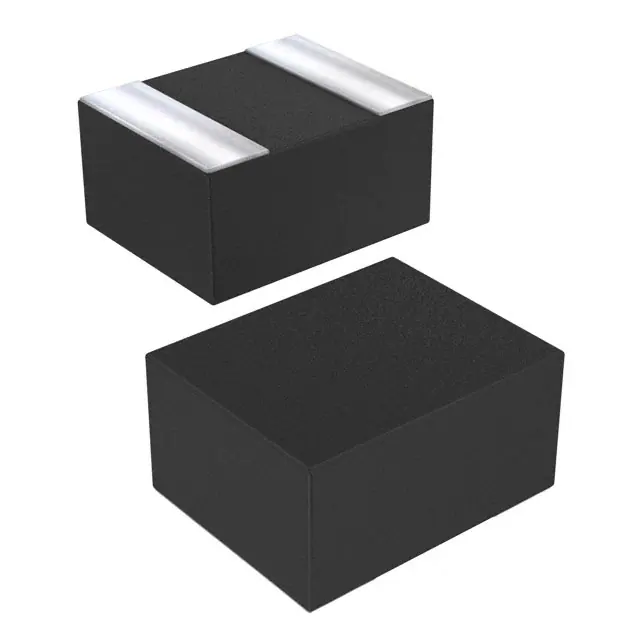

MEKK2520T4R7MFIXED IND 4.7UH SMD |
7,825 |
|
Datasheet
|
MCOIL™, ME | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
VLS201612ET-1R0N-CAFIXED IND 1UH 1.65A 93 MOHM SMD |
6,215 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.65 A | 1.5A | Shielded | 93mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
-Height-.80mm.jpg)
|
LQM2HPNR47MEHLFIXED IND 470NH 2.2A 69 MOHM SMD |
2,794 |
|
Datasheet
|
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 2.2 A | 4A | Shielded | 69mOhm Max | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
