Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-Height-.80mm.jpg)
|

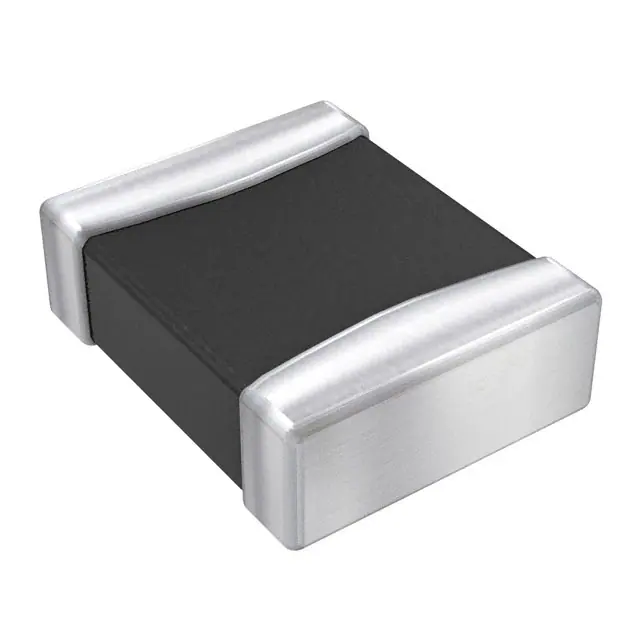

LQM2HPN2R2MEHLFIXED IND 2.2UH 1.3A 188MOHM SMD |
2,667 |
|
Datasheet
|
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.3 A | 800mA | Shielded | 188mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SDCH1V6045-3R3M-RIND 3.3 UH 8.50A SMT |
2,053 |
|
Datasheet
|
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±20% | 4 A | 8.5A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
ASPI-0628-330M-T1FIXED IND 33UH 1.1A 220 MOHM SMD |
1,925 |
|
Datasheet
|
ASPI-0628 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.1A | Shielded | 220mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 0628 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

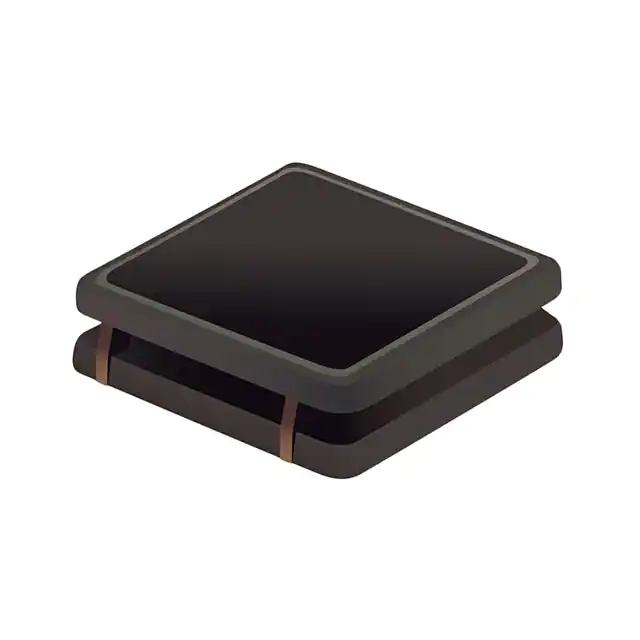

SRN3010TA-2R2MFIXED IND 2.2UH 1.7A 90 MOHM SMD |
1,448 |
|
Datasheet
|
SRN3010TA | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.7 A | 1.3A | Shielded | 90mOhm | 15 @ 1MHz | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3010 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

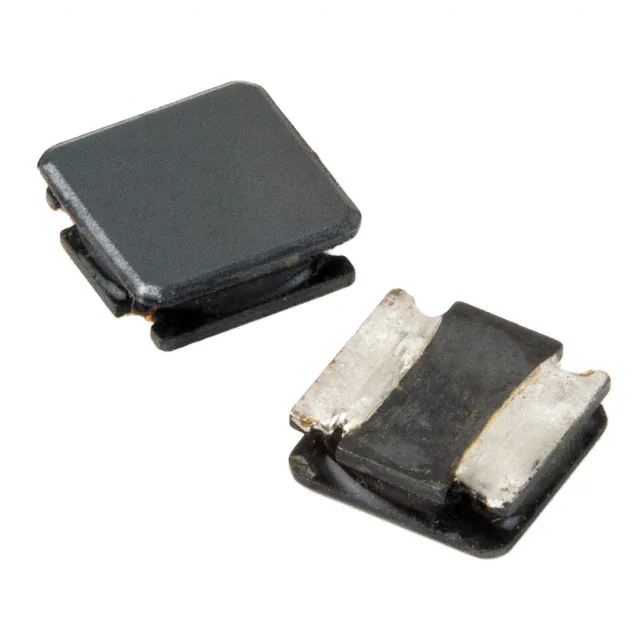

ASPI-0615FS-3R3N-T2FIXED IND 3.3UH 2.8A 30 MOHM SMD |
1,371 |
|
Datasheet
|
ASPI-0615FS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.8 A | 2.8A | Shielded | 30mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.087" (2.20mm) |
|
WPN252010HR47MTFIXED IND 470NH 3.2A 45MOHM SMD |
1,075 |
|
Datasheet
|
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3.2 A | 5.2A | Shielded | 45mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQM2HPN1R0MEHLFIXED IND 1UH 1.65A 119 MOHM SMD |
1,019 |
|
Datasheet
|
LQM2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.65 A | 1.9A | Shielded | 119mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
VLS5045EX-330M-CAFIXED IND 33UH 1.3A 312MOHM SMD |
1,013 |
|
Datasheet
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.3 A | 1.5A | Shielded | 312mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
 MHQ Series.jpg)
|
MHQ0603P1N4CT000FIXED IND 1.4NH 800MA 100MOHM SM |
14,865 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.4 nH | ±0.2nH | 800 mA | - | Unshielded | 100mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
PA4337.334NLTFIXED IND 330UH 570MA 1.651 OHM |
14,856 |
|
Datasheet
|
PA4337.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 330 µH | ±20% | 570 mA | 570mA | Shielded | 1.651Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
MHQ0603P3N5CT000FIXED IND 3.5NH 500MA 250MOHM SM |
14,357 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.5 nH | ±0.2nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 6.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P24NHT000FIXED IND 24NH 160MA 2.2 OHM SMD |
14,269 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 24 nH | ±3% | 160 mA | - | Unshielded | 2.2Ohm Max | 16 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N6CT000FIXED IND 2.6NH 500MA 250MOHM SM |
13,916 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.6 nH | ±0.2nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|

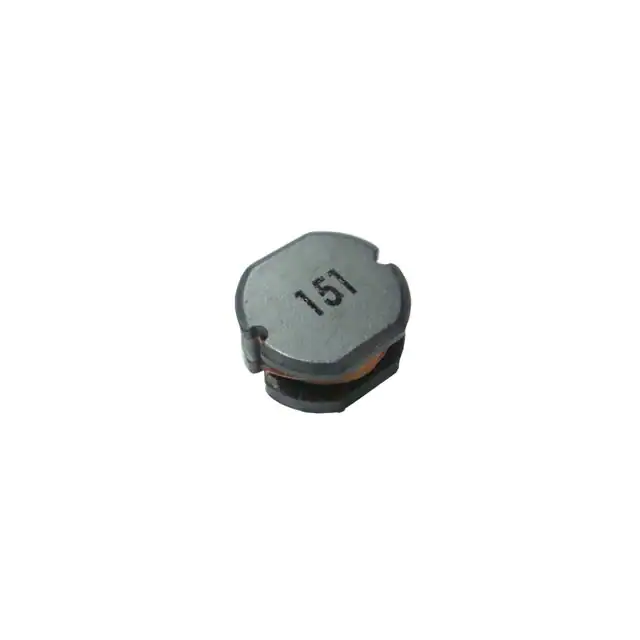

BPSD00060530100K00FIXED IND 10UH 120 MOHM SMD |
13,463 |
|
Datasheet
|
BPSD | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±10% | - | 1.8A | Unshielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.130" (3.30mm) |
|
|
BPSD00060545100K00FIXED IND 10UH 100 MOHM SMD |
13,440 |
|
Datasheet
|
BPSD | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±10% | - | 1.44A | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.193" (4.90mm) |
.jpg)
|
PE-1008CD820GTTFIXED IND 82NH 1A 140 MOHM SMD |
12,987 |
|
Datasheet
|
1008CD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 1 A | - | Unshielded | 140mOhm Max | 60 @ 350MHz | 950MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
MHQ0603P33NHT000FIXED IND 33NH 160MA 2.8 OHM SMD |
10,236 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 33 nH | ±3% | 160 mA | - | Unshielded | 2.8Ohm Max | 14 @ 300MHz | 1.8GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P13NHT000FIXED IND 13NH 180MA 1.5 OHM SMD |
10,134 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 13 nH | ±3% | 180 mA | - | Unshielded | 1.5Ohm Max | 16 @ 500MHz | 3.2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N2CT000FIXED IND 2.2NH 700MA 150MOHM SM |
9,485 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.2 nH | ±0.2nH | 700 mA | - | Unshielded | 150mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P1N2CT000FIXED IND 1.2NH 1A 80 MOHM SMD |
6,116 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.2 nH | ±0.2nH | 1 A | - | Unshielded | 80mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
