Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APC30-821K-RC-TR820UH 10% AXIAL POWER CHOKE |
0 |
|
Datasheet
|
APC30 | Axial | Bag | Active | - | - | 820 µH | ±10% | 800 mA | 970mA | - | 661mOhm Max | - | - | - | -55°C ~ 125°C | 23 kHz | - | Through Hole | Axial | 0.470" Dia x 0.920" L (11.94mm x 23.37mm) | - |
|
PC03021-101M-RC100UH 20% POWER CHIP INDUCTOR |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 100 µH | ±20% | 250 mA | - | Unshielded | 2.52Ohm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.130" L x 0.118" W (3.30mm x 3.00mm) | 0.094" (2.40mm) |
|

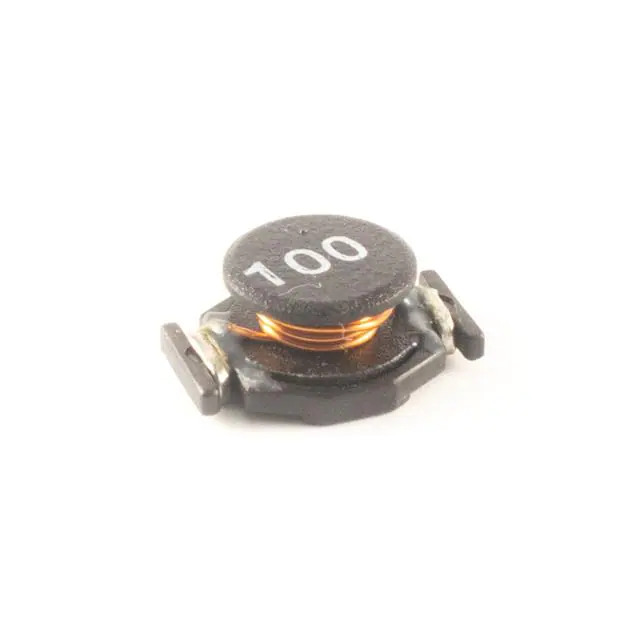

PCHC40-R33M-RC.33UH 20%PWR CHIP HIGH CURRENT |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 330 nH | ±20% | 16 A | 20A | Unshielded | 2mOhm Max | - | 300MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.520" L x 0.390" W (13.21mm x 9.91mm) | 0.250" (6.35mm) |
|
HTC220LL-102L-RC1000UH30% HRZMNT TOROIDAL CHOKE |
0 |
|
Datasheet
|
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 1 mH | ±15% | 2.4 A | - | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.550" (13.97mm) |
|
PCHC128H-221M220UH 20% SMD SHIELDED HI-CURR. |
0 |
|
Datasheet
|
- | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 2.36 A | - | Shielded | 376mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
LS03-R22J-RC.22uH +/-5% Ferrite Core Chip |
0 |
|
Datasheet
|
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 220 nH | ±5% | - | 1.35A | Unshielded | 160mOhm Max | 17 @ 7.9MHz | 1.05GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-R18J-RC.18uH +/-5% Ferrite Core Chip |
0 |
|
Datasheet
|
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 180 nH | ±5% | - | 1.4A | Unshielded | 150mOhm Max | 17 @ 7.9MHz | 1.15GHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-3R3J-RC3.3uH +/-5% Ferrite Core Chip |
0 |
|
Datasheet
|
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±5% | - | 440mA | Unshielded | 1.5Ohm Max | 17 @ 7.9MHz | 84MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
|
|
LS03-3R9J-RC3.9uH +/-5% Ferrite Core Chip |
0 |
|
Datasheet
|
LS03 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.9 µH | ±5% | - | 430mA | Unshielded | 1.6Ohm Max | 17 @ 7.9MHz | 80MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0603 | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
