Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BPSD000504322R2K00FIXED IND 2.2UH 47 MOHM SMD |
3,850 |
|
Datasheet
|
BPSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±10% | - | 2.6A | Unshielded | 47mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

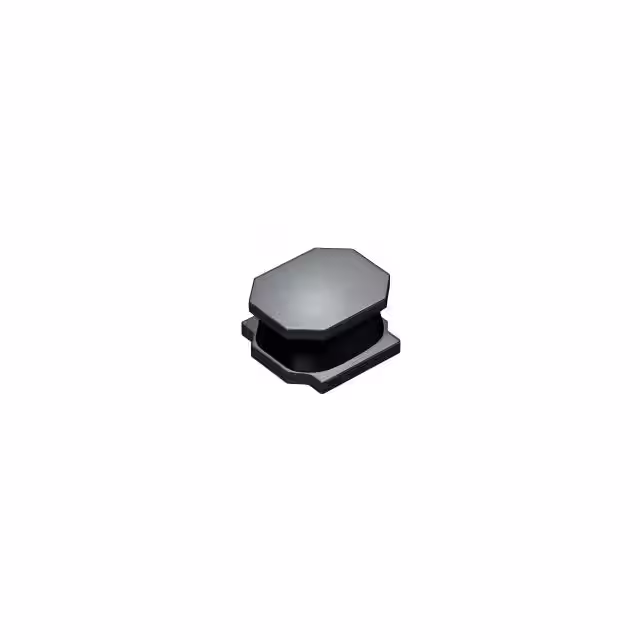

LSXBD6060YEL1R3NFIXED IND 1.3UH 4A 20.8 MOHM SMD |
2,925 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 1.3 µH | ±30% | 4 A | 8A | Shielded | 16mOhm | - | 95MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
HTEP20120H-R47MSRFIXED IND 470NH 3.7A 29MOHM SMD |
2,663 |
|
Datasheet
|
HTEP20120H | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 3.7 A | 4.3A | - | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.049" W (2.10mm x 1.25mm) | 0.031" (0.80mm) |
|

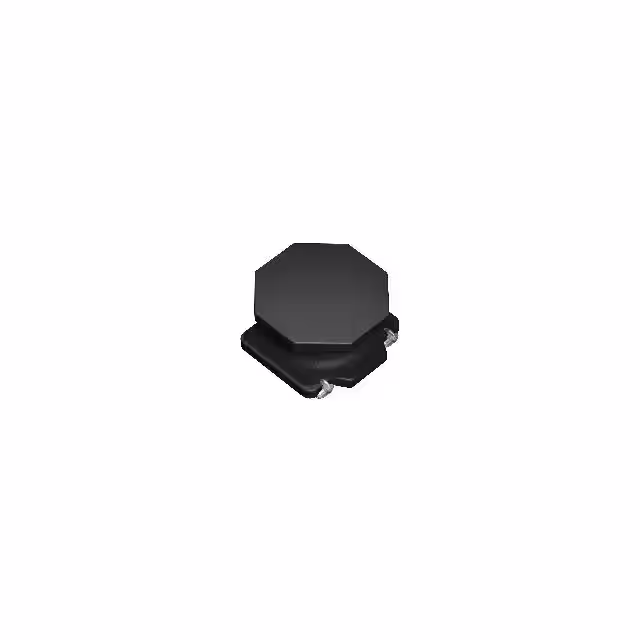

LSDND2020KKT4R7MMFIXED IND 4.7UH 750MA 435MOHM SM |
2,464 |
|
Datasheet
|
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 750 mA | 1.05A | Shielded | 435mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
SPH252010H1R5MTFIXED IND 1.5UH 1.55A 108MOHM SM |
1,900 |
|
Datasheet
|
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.55 A | 2.05A | Shielded | 108mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
744762439AFIXED IND 39UH 60MA 8.5 OHM SMD |
1,809 |
|
Datasheet
|
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±5% | 60 mA | - | Unshielded | 8.5Ohm Max | 15 @ 2.52MHz | 18MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

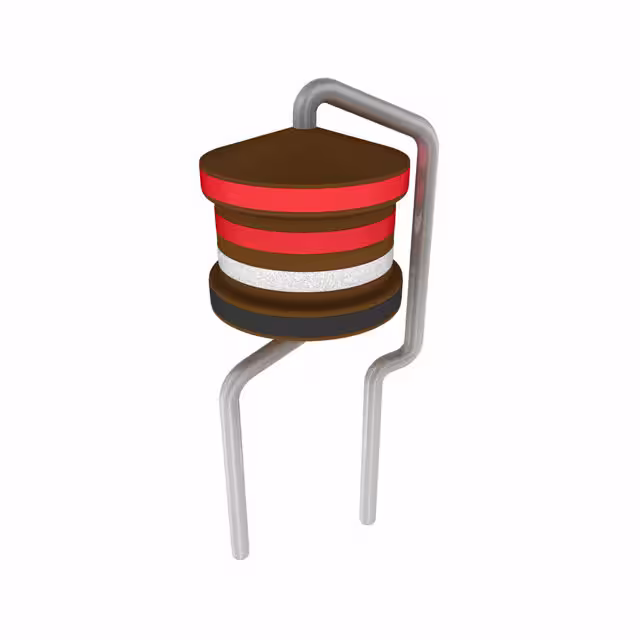

B78148E1221M000FIXED IND 220NH 5.9A 19 MOHM TH |
1,727 |
|
Datasheet
|
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 5.9 A | 12.2A | Unshielded | 19mOhm Max | 55 @ 7.96MHz | 610MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
SDCH1V6045-2R2M-RIND 2.2 UH 9.00A SMT |
1,460 |
|
Datasheet
|
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 4.5 A | 9A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
SPH252012HR47MTFIXED IND 470NH 3A 36 MOHM SMD |
1,233 |
|
Datasheet
|
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 3 A | 4.1A | Shielded | 36mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
 MHQ Series.jpg)
|
MHQ0603P0N9CT000FIXED IND 0.9NH 1A 70 MOHM SMD |
23,759 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.9 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P5N1ST000FIXED IND 5.1NH 350MA 400MOHM SM |
21,639 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 5.1 nH | ±0.3nH | 350 mA | - | Unshielded | 400mOhm Max | 16 @ 500MHz | 5.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P1N2ST000FIXED IND 1.2NH 1A 80 MOHM SMD |
14,979 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.2 nH | ±0.3nH | 1 A | - | Unshielded | 80mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N8ST000FIXED IND 2.8NH 500MA 250MOHM SM |
14,975 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.8 nH | ±0.3nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P1N6ST000FIXED IND 1.6NH 800MA 100MOHM SM |
14,971 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.6 nH | ±0.3nH | 800 mA | - | Unshielded | 100mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N6ST000FIXED IND 2.6NH 500MA 250MOHM SM |
14,931 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.6 nH | ±0.3nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N9ST000FIXED IND 2.9NH 450MA 300MOHM SM |
14,746 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.9 nH | ±0.3nH | 450 mA | - | Unshielded | 300mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N1ST000FIXED IND 2.1NH 700MA 150MOHM SM |
12,490 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.1 nH | ±0.3nH | 700 mA | - | Unshielded | 150mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P0N6CT000FIXED IND 0.6NH 1A 70 MOHM SMD |
12,270 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 0.6 nH | ±0.2nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
AMELA2010S-1R0MTFIXED IND 1UH 3.4A 53 MOHM SMD |
11,498 |
|
Datasheet
|
AMELA2010S | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 1 µH | ±20% | 3.4 A | 4A | Shielded | 53mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
MHQ0603P16NJT000FIXED IND 16NH 180MA 1.7 OHM SMD |
11,469 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 16 nH | ±5% | 180 mA | - | Unshielded | 1.7Ohm Max | 16 @ 500MHz | 2.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
