Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDCH1V6028-4R7M-RIND 4.7 UH 4.00A SMT |
1,095 |
|
Datasheet
|
SDCH1V60 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 3.1 A | 4A | Shielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
RLB0608-151KLFIXED IND 150UH 275MA 2.1 OHM TH |
1,078 |
|
Datasheet
|
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 275 mA | - | Unshielded | 2.1Ohm Max | 50 @ 796kHz | 4.4MHz | - | -40°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.197" Dia (5.00mm) | 0.295" (7.50mm) |
|
ASPI-3012S-3R9N-TFIXED IND 3.9UH 1.24A 145MOHM SM |
1,010 |
|
Datasheet
|
ASPI-3012S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±30% | 1.24 A | 1A | Shielded | 145mOhm Max | - | 61MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
BPSD000504324R7K00FIXED IND 4.7UH 94 MOHM SMD |
15,544 |
|
Datasheet
|
BPSD | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±10% | - | 1.7A | Unshielded | 94mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
PE-0603CD120GTTFIXED IND 12NH 700MA 130MOHM SMD |
13,105 |
|
Datasheet
|
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 700 mA | - | Unshielded | 130mOhm Max | 30 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|

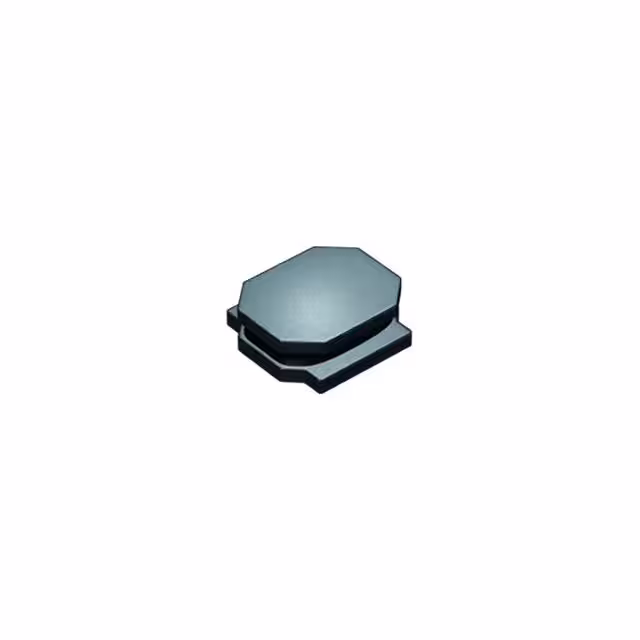

LCXND4040KKL150MDGFIXED IND 15UH 600MA 516MOHM SMD |
10,000 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 600 mA | 540mA | Unshielded | 430mOhm | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LCXND4040KKL220MDGFIXED IND 22UH 500MA 684MOHM SMD |
10,000 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 500 mA | 450mA | Unshielded | 570mOhm | - | 19MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD4040KKL100MFIXED IND 10UH 600MA 456MOHM SMD |
9,942 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 10 µH | ±20% | 600 mA | 560mA | Shielded | 380mOhm | - | 31MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LQW15CN96NJ0ZDFIXED IND 96NH 730MA 0.16OHM SMD |
9,797 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 96 nH | ±5% | 730 mA | - | Unshielded | 160mOhm Max | - | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15CNR18K1ZDFIXED IND 180NH 560MA 0.312OHM |
9,794 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 560 mA | - | Unshielded | 312mOhm Max | - | 1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQW04AN33NH00DFIXED IND 33NH 140MA 1.11OHM SMD |
9,290 |
|
Datasheet
|
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 33 nH | ±3% | 140 mA | - | Unshielded | 1.11Ohm Max | 15 @ 250MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
|
LSXBD4040MKL330MFIXED IND 33UH 420MA 972MOHM SMD |
9,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 420 mA | 400mA | Shielded | 810mOhm | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSXBD4040MKL6R8MFIXED IND 6.8UH 840MA 216MOHM SM |
9,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 840 mA | 900mA | Shielded | 180mOhm | - | 35MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSXBD4040MKL3R3MFIXED IND 3.3UH 980MA 156MOHM SM |
9,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 3.3 µH | ±20% | 980 mA | 1.2A | Shielded | 130mOhm | - | 50MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|

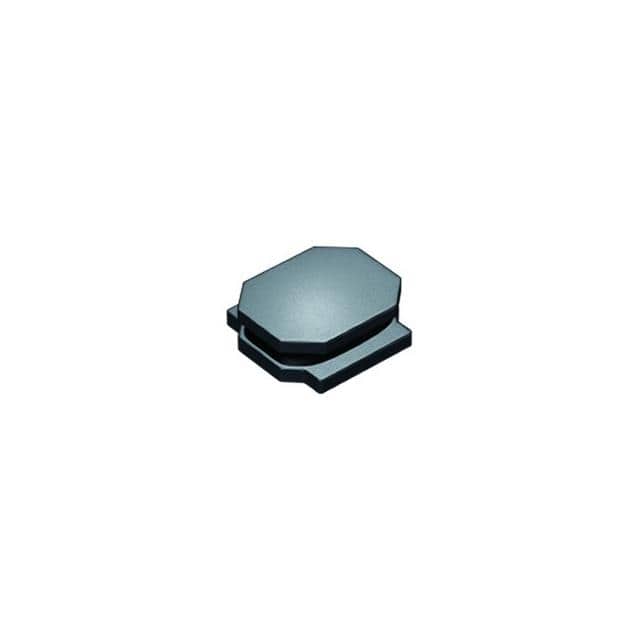

LSXBD4040MKL4R7MFIXED IND 4.7UH 960MA 168MOHM SM |
8,998 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 4.7 µH | ±20% | 960 mA | 1.05A | Shielded | 140mOhm | - | 45MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
|
SDCH1V5020-470M-RIND 47 UH 0.82A SMT |
6,795 |
|
Datasheet
|
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 750 mA | 820mA | Shielded | 610mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
AISC-0603F-1R8J-TFIXED IND 1.8UH 230MA 1.4OHM SMD |
5,404 |
|
Datasheet
|
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 230 mA | - | Unshielded | 1.4Ohm Max | - | 190MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
BPSD000504323R3K00FIXED IND 3.3UH 58 MOHM SMD |
5,260 |
|
Datasheet
|
BPSD | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±10% | - | 2.15A | Unshielded | 58mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

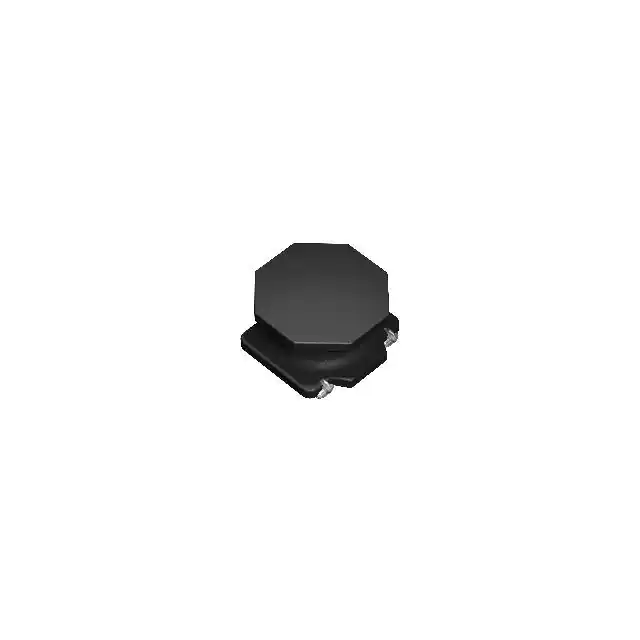

LSDND2020MKT4R7MMFIXED IND 4.7UH 950MA 242MOHM SM |
4,575 |
|
Datasheet
|
LSDN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Metal | 4.7 µH | ±20% | 950 mA | 1.15A | Shielded | 242mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|

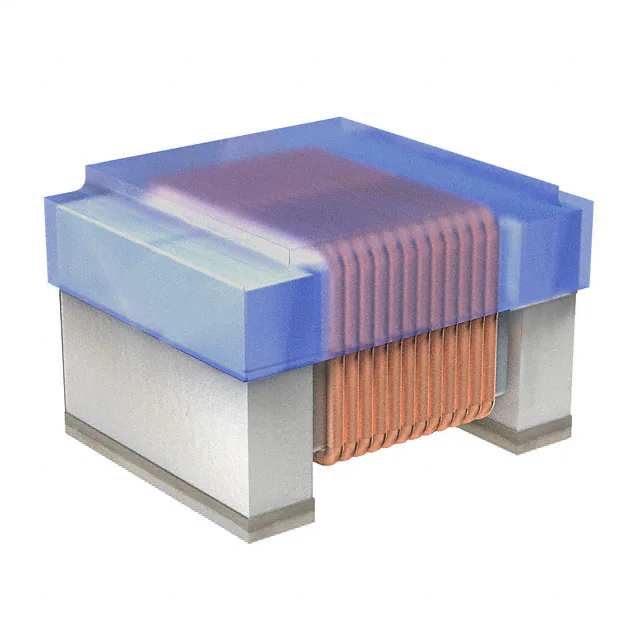

744765112GAFIXED IND 12NH 640MA 120MOHM SMD |
3,886 |
|
Datasheet
|
WE-KI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±2% | 640 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 3.6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
