Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTEX25201T-4R7MSDRFIXED INDUCTOR 4.7UH |
1,928 |
|
Datasheet
|
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

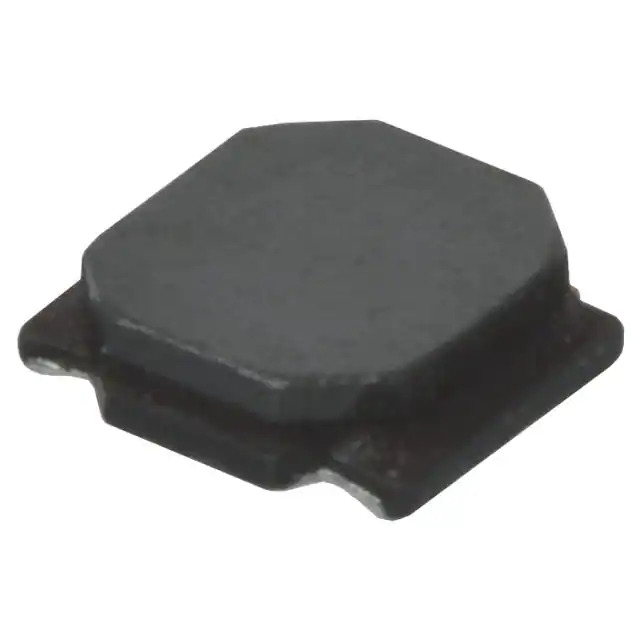

NR3010T1R0NFIXED IND 1UH 1.4A 78 MOHM SMD |
1,781 |
|
Datasheet
|
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.4 A | 1.3A | Shielded | 78mOhm Max | - | 126MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

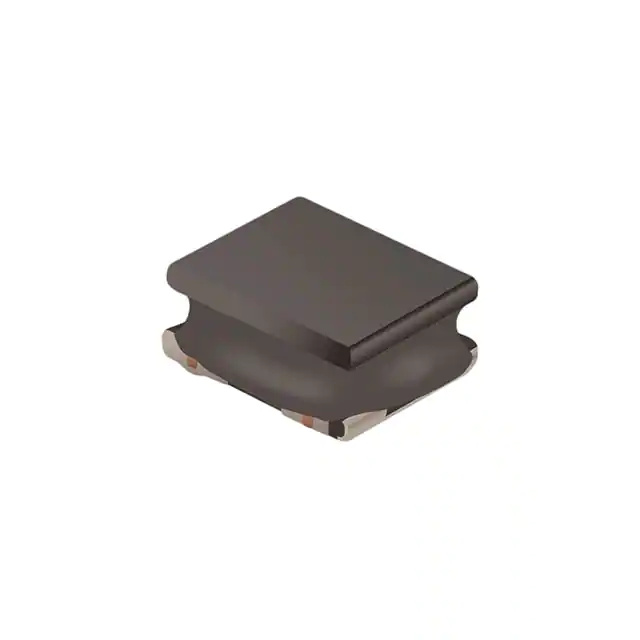

SRN2010TA-1R5YFIXED IND 1.5UH 1.26A 130MOHM SM |
1,677 |
|
Datasheet
|
SRN2010TA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.26 A | 1.46A | Shielded | 130mOhm | 12 @ 1MHz | 140MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

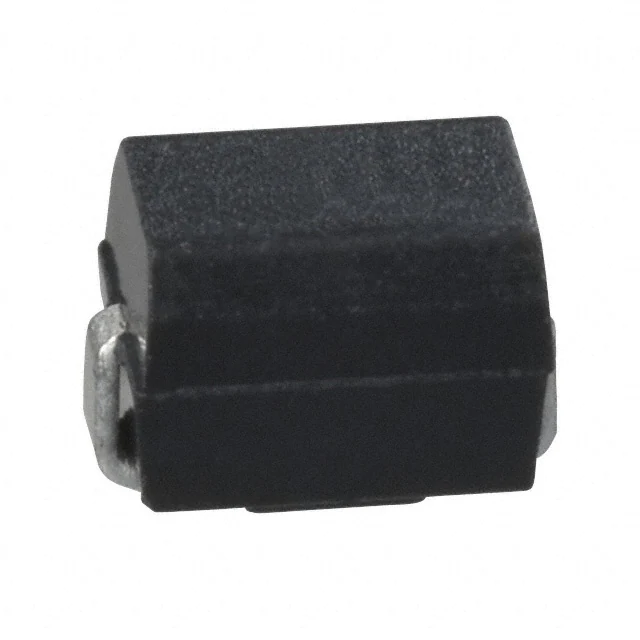

PM1812-2R2J-RCFIXED IND 2.2UH 380MA 700MOHM SM |
1,500 |
|
Datasheet
|
PM1812 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±5% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 55MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
TYA30152R2M-10FIXED IND 2.2UH 2.2A 95 MOHM SMD |
18,770 |
|
Datasheet
|
TYA3015 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 2.2 A | 3.7A | Shielded | 95mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.065" (1.65mm) |
|

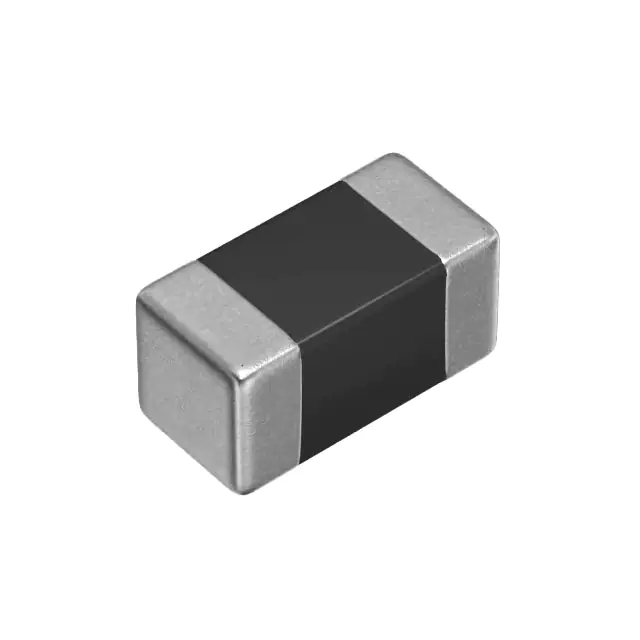

MLP1005MR47DT0S1INDUCTORS FOR POWER CIRCUITS, MU |
15,809 |
|
Datasheet
|
MLP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 600 mA | - | Shielded | 440mOhm Max | - | - | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|
LCXND4040KKL100MDGFIXED IND 10UH 750MA 360MOHM SMD |
13,421 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 750 mA | 620mA | Unshielded | 300mOhm | - | 31MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
MLP1005MR33DT0S1INDUCTORS FOR POWER CIRCUITS, MU |
12,273 |
|
Datasheet
|
MLP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±20% | 700 mA | - | Shielded | 390mOhm Max | - | - | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.030" (0.75mm) |
|

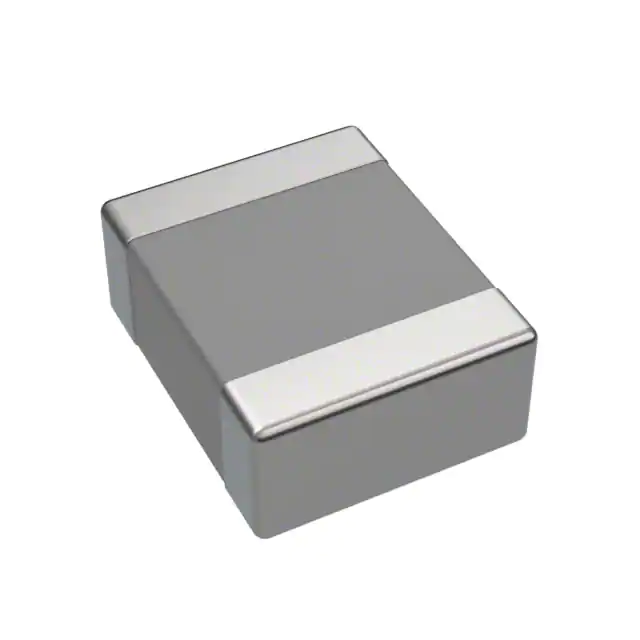

EHEI201608A-1R0M-Q8DGFIXED INDUCTOR |
12,000 |
|
Datasheet
|
EHEI201608A | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HTEX25201T-100MSRFIXED INDUCTOR 10UH |
11,992 |
|
Datasheet
|
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B78148S1224J000FIXED IND 220UH 250MA 3.3 OHM TH |
9,249 |
|
Datasheet
|
BC | Radial | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±5% | 250 mA | - | Unshielded | 3.3Ohm Max | 70 @ 796kHz | 3.7MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

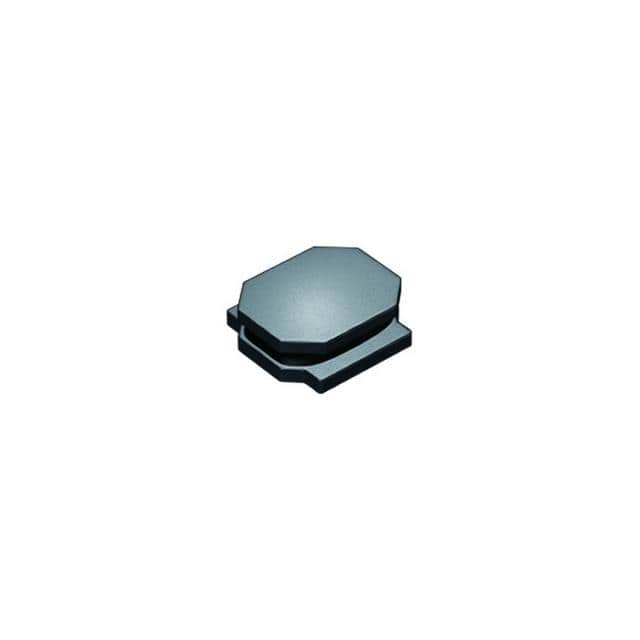

LCXND4040MKL1R0NDGFIXED IND 1UH 2.2A 50.4 MOHM SMD |
8,986 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 2.2 A | 2.8A | Unshielded | 42mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LSXBD4040MKL470MFIXED IND 47UH 370MA 1.2 OHM SMD |
8,973 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 47 µH | ±20% | 370 mA | 350mA | Shielded | 1Ohm | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LCXND4040MKL150MDGFIXED IND 15UH 750MA 312MOHM SMD |
8,721 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 750 mA | 650mA | Unshielded | 260mOhm | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
LCXND4040KKL6R8MDGFIXED IND 6.8UH 1A 240 MOHM SMD |
7,873 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1 A | 800mA | Unshielded | 200mOhm | - | 38MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
PE-0603CD151JTTFIXED IND 150NH 280MA 920MOHM SM |
7,157 |
|
Datasheet
|
0603CD | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 280 mA | - | Unshielded | 920mOhm Max | 28 @ 150MHz | 990MHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.049" W (1.80mm x 1.24mm) | 0.040" (1.02mm) |
|
LCXND4040TKL4R7MDGFIXED IND 4.7UH 1.7A 84 MOHM SMD |
6,895 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.7 A | 2A | Unshielded | 84mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

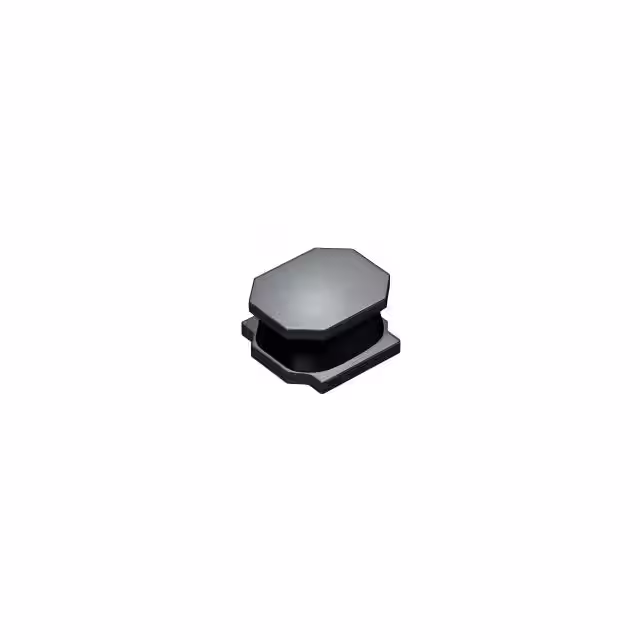

LCXND4040TKL1R5NDGFIXED IND 1.5UH 2.4A 44.4MOHM SM |
6,771 |
|
Datasheet
|
LCXN | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 2.4 A | 3.3A | Unshielded | 37mOhm | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

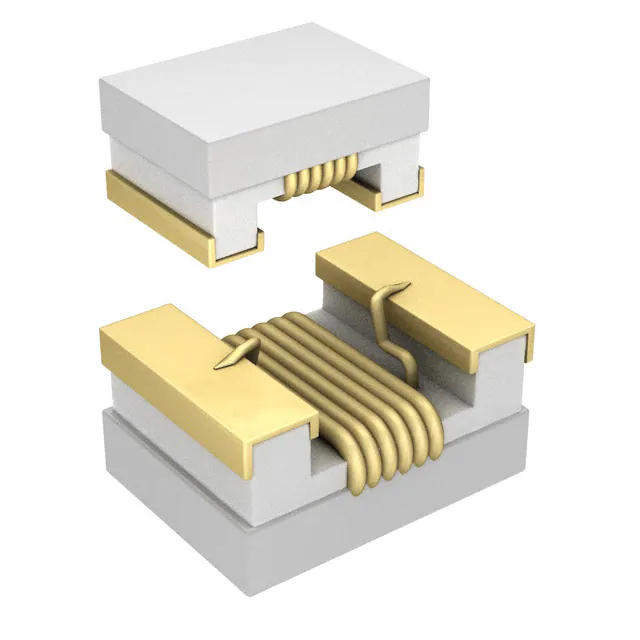

744761227CFIXED IND 270NH 200MA 2.1OHM SMD |
5,983 |
|
Datasheet
|
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 200 mA | - | Unshielded | 2.1Ohm Max | 25 @ 100MHz | 822MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
SWPA3010S100MTFIXED IND 10UH 580MA 520MOHM SMD |
5,880 |
|
Datasheet
|
SWPA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 580 mA | 750mA | Shielded | 520mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
