Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

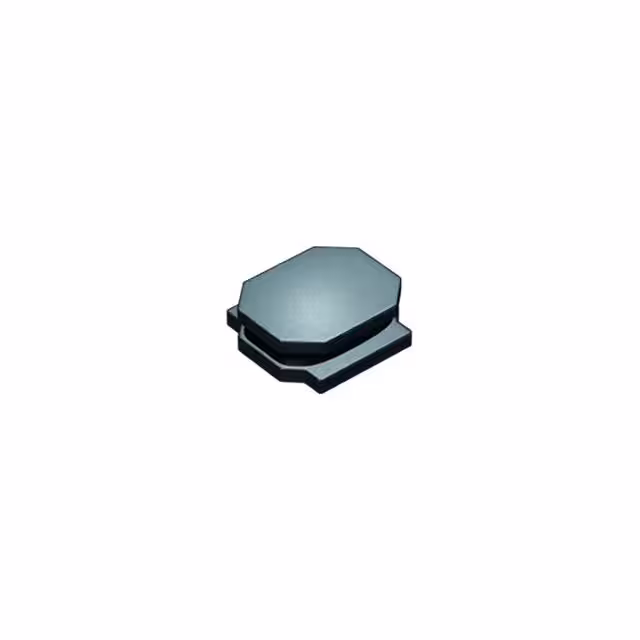

LSXBD4040KKL330MFIXED IND 33UH 300MA 1.848OHM SM |
10,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 33 µH | ±20% | 300 mA | 280mA | Shielded | 1.54Ohm | - | 15MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD4040KKL150MFIXED IND 15UH 510MA 612MOHM SMD |
9,975 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 510 mA | 470mA | Shielded | 510mOhm | - | 24MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD4040KKL220MFIXED IND 22UH 400MA 1.044OHM SM |
9,950 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 22 µH | ±20% | 400 mA | 360mA | Shielded | 870mOhm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
LSXBD4040KKL6R8MFIXED IND 6.8UH 620MA 360MOHM SM |
9,918 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 6.8 µH | ±20% | 620 mA | 740mA | Shielded | 300mOhm | - | 38MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
PM1210-470J-RCFIXED IND 47UH 75MA 7 OHM SMD |
9,675 |
|
Datasheet
|
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 75 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
LQW04AN2N2D00DFIXED IND 2.2NH 1.1A 40MOHM SMD |
8,890 |
|
Datasheet
|
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 2.2 nH | ±0.5nH | 1.1 A | - | Unshielded | 40mOhm Max | 21 @ 250MHz | 12GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
|
AISC-0603F-1R2J-TFIXED IND 1.2UH 260MA 1.1OHM SMD |
7,959 |
|
Datasheet
|
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 260 mA | - | Unshielded | 1.1Ohm Max | - | 370MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
PM1210-5R6J-RCFIXED IND 5.6UH 160MA 1.6OHM SMD |
7,295 |
|
Datasheet
|
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 160 mA | - | Unshielded | 1.6Ohm Max | 30 @ 7.96MHz | 50MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

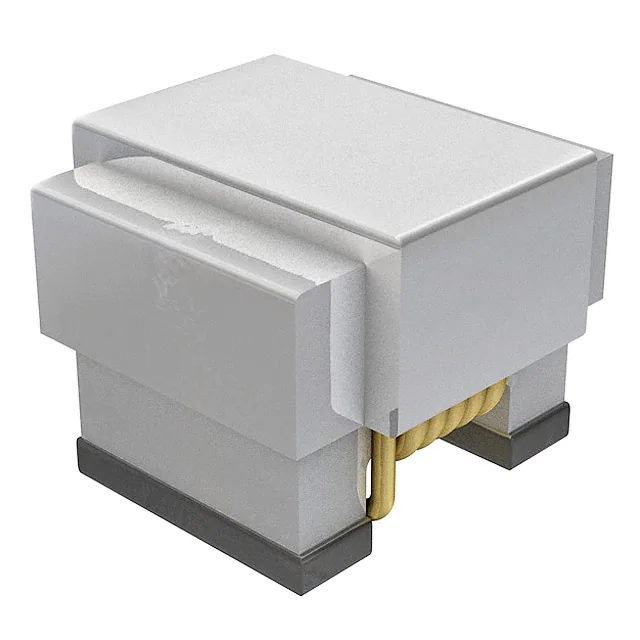

PE-0805CD151JTTFIXED IND 149.4NH 400MA 560 MOHM |
7,265 |
|
Datasheet
|
0805CD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 149.4 nH | ±5% | 400 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 920MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.090" L x 0.066" W (2.29mm x 1.68mm) | 0.062" (1.58mm) |
|
|
AISC-0603F-R33J-TFIXED IND 330NH 510MA 290MOHM SM |
7,145 |
|
Datasheet
|
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±5% | 510 mA | - | Unshielded | 290mOhm Max | - | 730MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
|
PM1210-151J-RCFIXED IND 150UH 50MA 15 OHM SMD |
6,500 |
|
Datasheet
|
PM1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 50 mA | - | Unshielded | 15Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|

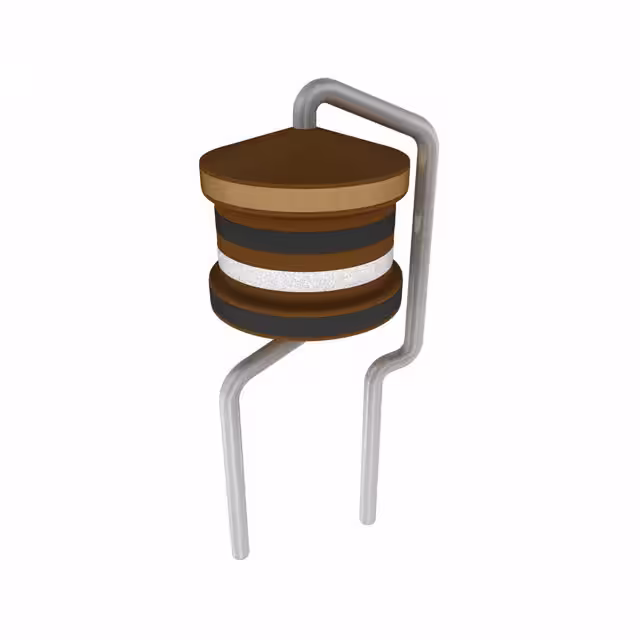

B78148E1101M000FIXED IND 100NH 7.3A 15 MOHM TH |
5,951 |
|
Datasheet
|
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 7.3 A | 17A | Unshielded | 15mOhm Max | 50 @ 7.96MHz | 700MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
SDCL1V4030-4R7M-RIND 4.7 UH 3.2A SMT |
5,795 |
|
Datasheet
|
SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 1.9 A | 3.2A | Shielded | 77mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.118" (3.00mm) |
|
NRH2412T100MNGHVFIXED IND 10UH 450MA 720MOHM SMD |
5,647 |
|
Datasheet
|
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 450 mA | 810mA | Shielded | 720mOhm Max | - | 29MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
744761075AFIXED IND 7.5NH 700MA 110MOHM SM |
5,577 |
|
Datasheet
|
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 28 @ 250MHz | 4.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|

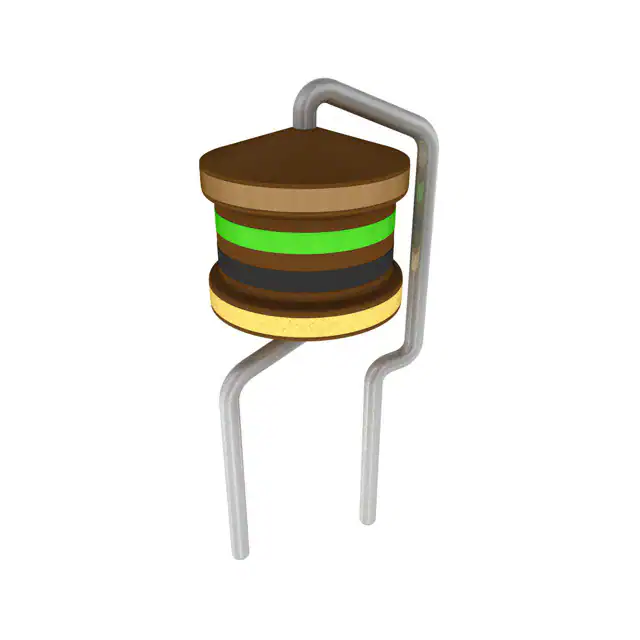

B78148E1104J000FIXED IND 100UH 640MA 1.45OHM TH |
5,467 |
|
Datasheet
|
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 640 mA | 580mA | Unshielded | 1.45Ohm Max | 60 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|

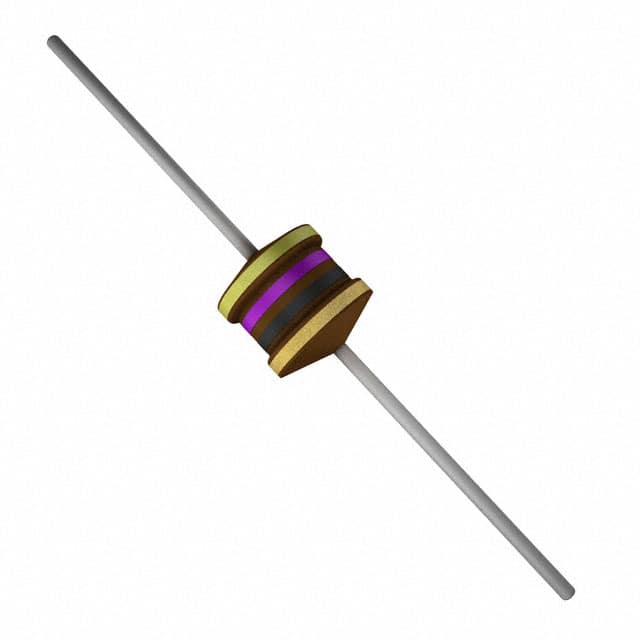

B78108E1473J000FIXED IND 47UH 950MA 680 MOHM TH |
5,105 |
|
Datasheet
|
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 950 mA | 870mA | Unshielded | 680mOhm Max | 40 @ 796kHz | 8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

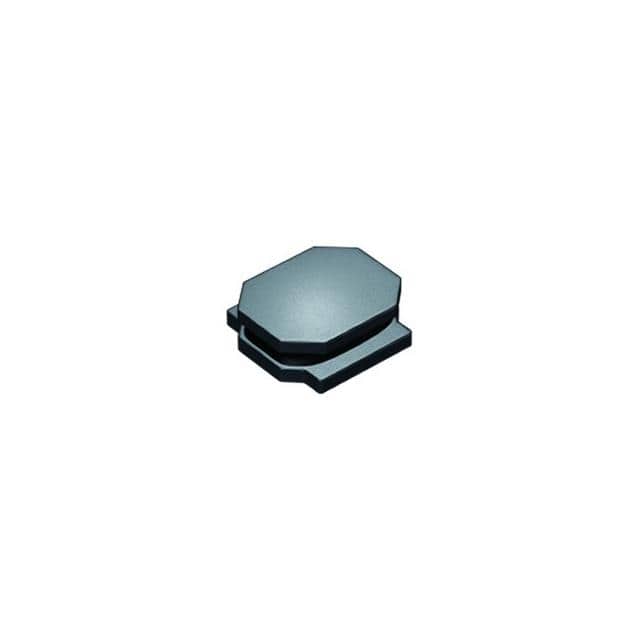

LCXNE2424KKT150MNFIXED IND 15UH 370MA 1.224OHM SM |
4,958 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 370 mA | 470mA | Unshielded | 1.02Ohm | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.039" (1.00mm) |
|
|
AISC-0603F-1R5J-TFIXED IND 1.5UH 240MA 1.3OHM SMD |
4,947 |
|
Datasheet
|
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 240 mA | - | Unshielded | 1.3Ohm Max | - | 340MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|
SPH252012H4R7MTFIXED IND 4.7UH 1.12A 210MOHM SM |
4,759 |
|
Datasheet
|
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.12 A | 1.2A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
