Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV32T-R39J-EFDFIXED IND 390NH 450MA 450MOHM SM |
2,135 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±5% | 450 mA | - | Unshielded | 450mOhm Max | 30 @ 25.2MHz | 250MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
SDER041B-4R7MSFIXED IND 4.7UH 1.9A 131MOHM SMD |
2,052 |
|
Datasheet
|
SDER041B | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.9 A | 1.3A | Shielded | 131mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
AISC-1008HQ-47NJ-TFIXED IND 47NH 1.2A 120 MOHM SMD |
2,048 |
|
Datasheet
|
AISC-1008HQ | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 1.2 A | - | Unshielded | 120mOhm Max | 75 @ 350MHz | 1.45GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
AISC-1008-R047G-TFIXED IND 47NH 1A 160 MOHM SMD |
0 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 1 A | - | Unshielded | 160mOhm Max | 65 @ 350MHz | 1.5GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-1R0G-TFIXED IND 1UH 370MA 1.8 OHM SMD |
2,000 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±2% | 370 mA | - | Unshielded | 1.8Ohm Max | 35 @ 50MHz | 270MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

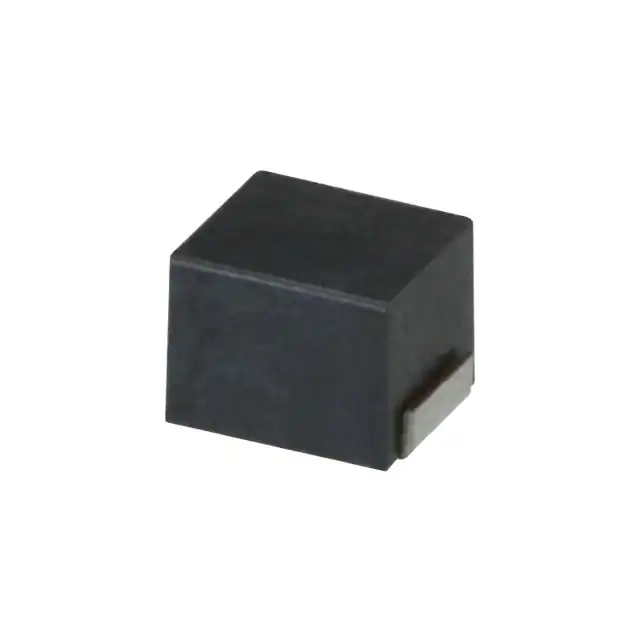

NLV25T-012J-EFDFIXED IND 12NH 500MA 270MOHM SMD |
2,000 |
|
Datasheet
|
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 nH | ±5% | 500 mA | - | Unshielded | 270mOhm Max | 15 @ 100MHz | 2.05GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLV32T-6R8J-EFDFIXED IND 6.8UH 180MA 1.8OHM SMD |
2,000 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 180 mA | - | Unshielded | 1.8Ohm Max | 30 @ 7.96MHz | 40MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
-2,00mm.jpg)
|
LB3218T680KVFIXED IND 68UH 145MA 1.937OHM SM |
2,000 |
|
- |
LB | 1207 (3218 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 68 µH | ±10% | 145 mA | - | Unshielded | 1.937Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1207 | 0.126" L x 0.071" W (3.20mm x 1.80mm) | 0.079" (2.00mm) |
.jpg)
|
LQW2UAS56NJ0CLFIXED IND 56NH 1A 180 MOHM SMD |
2,000 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|

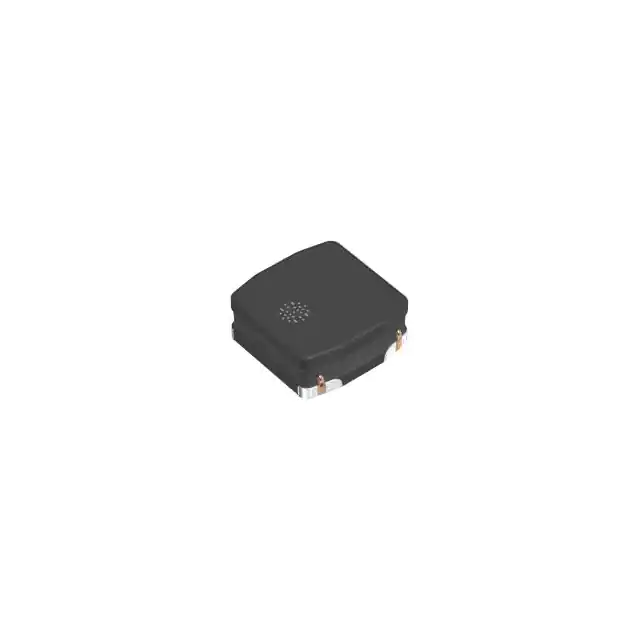

VLS3012CX-1R5M-1FIXED IND 1.5UH SMD |
2,000 |
|
Datasheet
|
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
MLP2012V1R5MT0S1FIXED IND 1.5UH 800MA 300MOHM SM |
1,986 |
|
Datasheet
|
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 800 mA | - | Shielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
WCLA2520V1-220-RCHIP IND 22.0UH 0.26A SMT 2 PAD |
1,975 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 260 mA | - | Unshielded | 1.96Ohm Max | 12 @ 2.52MHz | 18MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
AISC-1008-R56G-TFIXED IND 560NH 400MA 1.33OHM SM |
1,974 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±2% | 400 mA | - | Unshielded | 1.33Ohm Max | 50 @ 100MHz | 390MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
WCLA2520V1-2R2-RCHIP IND 2.2UH 0.775A SMT 2 PAD |
1,973 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 775 mA | - | Unshielded | 210mOhm Max | 12 @ 7.96MHz | 78MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|
|
AISC-1008HQ-33NJ-TFIXED IND 33NH 1.3A 90 MOHM SMD |
1,890 |
|
Datasheet
|
AISC-1008HQ | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±5% | 1.3 A | - | Unshielded | 90mOhm Max | 75 @ 350MHz | 1.7GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
WCLA2520V1-100-RCHIP IND 10.0UH 0.392A SMT 2 PA |
1,875 |
|
Datasheet
|
WCLA2520V1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 392 mA | - | Unshielded | 860mOhm Max | 12 @ 2.52MHz | 28MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.098" W (2.92mm x 2.50mm) | 0.083" (2.10mm) |
|

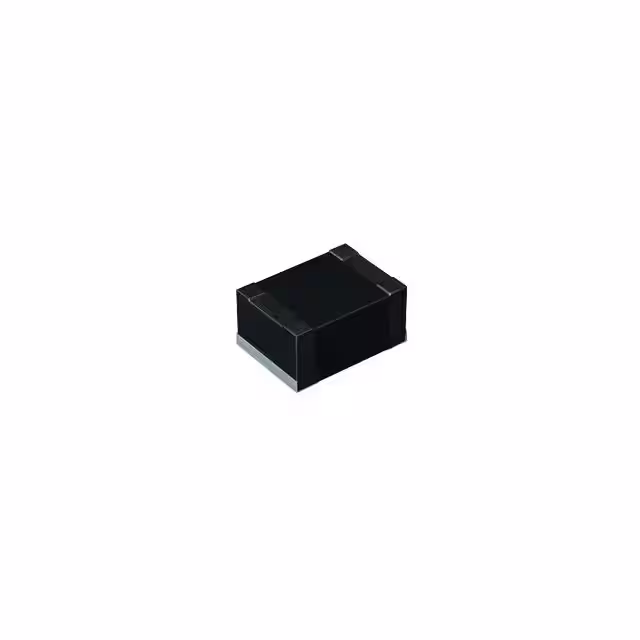

LSQPB160807T100MFIXED IND 10UH 220MA 2.6 OHM SMD |
1,866 |
|
Datasheet
|
LSQP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 220 mA | 170mA | Unshielded | 2.6Ohm Max | - | 45MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
-Unshielded-Inductor.jpg)
|

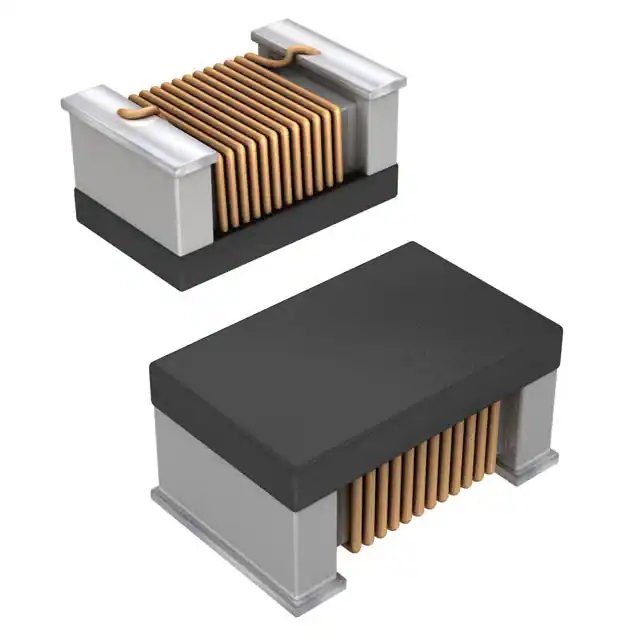

IMC0805ER2N7S01FIXED IND 2.7NH 800MA 80MOHM SMD |
1,833 |
|
Datasheet
|
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.3nH | 800 mA | - | Unshielded | 80mOhm Max | 35 @ 1GHz | 6GHz | - | -40°C ~ 105°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|

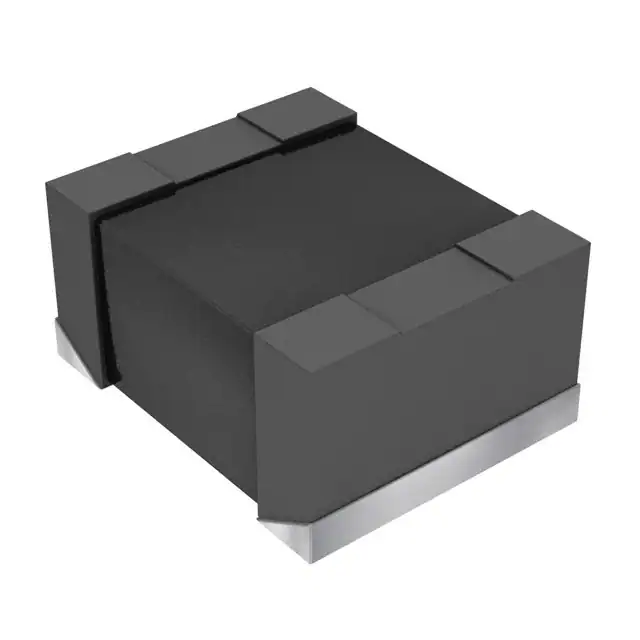

MBKK1608H3R3MFIXED IND 3.3UH 600MA 512MOHM SM |
1,825 |
|
Datasheet
|
MCOIL™, MB, H Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 600 mA | 450mA | Shielded | 512mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW2UAS3R9J0CLFIXED IND 3.9UH 260MA 3.6OHM SMD |
1,818 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 3.9 µH | ±5% | 260 mA | - | Unshielded | 3.6Ohm Max | 20 @ 25MHz | 70MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
