Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0805-R22G-TFIXED IND 220NH 400MA 1.1OHM SMD |
5,886 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 400 mA | - | Unshielded | 1.1Ohm Max | 45 @ 250MHz | 850MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
SDCL1V2512-1R0N-RIND 1.0 UH 2.80A SMT |
5,719 |
|
Datasheet
|
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 2.4 A | 2.8A | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
AISC-0805-R27G-TFIXED IND 270NH 350MA 1 OHM SMD |
5,710 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±2% | 350 mA | - | Unshielded | 1Ohm Max | 38 @ 250MHz | 680MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |

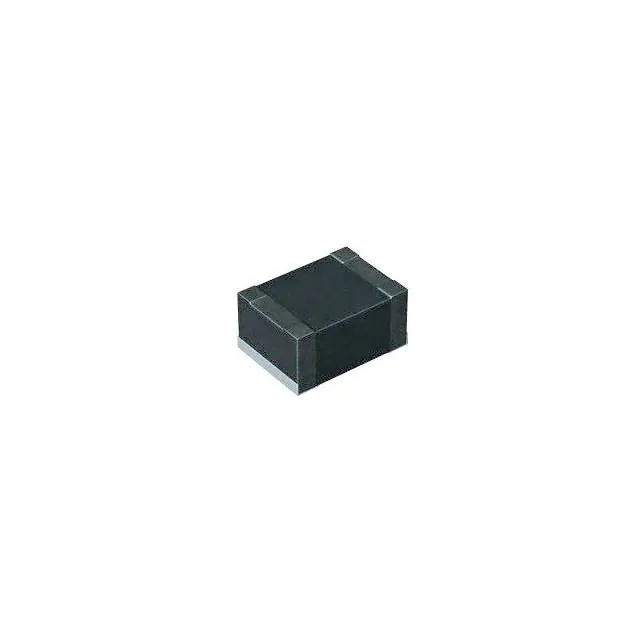

-BR-Series.jpg)
|
BRC2518T1R5MFIXED IND 1.5UH 1.3A 80 MOHM SMD |
5,498 |
|
Datasheet
|
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.3 A | 2.1A | Unshielded | 80mOhm | - | 230MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
AISC-1008-R68J-TFIXED IND 680NH 400MA 1.47OHM SM |
5,405 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 400 mA | - | Unshielded | 1.47Ohm Max | 45 @ 100MHz | 360MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

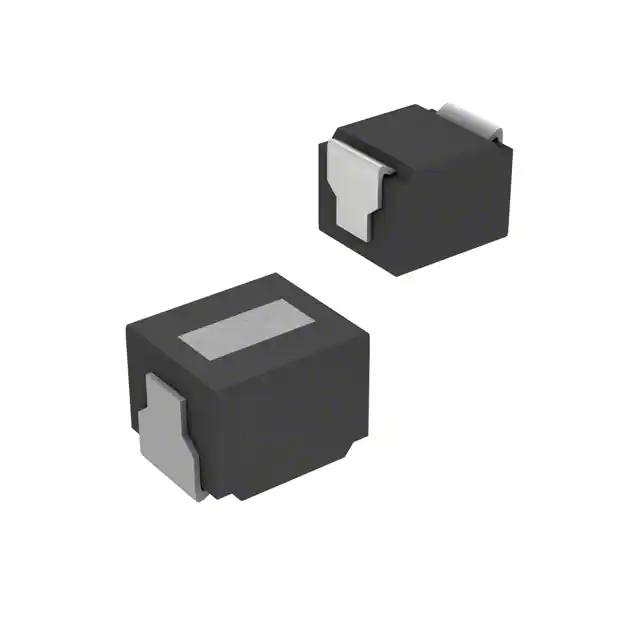

CM322522-151KLFIXED IND 150UH 50MA 15 OHM SMD |
5,169 |
|
Datasheet
|
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 50 mA | - | Unshielded | 15Ohm Max | 20 @ 796kHz | 8MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
|
AISC-0402HP-4N7J-TFIXED IND 4.7NH 1.4A 75 MOHM SMD |
4,976 |
|
Datasheet
|
AISC-0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±5% | 1.4 A | - | Unshielded | 75mOhm Max | 20 @ 250MHz | 6.85GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
AISC-1008-R10J-TFIXED IND 100NH 650MA 560MOHM SM |
4,000 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 650 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|

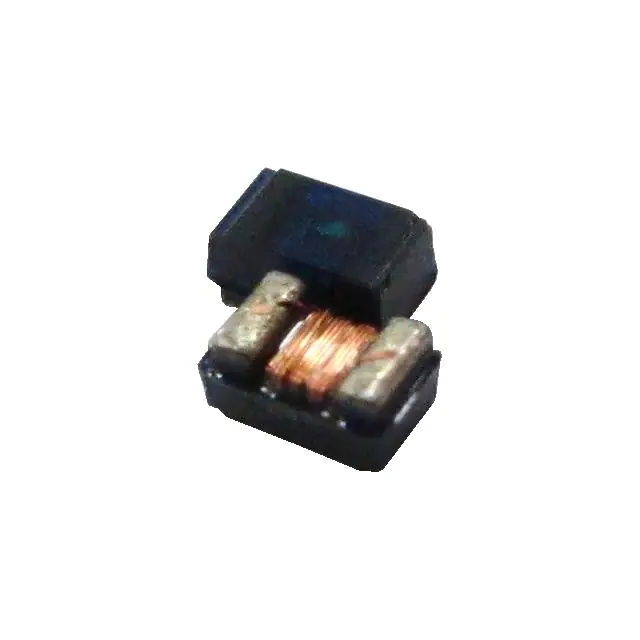

BWLD001810102R2K00INDUCTOR RF |
4,000 |
|
Datasheet
|
BWLD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | - | 580mA | Unshielded | 560mOhm | 16 @ 7.96MHz | 82MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.071" L x 0.039" W (1.80mm x 1.00mm) | 0.041" (1.05mm) |
|
|
BWLD00241715100K00INDUCTOR RF |
3,985 |
|
Datasheet
|
BWLD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | - | 290mA | Unshielded | 900mOhm | 18 @ 2.52MHz | 25MHz | - | -25°C ~ 105°C | 2.52 MHz | - | Surface Mount | - | 0.094" L x 0.068" W (2.40mm x 1.72mm) | 0.060" (1.52mm) |
|

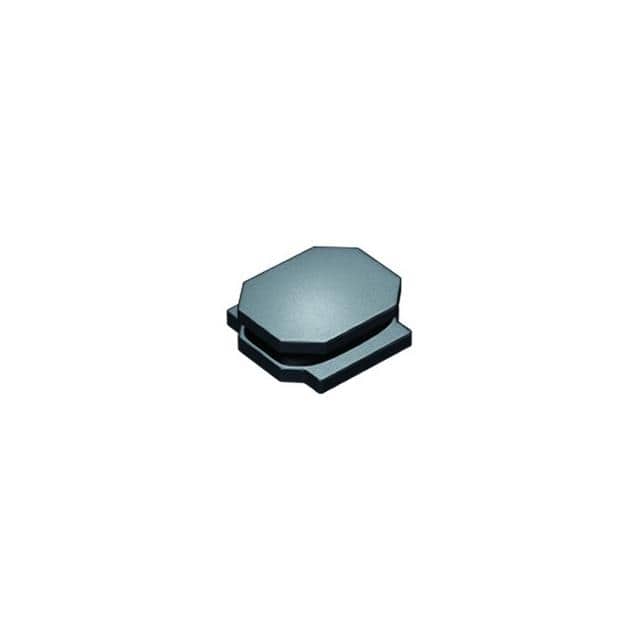

LSXPD3030MKT1R0NFIXED IND 1UH 1.6A 78 MOHM SMD |
3,940 |
|
Datasheet
|
LSXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.6 A | 2.5A | Unshielded | 65mOhm | - | 110MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
NLFV25T-3R3M-EFFIXED IND 3.3UH 280MA 240MOHM SM |
3,900 |
|
Datasheet
|
NLFV | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 280 mA | - | Shielded | 240mOhm Max | - | - | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

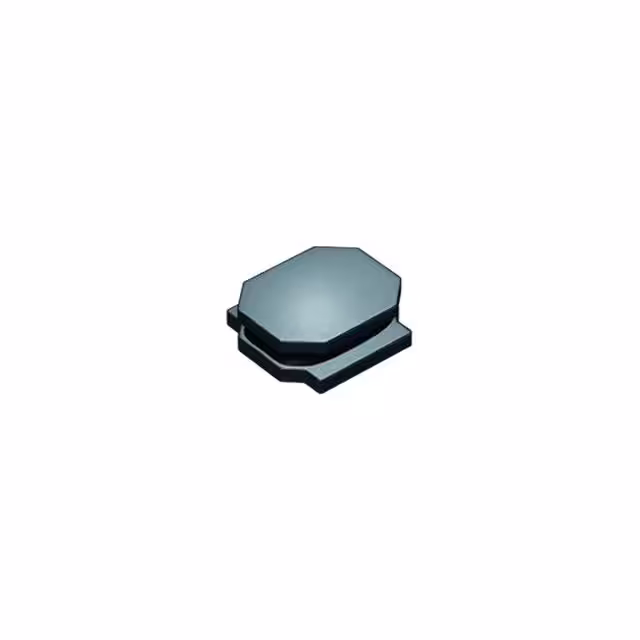

LSXPD3030MKT4R7MFIXED IND 4.7UH 850MA 228MOHM SM |
3,880 |
|
Datasheet
|
LSXP | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 850 mA | 1.25A | Unshielded | 190mOhm | - | 48MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
-BR-Series.jpg)
|
BRFL2518T1R0MFIXED IND 1UH 1.2A 117 MOHM SMD |
3,873 |
|
Datasheet
|
BR, FL Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.2 A | 1.2A | Unshielded | 117mOhm Max | - | 130MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.039" (1.00mm) |
|

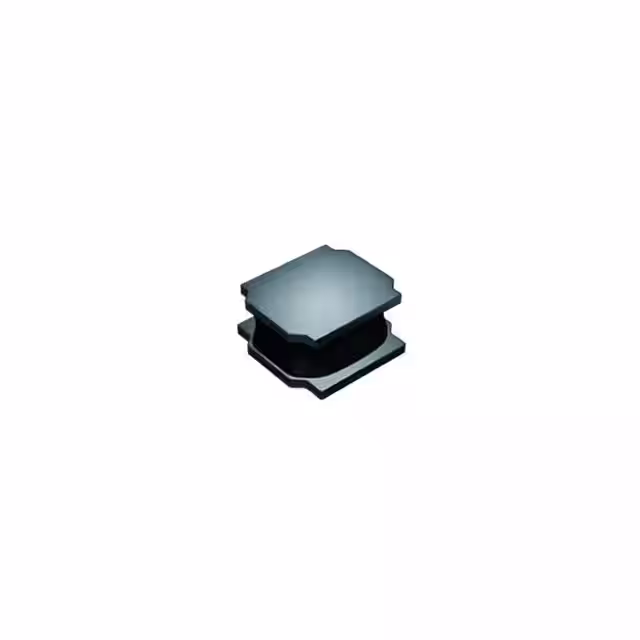

LSXND3030QKT150MNGFIXED IND 15UH 580MA 390MOHM SMD |
3,529 |
|
Datasheet
|
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 680 mA | 580mA | Shielded | 390mOhm Max | - | 23MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
SDER041H-4R7MSFIXED IND 4.7UH 2.3A 83MOHM SMD |
3,526 |
|
Datasheet
|
SDER041H | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.3 A | 1.85A | Shielded | 83mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
BRC2518T2R2MFIXED IND 2.2UH 1A 156 MOHM SMD |
3,458 |
|
Datasheet
|
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.8A | Unshielded | 156mOhm Max | - | 200MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
E.JPG)
|
VLS2010ET-100MFIXED IND 10UH 470MA 936MOHM SMD |
3,430 |
|
Datasheet
|
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 10 µH | ±20% | 470 mA | 470mA | Shielded | 936mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AISC-1008-R75J-TFIXED IND 750NH 360MA 1.54OHM SM |
3,260 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 750 nH | ±5% | 360 mA | - | Unshielded | 1.54Ohm Max | 45 @ 100MHz | 360MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-R91J-TFIXED IND 910NH 380MA 1.68OHM SM |
3,180 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 910 nH | ±5% | 380 mA | - | Unshielded | 1.68Ohm Max | 35 @ 50MHz | 295MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
