Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCL3225-1R2-RFIXED IND 1.2UH 450MA 300MOHM SM |
1,890 |
|
Datasheet
|
WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 µH | ±5% | 450 mA | - | Unshielded | 300mOhm Max | 12 @ 7.96MHz | 210MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|
AISC-0805-R0033J-TFIXED IND 3.3NH 600MA 80MOHM SMD |
1,881 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±5% | 600 mA | - | Unshielded | 80mOhm Max | 30 @ 1.5GHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
NLV32T-056J-EFDFIXED IND 56NH 450MA 330MOHM SMD |
1,821 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 nH | ±5% | 450 mA | - | Unshielded | 330mOhm Max | 26 @ 100MHz | 1.1GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
SDER031T-220MSFIXED IND 22UH 600MA 850MOHM SMD |
1,820 |
|
Datasheet
|
SDER031T | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 600 mA | 430mA | Shielded | 850mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
AISC-0805-R56J-TFIXED IND 560NH 230MA 1.9OHM SMD |
1,801 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 230 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 320MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
WCL3225-6R8-RFIXED IND 6.8UH 310MA 1.5OHM SMD |
1,794 |
|
Datasheet
|
WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 µH | ±5% | 310 mA | - | Unshielded | 1.5Ohm Max | 12 @ 7.96MHz | 35MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|
NRH3010T2R2MNFIXED IND 2.2UH 1.3A 99.6MOHM SM |
1,790 |
|
- |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.3 A | 1.3A | Shielded | 99.6mOhm Max | - | 86MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
NLV32T-033J-EFDFIXED IND 33NH 450MA 240MOHM SMD |
1,746 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 nH | ±5% | 450 mA | - | Unshielded | 240mOhm Max | 25 @ 100MHz | 1.4GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
.jpg)
|
LQM18PN2R2MDHDFIXED IND 2.2UH 650MA 475MOHM SM |
1,706 |
|
Datasheet
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 650 mA | 250mA | Shielded | 475mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.030" (0.75mm) |
|

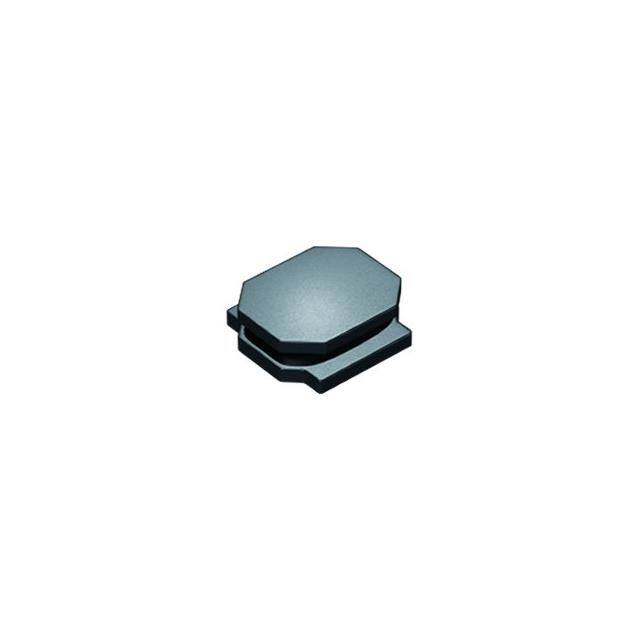

LSXNE3030KKT6R8MNFIXED IND 6.8UH 745MA 300MOHM SM |
1,700 |
|
Datasheet
|
LSXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 745 mA | 700mA | Shielded | 300mOhm Max | - | 44MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|

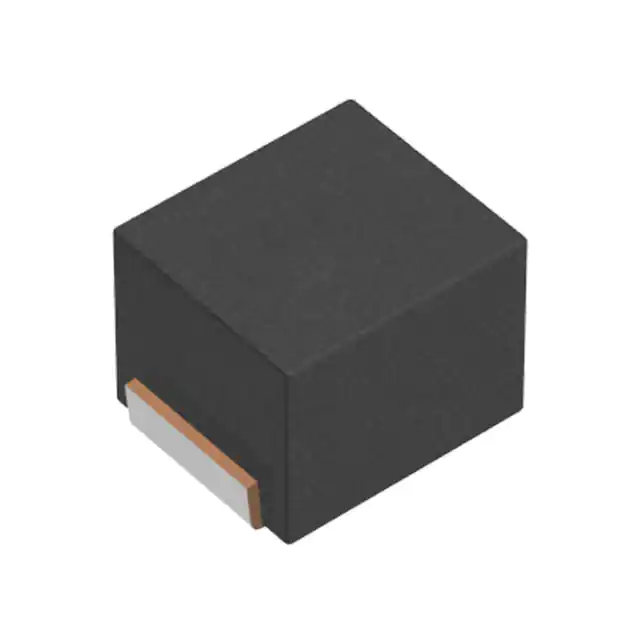

NLCV25T-2R2M-EFDFIXED IND 2.2UH 390MA 650MOHM SM |
1,650 |
|
Datasheet
|
NLCV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 390 mA | - | Unshielded | 650mOhm Max | 20 @ 7.96MHz | 95MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
NLCV25T-3R3M-EFDFIXED IND 3.3UH 340MA 845MOHM SM |
1,600 |
|
Datasheet
|
NLCV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 340 mA | - | Unshielded | 845mOhm Max | 20 @ 7.96MHz | 55MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
MLF1005GR39JT000FIXED IND 390NH 50MA 410MOHM SMD |
1,580 |
|
Datasheet
|
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±5% | 50 mA | - | Shielded | 410mOhm Max | 30 @ 10MHz | 210MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
WCL3225-2R2-RFIXED IND 2.2UH 450MA 600MOHM SM |
1,340 |
|
Datasheet
|
WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.2 µH | ±5% | 450 mA | - | Unshielded | 600mOhm Max | 12 @ 7.96MHz | 175MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|
|
NLV32T-R18J-EFDFIXED IND 180NH 450MA 280MOHM SM |
1,313 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±5% | 450 mA | - | Unshielded | 280mOhm Max | 30 @ 25.2MHz | 400MHz | AEC-Q200 | -40°C ~ 105°C | 25.2 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
SWPA252012S2R2MTFIXED IND 2.2UH 1.15A 216MOHM SM |
1,290 |
|
Datasheet
|
SWPA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.15 A | 2.07A | Shielded | 216mOhm Max | - | 69MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
AIML-1206-3R3K-TFIXED IND 3.3UH 50MA 600MOHM SMD |
60,616 |
|
Datasheet
|
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 3.3 µH | ±10% | 50 mA | - | Shielded | 600mOhm Max | 50 @ 10MHz | 49MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
CPI0603G2R2R-10MULTILAYER FERRITE CHIP POWER IN |
27,865 |
|
Datasheet
|
CPI0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 750 mA | - | Unshielded | 380mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-2,00x1,60x,80mm.jpg)
|
CIGT201608EHR47MNEFIXED IND 470NH 4.3A 27MOHM SMD |
20,856 |
|
Datasheet
|
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4.3 A | 4.6A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.031" (0.80mm) |
|
CM322522-470JLFIXED IND 47UH 75MA 7 OHM SMD |
19,015 |
|
Datasheet
|
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 75 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
