Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AISC-0603-R10J-TFIXED IND 100NH 260MA 660MOHM SM |
5,484 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 260 mA | - | Unshielded | 660mOhm Max | 31 @ 150MHz | 1.8GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0603-R0062J-TFIXED IND 6.2NH 700MA 95MOHM SMD |
5,340 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±5% | 700 mA | - | Unshielded | 95mOhm Max | 29 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0603-R082J-TFIXED IND 82NH 300MA 500MOHM SMD |
5,267 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 34 @ 150MHz | 2GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
-BR-Series.jpg)
|
BRL2012TR47MFIXED IND 470NH 1.05A 117MOHM SM |
5,195 |
|
Datasheet
|
BR, L Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 1.05 A | 1.1A | Unshielded | 117mOhm Max | - | 350MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
AISC-0603-R0033J-TFIXED IND 3.3NH 850MA 59MOHM SMD |
4,689 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 nH | ±5% | 850 mA | - | Unshielded | 59mOhm Max | 25 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|

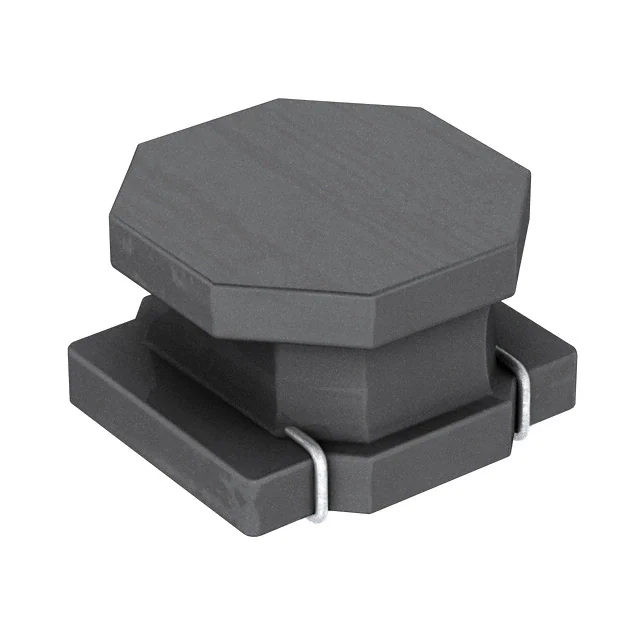

MDKK1616T100MMFIXED IND 10UH 450MA 1.12OHM SMD |
4,681 |
|
Datasheet
|
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 450 mA | 800mA | Shielded | 1.12Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.047" (1.20mm) |
|
MLD2012SR47TTD25FIXED IND 470NH 1.2A 120MOHM SMD |
4,000 |
|
Datasheet
|
MLD | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.2 A | - | Shielded | 120mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
-BR-Series.jpg)
|
BRC2016T470KFIXED IND 47UH 210MA 2.86OHM SMD |
3,813 |
|
Datasheet
|
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 210 mA | 210mA | Unshielded | 2.86Ohm Max | - | 11MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LQW18AN75NG8ZDFIXED IND 75NH 590MA 0.41OHM SMD |
3,751 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 75 nH | ±2% | 590 mA | - | Unshielded | 410mOhm Max | 28 @ 150MHz | 2.28GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN58NG8ZDFIXED IND 58NH 700MA 0.3OHM SMD |
3,658 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 58 nH | ±2% | 700 mA | - | Unshielded | 300mOhm Max | 35 @ 200MHz | 2.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
1210HS-563EKFSFIXED IND 56UH 85MA 4.9 OHM SMD |
3,425 |
|
Datasheet
|
1210HS | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 85 mA | - | Unshielded | 4.9Ohm | 25 @ 2.52MHz | 13MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 | 0.138" L x 0.110" W (3.50mm x 2.80mm) | 0.094" (2.40mm) |
|
LQM21NNR39K10DFIXED IND 390NH 200MA 530MOHM SM |
3,371 |
|
Datasheet
|
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 390 nH | ±10% | 200 mA | - | Shielded | 530mOhm Max | 25 @ 25MHz | 165MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
AISC-0603-R015J-TFIXED IND 15NH 550MA 150MOHM SMD |
3,315 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 550 mA | - | Unshielded | 150mOhm Max | 37 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0603-R12J-TFIXED IND 120NH 240MA 750MOHM SM |
3,000 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 240 mA | - | Unshielded | 750mOhm Max | 32 @ 150MHz | 1.6GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
MDKK1616T3R3MMFIXED IND 3.3UH 650MA 515MOHM SM |
2,571 |
|
Datasheet
|
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 3.3 µH | ±20% | 650 mA | 1.15A | Shielded | 515mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.065" L x 0.065" W (1.64mm x 1.64mm) | 0.039" (1.00mm) |
|
|
BRC2016T680KFIXED IND 68UH 190MA 3.64OHM SMD |
2,517 |
|
Datasheet
|
BR, C Type | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 190 mA | 200mA | Unshielded | 3.64Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
SDCH1V5020-331M-RIND 330 UH 0.27A SMT |
2,456 |
|
Datasheet
|
SDCH1V50 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 250 mA | 270mA | Shielded | 3.68Ohm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
MDJE2020T1R0MMFIXED IND 1UH 1.8A 121 MOHM SMD |
2,408 |
|
Datasheet
|
MCOIL™, MD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 1.8 A | 3.1A | Shielded | 121mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.037" (0.95mm) |
|
NLV32T-150J-EFDFIXED IND 15UH 130MA 2.8 OHM SMD |
2,000 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 130 mA | - | Unshielded | 2.8Ohm Max | 30 @ 2.52MHz | 20MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

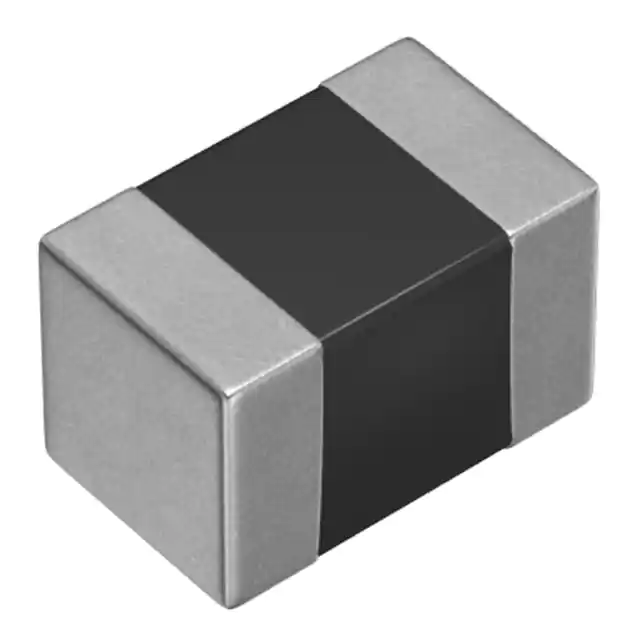

MLF2012DR82KTD25FIXED IND 820NH 150MA 650MOHM SM |
1,995 |
|
Datasheet
|
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 820 nH | ±10% | 150 mA | - | Shielded | 650mOhm Max | 25 @ 25MHz | 130MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
