Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCXNE3030MKT150MNFIXED IND 15UH 530MA 540MOHM SMD |
3,767 |
|
Datasheet
|
LCXN | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 570 mA | 530mA | Unshielded | 450mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
SDER031T-4R7MSFIXED IND 4.7UH 1.3A 199MOHM SMD |
3,744 |
|
Datasheet
|
SDER031T | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.3 A | 900mA | Shielded | 199mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
AISC-0402-6N2J-TFIXED IND 6.2NH 760MA 83MOHM SMD |
3,718 |
|
Datasheet
|
AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.2 nH | ±5% | 760 mA | - | Unshielded | 83mOhm Max | 23 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
SDER031B-4R7MSFIXED IND 4.7UH 1.43A 221MOHM SM |
3,652 |
|
Datasheet
|
SDER031B | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.43 A | 1.53A | Shielded | 221mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
HTEN20161T-1R0MDRFIXED IND 1UH SMD |
3,650 |
|
Datasheet
|
HTEN20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | - | - | Shielded | - | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDER031T-2R2MSFIXED IND 2.2UH 1.7A 107MOHM SMD |
3,500 |
|
Datasheet
|
SDER031T | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.7 A | 1.44A | Shielded | 107mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
HMLE20161B-R47MDRFIXED IND 470NH 4.2A 35MOHM SMD |
3,462 |
|
Datasheet
|
HMLE20161B | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 4.2 A | 3.6A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
AISC-0603-R056G-TFIXED IND 56NH 360MA 350MOHM SMD |
3,106 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 360 mA | - | Unshielded | 350mOhm Max | 38 @ 200MHz | 2.4GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
744761116AFIXED IND 16NH 700MA 170MOHM SMD |
2,943 |
|
Datasheet
|
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 16 nH | ±5% | 700 mA | - | Unshielded | 170mOhm Max | 34 @ 250MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
|
AISC-0603-R010G-TFIXED IND 10NH 600MA 130MOHM SMD |
2,856 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±2% | 600 mA | - | Unshielded | 130mOhm Max | 30 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0603-R033G-TFIXED IND 33NH 470MA 210MOHM SMD |
2,500 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 470 mA | - | Unshielded | 210mOhm Max | 40 @ 250MHz | 3.2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
NLV32T-R10J-EFDFIXED IND 100NH 450MA 440MOHM SM |
2,097 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±5% | 450 mA | - | Unshielded | 440mOhm Max | 28 @ 100MHz | 700MHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
AISC-0603-R12G-TFIXED IND 120NH 240MA 750MOHM SM |
2,084 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±2% | 240 mA | - | Unshielded | 750mOhm Max | 32 @ 150MHz | 1.6GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|

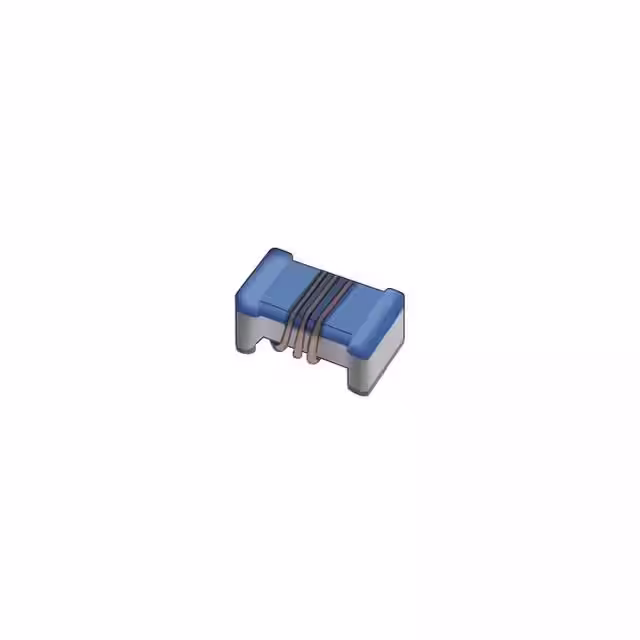

LQW18AN6N2C8ZDFIXED IND 6.2NH 1.9A 0.04OHM SMD |
2,028 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.2 nH | ±0.2nH | 1.9 A | - | Unshielded | 40mOhm Max | 40 @ 250MHz | 6.65GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
AISC-0805-R082J-TFIXED IND 82NH 400MA 420MOHM SMD |
2,010 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 400 mA | - | Unshielded | 420mOhm Max | 50 @ 500MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
WCL3225-470-RFIXED IND 47UH 140MA 5.2 OHM SMD |
2,000 |
|
Datasheet
|
WCL3225 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 µH | ±5% | 140 mA | - | Unshielded | 5.2Ohm Max | 10 @ 2.52MHz | 10MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.138" L x 0.114" W (3.50mm x 2.90mm) | 0.089" (2.25mm) |
|
|
AISC-0603-R22G-TFIXED IND 220NH 140MA 2.1OHM SMD |
1,998 |
|
Datasheet
|
AISC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 140 mA | - | Unshielded | 2.1Ohm Max | 25 @ 100MHz | 1.2GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0805-R12J-TFIXED IND 120NH 400MA 510MOHM SM |
1,951 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 400 mA | - | Unshielded | 510mOhm Max | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
|
AISC-0805-R022J-TFIXED IND 22NH 500MA 220MOHM SMD |
1,945 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|
NLV25T-015J-EFDFIXED IND 15NH 480MA 290MOHM SMD |
1,912 |
|
Datasheet
|
NLV-EFD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 nH | ±5% | 480 mA | - | Unshielded | 290mOhm Max | 15 @ 100MHz | 2GHz | AEC-Q200 | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
