Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCL2520-470-RFIXED IND 47UH 60MA 5.7 OHM SMD |
1,590 |
|
Datasheet
|
WCL2520 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 µH | ±5% | 60 mA | - | Unshielded | 5.7Ohm Max | 10 @ 2.52MHz | 7MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
NRH2412T2R2MNGHVFIXED IND 2.2UH 1A 168 MOHM SMD |
1,484 |
|
Datasheet
|
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1.7A | Shielded | 168mOhm Max | - | 72MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
SDET25201B-4R7MSFIXED IND 4.7UH 1.25A 210MOHM SM |
1,362 |
|
Datasheet
|
SDET25201B | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 1.25 A | 1.4A | Shielded | 210mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
-2,00mm.jpg)
|
LBR2518T4R7MVFIXED IND 4.7UH 345MA 100MOHM SM |
1,211 |
|
- |
LB, R Type | 1007 (2518 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 4.7 µH | ±20% | 345 mA | - | Unshielded | 100mOhm | - | 45MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
.jpg)
|
AIML-0805HC-1R5M-TFIXED IND 1.5UH 1.3A 160MOHM SMD |
1,108 |
|
Datasheet
|
AIML-0805HC | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 1.3 A | 180mA | Shielded | 160mOhm | - | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.037" (0.95mm) |
|
MPH252010C100MTFIXED IND 10UH 700MA 625MOHM SMD |
1,011 |
|
Datasheet
|
MPH | Nonstandard | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 700 mA | 210mA | Shielded | 625mOhm Max | - | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW18AN8N2G8ZDFIXED IND 8.2NH 1.6A 0.052OHM SM |
10,635 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.2 nH | ±2% | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
MLF1005GR56JT000FIXED IND 560NH 45MA 470MOHM SMD |
9,925 |
|
Datasheet
|
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 560 nH | ±5% | 45 mA | - | Shielded | 470mOhm Max | 30 @ 10MHz | 170MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
LQW18AN8N7G8ZDFIXED IND 8.7NH 1.6A 0.052OHM SM |
8,147 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.7 nH | ±2% | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN94NG8ZDFIXED IND 94NH 490MA 0.63OHM SMD |
7,901 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 94 nH | ±2% | 490 mA | - | Unshielded | 630mOhm Max | 34 @ 150MHz | 1.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
LQW18AN4N7C8ZDFIXED IND 4.7NH 1.5A 0.054OHM SM |
7,900 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.7 nH | ±0.2nH | 1.5 A | - | Unshielded | 54mOhm Max | 25 @ 250MHz | 10.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
MLF1005VR18KT000FIXED IND 180NH 160MA 720MOHM SM |
7,833 |
|
Datasheet
|
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 180 nH | ±10% | 160 mA | - | Shielded | 720mOhm Max | 15 @ 25MHz | 320MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
MLF1005VR12KT000FIXED IND 120NH 180MA 590MOHM SM |
7,537 |
|
Datasheet
|
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 120 nH | ±10% | 180 mA | - | Shielded | 590mOhm Max | 10 @ 25MHz | 400MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|

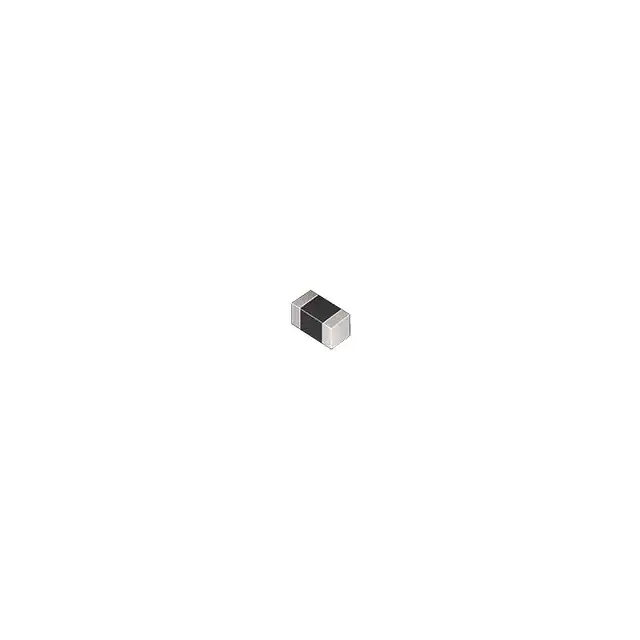

LQM18DH330M70LFIXED IND 33UH 200MA POWRTRN |
7,400 |
|
Datasheet
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 33 µH | ±20% | 10 mA | 30mA | Shielded | 3.12Ohm Max | - | 13MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
SDCL1V2010-2R2M-RIND 2.2 UH 1.26A SMT |
6,986 |
|
Datasheet
|
SDCL1V20 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 1.1 A | 1.26A | Shielded | 174mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.083" L x 0.067" W (2.10mm x 1.70mm) | 0.041" (1.05mm) |
|
|
SDCL1V2010-4R7M-RIND 4.7 UH 0.90A SMT |
6,386 |
|
Datasheet
|
SDCL1V20 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 800 mA | 900mA | Shielded | 405mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.083" L x 0.067" W (2.10mm x 1.70mm) | 0.041" (1.05mm) |
|
AISC-0603-R33J-TFIXED IND 330NH 100MA 4.2OHM SMD |
6,145 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±5% | 100 mA | - | Unshielded | 4.2Ohm Max | 26 @ 100MHz | 800MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
LQW18AN8N7C8ZDFIXED IND 8.7NH 1.6A 0.052OHM SM |
5,947 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 8.7 nH | ±0.2nH | 1.6 A | - | Unshielded | 52mOhm Max | 38 @ 250MHz | 4.75GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
|
AISC-0603-R11J-TFIXED IND 110NH 250MA 730MOHM SM |
5,884 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 110 nH | ±5% | 250 mA | - | Unshielded | 730mOhm Max | 32 @ 150MHz | 1.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
AISC-0603-R0075J-TFIXED IND 7.5NH 700MA 95MOHM SMD |
5,493 |
|
Datasheet
|
AISC-0603 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±5% | 700 mA | - | Unshielded | 95mOhm Max | 33 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
