Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLV25T-047J-EFFIXED IND 47NH 360MA 500MOHM SMD |
4,723 |
|
Datasheet
|
NLV-EF | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 nH | ±5% | 360 mA | - | Unshielded | 500mOhm Max | 20 @ 100MHz | 1.2GHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|

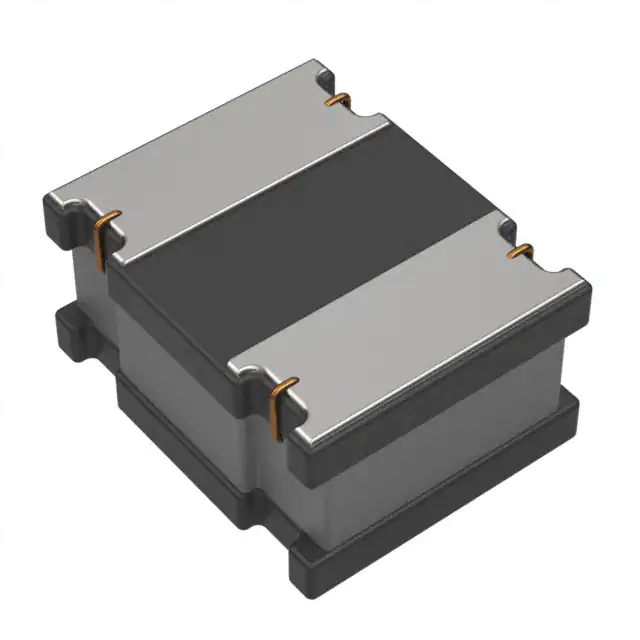

SDED20161T-100MSFIXED IND 10UH 470MA 1.119OHM SM |
4,310 |
|
Datasheet
|
SDED20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 470 mA | 550mA | Shielded | 1.119Ohm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SDET25201T-2R2MSFIXED IND 2.2UH 1.5A 162MOHM SMD |
4,256 |
|
Datasheet
|
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 1.5 A | 1.39A | Shielded | 162mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

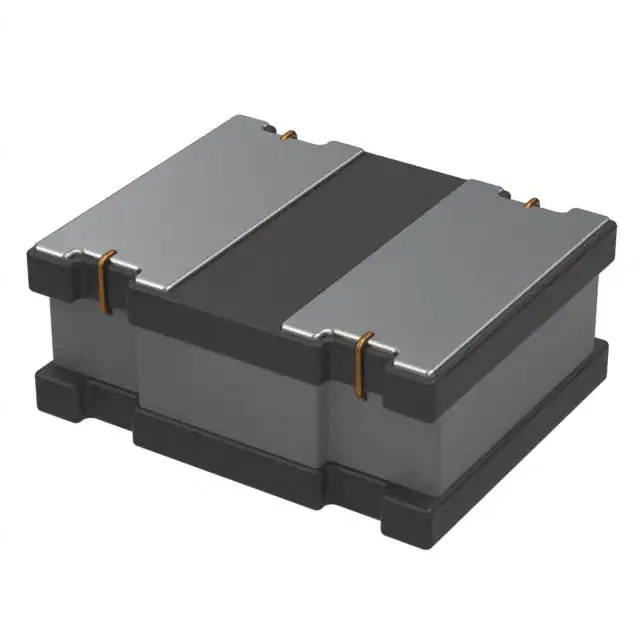

SDEM25201T-R33MSFIXED IND 330NH 4.2A 0.029OHM SM |
4,000 |
|
Datasheet
|
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 4.2 A | 5.85A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BWLS001611092R2K00INDUCTOR RF |
3,980 |
|
Datasheet
|
BWLS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 500 mA | - | Unshielded | 1.2Ohm Max | 17 @ 7.9MHz | 140MHz | - | -25°C ~ 105°C | 7.9 MHz | - | Surface Mount | 0603 | 0.063" L x 0.043" W (1.60mm x 1.10mm) | 0.043" (1.10mm) |
|
|
BWLS001611091R0K00INDUCTOR RF |
3,965 |
|
Datasheet
|
BWLS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 600 mA | - | Unshielded | 810mOhm Max | 18 @ 7.9MHz | 310MHz | - | -25°C ~ 105°C | 7.9 MHz | - | Surface Mount | 0603 | 0.063" L x 0.043" W (1.60mm x 1.10mm) | 0.043" (1.10mm) |
|
|
SDEM25201T-1R5MSFIXED IND 1.5UH 2.2A 0.1OHM SMD |
3,883 |
|
Datasheet
|
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 1.5 µH | ±20% | 2.2 A | 2.8A | Shielded | 100mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
MLJ1608WR39KT000FIXED IND 390NH 450MA 364MOHM SM |
3,856 |
|
Datasheet
|
MLJ | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±10% | 450 mA | 600mA | Shielded | 364mOhm Max | 35 @ 25MHz | 210MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.94mm) |
|
NLV32T-680J-EFDFIXED IND 68UH 50MA 9 OHM SMD |
3,826 |
|
Datasheet
|
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 50 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 12MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
MLF1608E5R6KTD25FIXED IND 5.6UH 15MA 1.1 OHM SMD |
3,700 |
|
Datasheet
|
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 5.6 µH | ±10% | 15 mA | - | Shielded | 1.1Ohm Max | 35 @ 4MHz | 45MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
SDET25201T-3R3MSFIXED IND 3.3UH 1.2A 249MOHM SMD |
3,632 |
|
Datasheet
|
SDET25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 1.2 A | 1.17A | Shielded | 249mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SDEM20161T-1R0MSFIXED IND 1UH 2.4A 0.072OHM SMD |
3,578 |
|
Datasheet
|
SDEM20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 2.4 A | 2.7A | Shielded | 72mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
SDEM25201T-R68MSFIXED IND 680NH 3.2A 0.047OHM SM |
3,382 |
|
Datasheet
|
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 3.2 A | 3.78A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

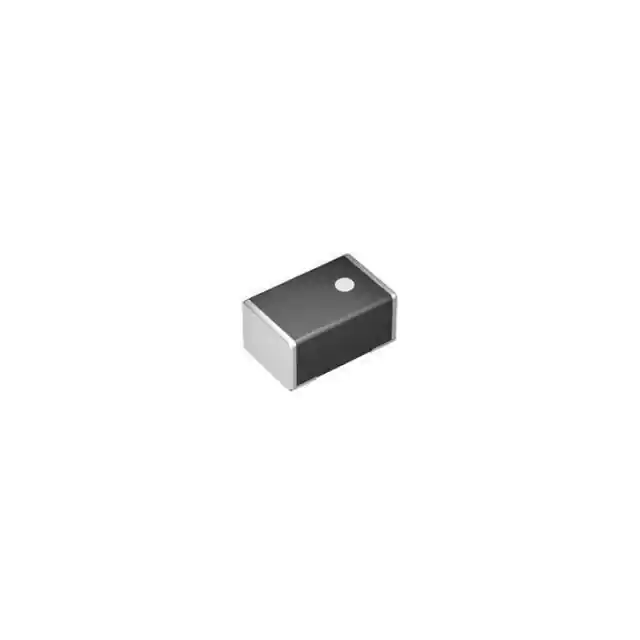

MCHK1608TR56MKNFIXED IND 560NH 2.6A 55MOHM SMD |
3,360 |
|
Datasheet
|
MCOIL™, MC | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 560 nH | ±20% | 2.6 A | - | Shielded | 55mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
MLF1608DR39KTD25FIXED IND 390NH 100MA 850MOHM SM |
3,295 |
|
Datasheet
|
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 390 nH | ±10% | 100 mA | - | Shielded | 850mOhm Max | 15 @ 25MHz | 210MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
MLF1608DR47KTD25FIXED IND 470NH 100MA 950MOHM SM |
3,012 |
|
Datasheet
|
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±10% | 100 mA | - | Shielded | 950mOhm Max | 15 @ 25MHz | 190MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-Height-.80mm.jpg)
|
DFE252008C-2R2M=P2FIXED IND 2.2UH 950MA 0.18OHM SM |
2,983 |
|
Datasheet
|
DFE252008C | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 950 mA | 1.6A | Shielded | 180mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
|
SDWL1608C68NGSTFM01FIXED IND 68NH 340MA 380MOHM SMD |
2,971 |
|
Datasheet
|
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±2% | 340 mA | - | Unshielded | 380mOhm Max | 38 @ 200MHz | 2.2GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C6N8CSTFM01FIXED IND 6.8NH 750MA 82MOHM SMD |
2,970 |
|
Datasheet
|
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±0.2nH | 750 mA | - | Unshielded | 82mOhm Max | 35 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
|
|
SDWL1608C7N5DSTFM01FIXED IND 7.5NH 750MA 82MOHM SMD |
2,949 |
|
Datasheet
|
SDWL-C-M | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 7.5 nH | ±0.5nH | 750 mA | - | Unshielded | 82mOhm Max | 35 @ 250MHz | 6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.035" W (1.60mm x 0.90mm) | 0.039" (1.00mm) |
