Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPH252010H2R2MTFIXED IND 2.2UH 1.4A 137MOHM SMD |
1,953 |
|
Datasheet
|
SPH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.4 A | 1.8A | Shielded | 137mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
BDHE002016101R0MQ1FIXED IND 1UH 3.1A 65 MOHM SMD |
1,911 |
|
Datasheet
|
BDHE | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3.1 A | 3.6A | Unshielded | 65mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
AISC-1008-R047J-TFIXED IND 47NH 1A 160 MOHM SMD |
1,907 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 1 A | - | Unshielded | 160mOhm Max | 65 @ 350MHz | 1.5GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-3R3J-TFIXED IND 3.3UH 290MA 3.4OHM SMD |
1,897 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.3 µH | ±5% | 290 mA | - | Unshielded | 3.4Ohm Max | 22 @ 25MHz | 70MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
WPN252010HS4R7MTFIXED IND 4.7UH 1.1A 276MOHM SMD |
1,770 |
|
Datasheet
|
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.1 A | 1.5A | Shielded | 276mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
AISC-1008-R62J-TFIXED IND 620NH 300MA 1.4OHM SMD |
1,761 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 620 nH | ±5% | 300 mA | - | Unshielded | 1.4Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
AISC-1008-R22J-TFIXED IND 220NH 500MA 800MOHM SM |
1,504 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 500 mA | - | Unshielded | 800mOhm Max | 50 @ 100MHz | 630MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
-Unshielded-Inductor.jpg)
|
IMC0805ERR39J01FIXED IND 390NH 210MA 2.2OHM SMD |
1,477 |
|
Datasheet
|
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 210 mA | - | Unshielded | 2.2Ohm Max | 45 @ 250MHz | 780MHz | - | -40°C ~ 105°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
AISC-1008-R12J-TFIXED IND 120NH 650MA 630MOHM SM |
1,449 |
|
Datasheet
|
AISC-1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 650 mA | - | Unshielded | 630mOhm Max | 60 @ 350MHz | 950MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
|
WPN252010HS100MTFIXED IND 10UH 800MA 500MOHM SMD |
1,438 |
|
Datasheet
|
WPN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 800 mA | 1.3A | Shielded | 500mOhm Max | - | 12MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW15AWR18J80DFIXED IND 180NH 260MA 2.2OHM SMD |
1,254 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 180 nH | ±5% | 260 mA | - | Unshielded | 2.2Ohm Max | 33 @ 250MHz | 1.3GHz | - | -40°C ~ 140°C | 100 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
AISC-0603HP-4N7B-TFIXED IND 4.7NH 1.1A 90 MOHM SMD |
1,193 |
|
Datasheet
|
AISC-0603HP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.7 nH | ±0.2nH | 1.1 A | - | Unshielded | 90mOhm Max | 22 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
|
IMC0805ER1R2J01FIXED IND 1.2UH 150MA 2.6OHM SMD |
1,156 |
|
Datasheet
|
IMC-0805-01 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 150 mA | - | Unshielded | 2.6Ohm Max | 15 @ 7.96MHz | 200MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
AISC-0603HP-6N8J-TFIXED IND 6.8NH 1.4A 50 MOHM SMD |
1,100 |
|
Datasheet
|
AISC-0603HP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 1.4 A | - | Unshielded | 50mOhm Max | 35 @ 250MHz | 5.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.071" L x 0.044" W (1.80mm x 1.12mm) | 0.040" (1.02mm) |
|
AISC-0805-R022G-TFIXED IND 22NH 500MA 220MOHM SMD |
1,079 |
|
Datasheet
|
AISC-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 500 mA | - | Unshielded | 220mOhm Max | 55 @ 500MHz | 2GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.061" (1.55mm) |
|

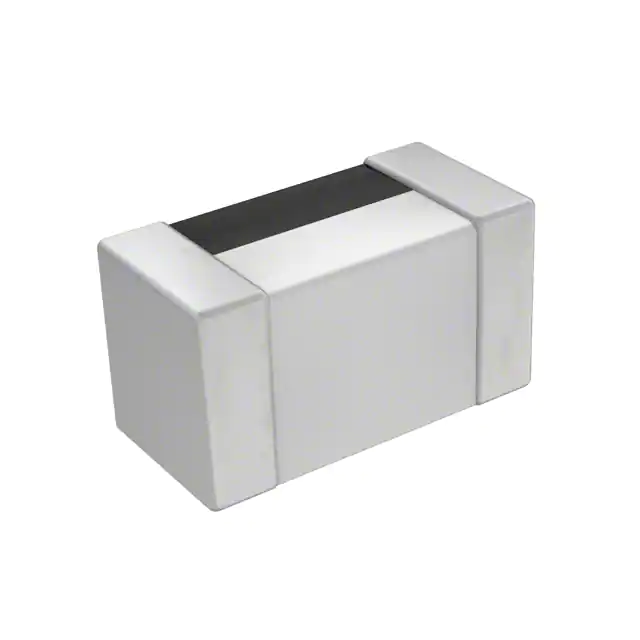

MLG0402Q27NJT000FIXED IND 27NH 120MA 3.5 OHM SMD |
11,930 |
|
Datasheet
|
MLG-Q | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 27 nH | ±5% | 120 mA | - | Unshielded | 3.5Ohm Max | 3 @ 100MHz | 1.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
ASMPH-0805-R47M-TFIXED IND 470NH 1.5A 80 MOHM SMD |
7,928 |
|
Datasheet
|
ASMPH-0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.5 A | 1.2A | Shielded | 80mOhm | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
SDCL1V3012-2R2M-RIND 2.2 UH 1.55A SMT |
7,903 |
|
Datasheet
|
SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 1.4 A | 1.55A | Shielded | 105mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.051" (1.30mm) |
-1,45mm.jpg)
|
LBC2012T1R0MVFIXED IND 1UH 620MA 190 MOHM SMD |
7,056 |
|
- |
LB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 1 µH | ±20% | 620 mA | - | Unshielded | 190mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-BR-Series.jpg)
|
BRC1608T2R2MFIXED IND 2.2UH 280MA 550MOHM SM |
5,601 |
|
Datasheet
|
BR, C Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 280 mA | 550mA | Unshielded | 550mOhm | - | 100MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
