Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS3010CX-220M-1FIXED IND 22UH SMD |
1,776 |
|
Datasheet
|
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
AISC-1008HQ-68NJ-TFIXED IND 68NH 1A 130 MOHM SMD |
1,775 |
|
Datasheet
|
AISC-1008HQ | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 1 A | - | Unshielded | 130mOhm Max | 80 @ 350MHz | 1.15GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
AISC-1008F-5R6G-TFIXED IND 5.6UH 380MA 2.65OHM SM |
1,490 |
|
Datasheet
|
AISC-1008F | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±2% | 380 mA | - | Unshielded | 2.65Ohm Max | 23 @ 7.9MHz | 80MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.090" (2.29mm) |
|
VLS201612ET-1R5NFIXED IND 1.5UH 1.2A 159MOHM SMD |
1,202 |
|
Datasheet
|
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 1.2 A | 1.2A | Shielded | 159mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
.jpg)
|
LQW2UAS3R3J0CLFIXED IND 3.3UH 290MA 3.4OHM SMD |
1,157 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 3.3 µH | ±5% | 290 mA | - | Unshielded | 3.4Ohm Max | 22 @ 25MHz | 90MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
IWC0805DR12R-3GFIXED IND 120NH 400MA 0.51OHM SM |
19,974 |
|
Datasheet
|
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 120 nH | ±2% | 400 mA | - | Unshielded | 510mOhm Max | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
SDCL1V2512-100M-RIND 10 UH 0.80A SMT |
15,980 |
|
Datasheet
|
SDCL1V25 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 700 mA | 800mA | Shielded | 460mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
IWC0805E27NR-3GFIXED IND 27NH 500MA 0.25OHM SMD |
13,720 |
|
Datasheet
|
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 27 nH | ±2% | 500 mA | - | Unshielded | 250mOhm Max | 55 @ 500MHz | 2.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
IWC0805E33NR-3GFIXED IND 33NH 500MA 0.27OHM SMD |
13,686 |
|
Datasheet
|
IWC0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 33 nH | ±2% | 500 mA | - | Unshielded | 270mOhm Max | 60 @ 500MHz | 2.05GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
.jpg)
|
VLS201612HBX-R24M-1FIXED IND 240NH 5.65A 29MOHM SMD |
5,150 |
|
Datasheet
|
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 240 nH | ±20% | 4.25 A | 5.65A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
BWVF002520104R7M00FIXED IND 4.7UH 950MA 285MOHM SM |
4,713 |
|
Datasheet
|
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 950 mA | 920mA | Shielded | 285mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
BWVF002520121R0M00FIXED IND 1UH 2.4A 50 MOHM SMD |
4,647 |
|
Datasheet
|
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 2.4 A | 2.5A | Shielded | 50mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
MEKK2016TR68MFIXED IND 680NH 3.3A 52 MOHM SMD |
4,065 |
|
Datasheet
|
MCOIL™, ME | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.3 A | 3.8A | Shielded | 52mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
BWVF003030154R7M00FIXED IND 4.7UH 1.52A 170MOHM SM |
3,785 |
|
Datasheet
|
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±20% | 1.52 A | 1.58A | Shielded | 170mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
E.JPG)
|
VLS2012ET-100MFIXED IND 10UH 470MA 834MOHM SMD |
3,730 |
|
Datasheet
|
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 10 µH | ±20% | 470 mA | 470mA | Shielded | 834mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
BWVF00303012220M00FIXED IND 22UH 620MA 860MOHM SMD |
3,355 |
|
Datasheet
|
BWVF | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 620 mA | 640mA | Shielded | 860mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
LQW2UASR10G0CLFIXED IND 100NH 650MA 560MOHM SM |
3,124 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 100 nH | ±2% | 650 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
LQH2MCN8R2M02LFIXED IND 8.2UH 235MA 1.43OHM SM |
3,065 |
|
Datasheet
|
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 235 mA | - | Unshielded | 1.43Ohm Max | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|

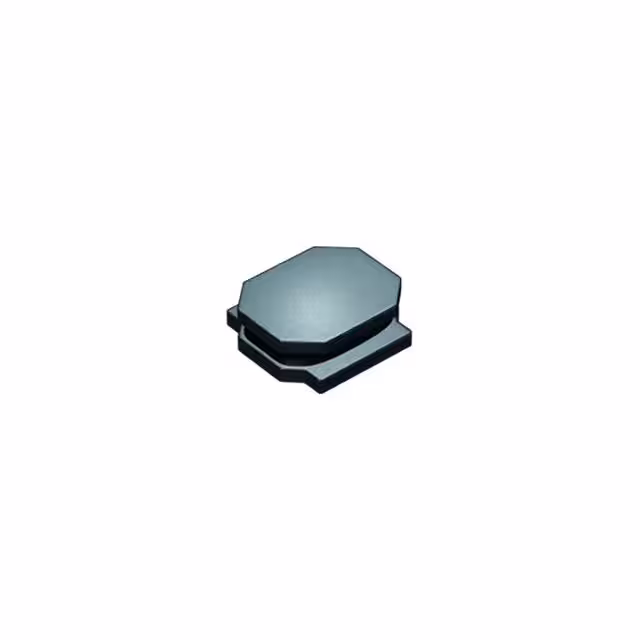

LSXND6060MKT4R7MMGFIXED IND 4.7UH 1.55A 150MOHM SM |
2,990 |
|
Datasheet
|
LSXN | 2424 (6060 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 1.55 A | 1.6A | Shielded | 150mOhm Max | - | 36MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | 2424 | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.047" (1.20mm) |
|

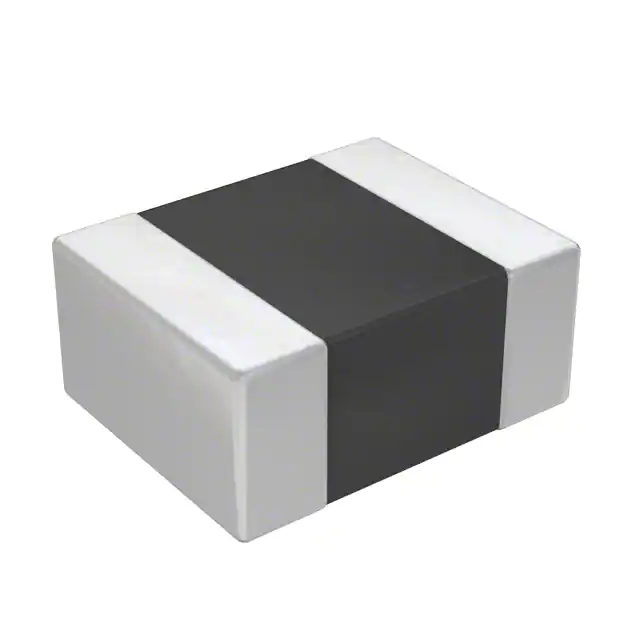

ASMPH-0806-1R0M-TFIXED IND 1UH 1.4A 90 MOHM SMD |
2,895 |
|
Datasheet
|
ASMPH-0806 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.4 A | 1.2A | Shielded | 90mOhm | - | 70MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
