Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

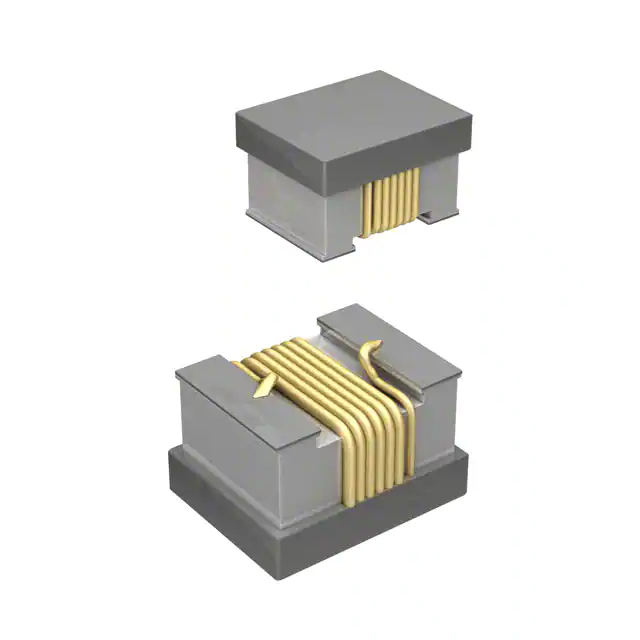

CW252016-3R9JFIXED IND 3.9UH 180MA 3.6OHM SMD |
7,900 |
|
Datasheet
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 180 mA | - | Unshielded | 3.6Ohm Max | 20 @ 7.9MHz | 48MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
CW252016-33NKFIXED IND 33NH 600MA 160MOHM SMD |
7,716 |
|
Datasheet
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±10% | 600 mA | - | Unshielded | 160mOhm Max | 60 @ 350MHz | 1.6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
HL021R2BTTRFIXED IND 1.2NH 343MA 107MOHM SM |
7,247 |
|
Datasheet
|
MLO™ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 1.2 nH | ±0.1nH | 343 mA | - | Unshielded | 107mOhm Max | 24 @ 450MHz | 16.35GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.023" W (1.00mm x 0.58mm) | 0.018" (0.45mm) |
.jpg)
|
VLS201612HBX-R68M-1FIXED IND 680NH 2.77A 54MOHM SMD |
6,824 |
|
Datasheet
|
VLS-HBX-1 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 2.77 A | 3.02A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|

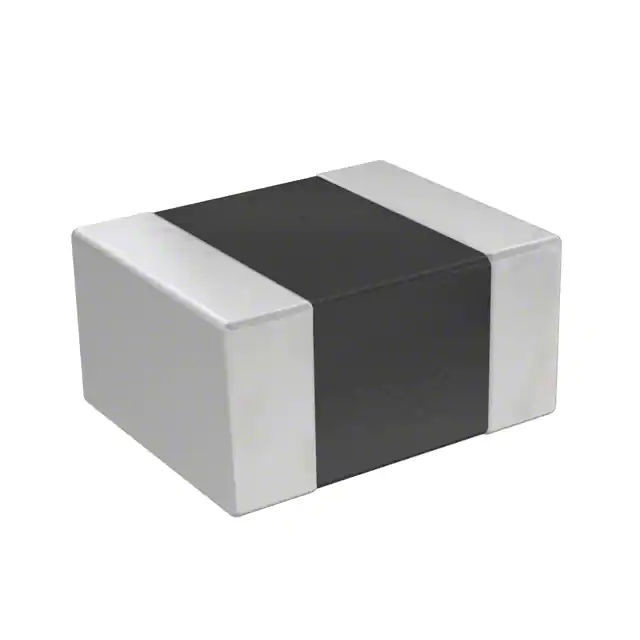

MLD2016S4R7MTD25FIXED IND 4.7UH 750MA 325MOHM SM |
5,943 |
|
Datasheet
|
MLD | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 750 mA | - | Shielded | 325mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

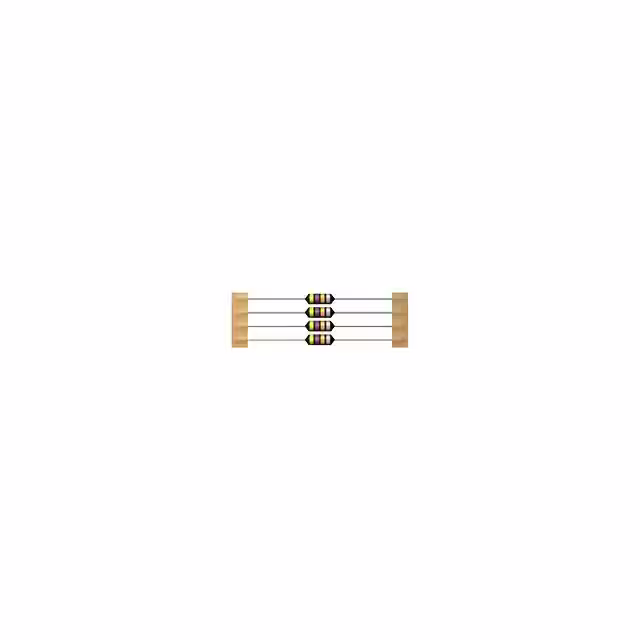

B78108S1103K009FIXED IND 10UH 680MA 490 MOHM TH |
5,929 |
|
Datasheet
|
BC | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 680 mA | - | Unshielded | 490mOhm Max | 70 @ 2.52MHz | 35MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

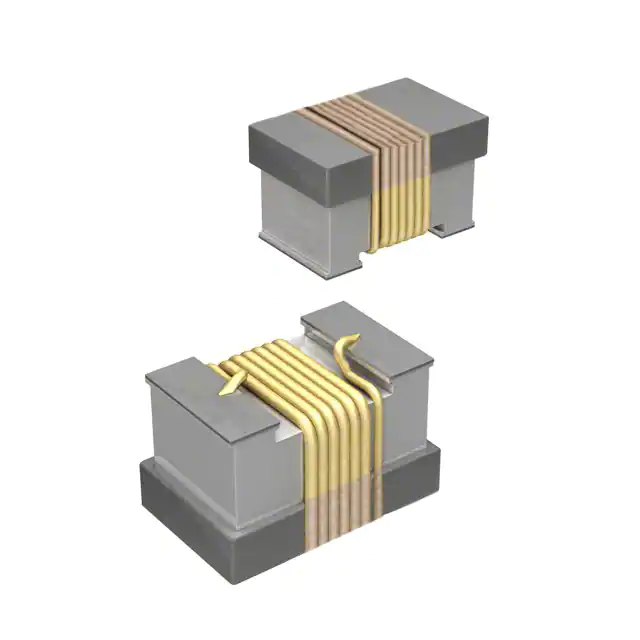

CW100505-15NJFIXED IND 15NH 560MA 172MOHM SMD |
4,992 |
|
Datasheet
|
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 560 mA | - | Unshielded | 172mOhm | 26 @ 250MHz | 3.28GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
B78108S1682K009FIXED IND 6.8UH 670MA 510MOHM TH |
4,577 |
|
Datasheet
|
BC | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 670 mA | - | Unshielded | 510mOhm Max | 65 @ 7.96MHz | 75MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

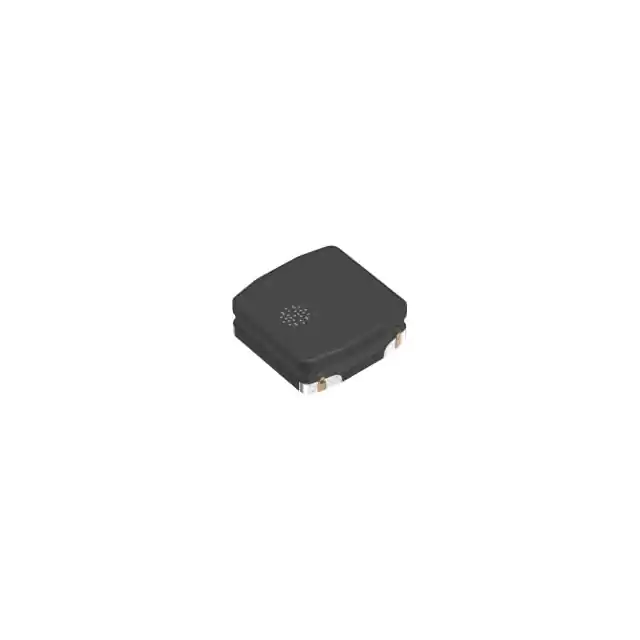

VLS3010CX-1R5M-1FIXED IND 1.5UH SMD |
4,054 |
|
Datasheet
|
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 105°C | - | - | Surface Mount | - | 0.117" L x 0.117" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
|
|
CW252016-2R7JFIXED IND 2.7UH 195MA 3.2OHM SMD |
4,000 |
|
Datasheet
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 195 mA | - | Unshielded | 3.2Ohm Max | 22 @ 7.9MHz | 70MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
CW252016-R22JFIXED IND 220NH 500MA 840MOHM SM |
3,950 |
|
Datasheet
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 500 mA | - | Unshielded | 840mOhm Max | 45 @ 100MHz | 700MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

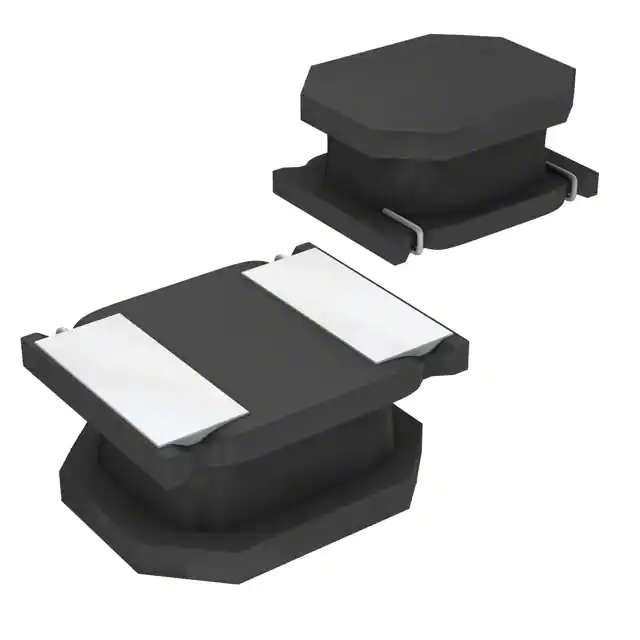

ASPI-2010HC-1R0M-TFIXED IND 1UH 2.05A 90 MOHM SMD |
3,412 |
|
Datasheet
|
ASPI-2010HC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 1 µH | ±20% | 2.05 A | 3.35A | Shielded | 90mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
B78108S1155J009FIXED IND 1.5MH 100MA 23 OHM TH |
3,325 |
|
Datasheet
|
BC | Axial | Cut Tape (CT) | Active | Wirewound | - | 1.5 mH | ±5% | 100 mA | - | Unshielded | 23Ohm Max | 50 @ 252kHz | 1.25MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
AISC-0805HQ-12NJ-TFIXED IND 12NH 1.6A 45 MOHM SMD |
3,265 |
|
Datasheet
|
AISC-0805HQ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 1.6 A | - | Unshielded | 45mOhm Max | 80 @ 1GHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.060" (1.52mm) |
|
|
CW252016-R68JFIXED IND 680NH 400MA 1.55OHM SM |
3,188 |
|
Datasheet
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 400 mA | - | Unshielded | 1.55Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
VLS252012HBX-R68M-1FIXED IND 680NH 3.7A 46 MOHM SMD |
3,077 |
|
Datasheet
|
VLS-HBX-1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 680 nH | ±20% | 3.7 A | 3.23A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
CW252016-68NJFIXED IND 68NH 600MA 200MOHM SMD |
3,028 |
|
Datasheet
|
CW252016 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 60 @ 350MHz | 1.3GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|

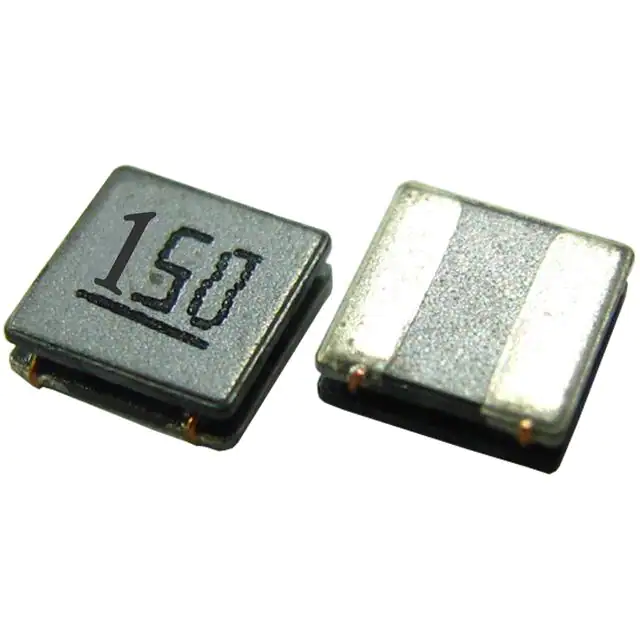

BWVH002520122R2MH1FIXED IND 2.2UH 2A 99 MOHM SMD |
2,922 |
|
Datasheet
|
BWVH | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 2 A | 2.2A | Shielded | 99mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.049" (1.25mm) |
|
|
ASPI-2010HC-2R2M-TFIXED IND 2.2UH 1.45A 170MOHM SM |
2,902 |
|
Datasheet
|
ASPI-2010HC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron | 2.2 µH | ±20% | 1.45 A | 1.9A | Shielded | 170mOhm Max | - | 39MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
B82496C3270G000FIXED IND 27NH 360MA 550MOHM SMD |
2,746 |
|
Datasheet
|
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±2% | 360 mA | - | Unshielded | 550mOhm Max | 14 @ 100MHz | 3GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
