Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NRS6028T0R9NMGJFIXED IND 900NH 4.6A 16.9MOHM SM |
1,521 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 900 nH | ±30% | 4.6 A | 6.7A | Shielded | 16.9mOhm Max | - | 90MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|

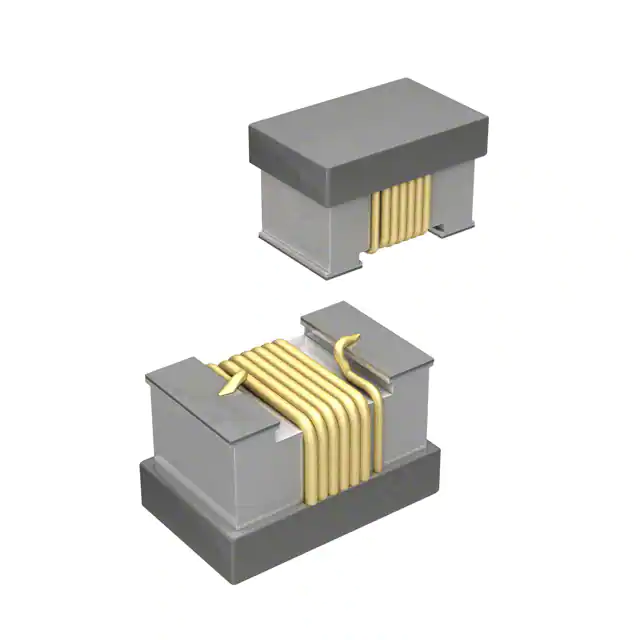

CW160808-R12JFIXED IND 120NH 300MA 790MOHM SM |
1,482 |
|
Datasheet
|
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 120 nH | ±5% | 300 mA | - | Unshielded | 790mOhm | 32 @ 250MHz | 1.35GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|

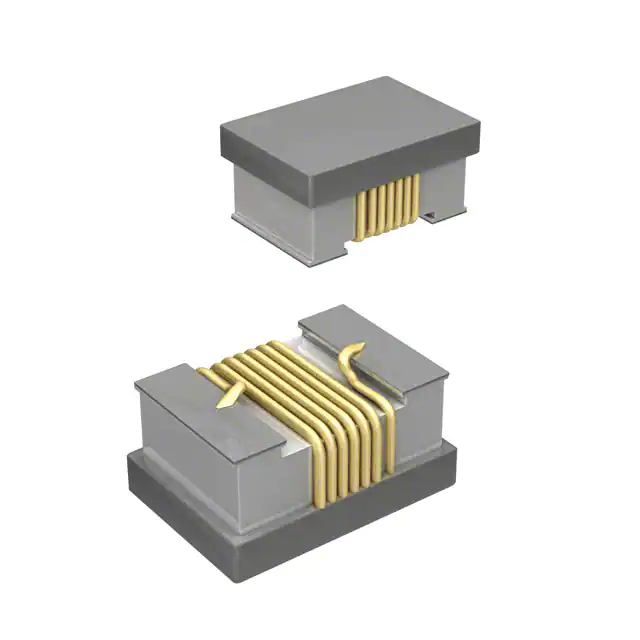

CW201212-R18JFIXED IND 180NH 350MA 850MOHM SM |
1,348 |
|
Datasheet
|
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 350 mA | - | Unshielded | 850mOhm | 50 @ 250MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
CW160808-R10JFIXED IND 100NH 400MA 710MOHM SM |
1,240 |
|
Datasheet
|
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 100 nH | ±5% | 400 mA | - | Unshielded | 710mOhm | 34 @ 250MHz | 1.4GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
|
CW160808-10NJFIXED IND 10NH 700MA 130MOHM SMD |
1,178 |
|
Datasheet
|
CW160808 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 10 nH | ±5% | 700 mA | - | Unshielded | 130mOhm | 30 @ 250MHz | 4.8GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.041" W (1.65mm x 1.05mm) | 0.047" (1.20mm) |
|
WL1608FS33NMTFM01FIXED IND 33NH 1.7A 35 MOHM SMD |
1,065 |
|
Datasheet
|
WL-FS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 nH | ±20% | 1.7 A | - | Unshielded | 35mOhm Max | - | 1.8GHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.067" L x 0.037" W (1.70mm x 0.95mm) | 0.039" (1.00mm) |
|
TYA40121R0M-10FIXED IND 1UH 3A 59 MOHM SMD |
18,409 |
|
Datasheet
|
TYA4012 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3 A | 3.8A | Shielded | 59mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.065" (1.65mm) |
|
IWC1008DR68R-3GFIXED IND 680NH 400MA 1.47OHM SM |
13,711 |
|
Datasheet
|
IWC1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Ceramic | 680 nH | ±2% | 400 mA | - | Unshielded | 1.47Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.106" W (2.92mm x 2.70mm) | 0.088" (2.23mm) |
|
|
NRS4010T4R7MDGGFIXED IND 4.7UH 1.2A 168MOHM SMD |
10,414 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 950mA | Shielded | 168mOhm Max | - | 47MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
|
LSCNE2016FETR68MCBFIXED INDUCTOR 0.68UH SMD MCOIL |
7,990 |
|
Datasheet
|
LSCN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 680 nH | ±20% | 2.5 A | 3A | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.026" (0.65mm) |
|
SDCL1V3015-1R0N-RIND 1.0 UH 2.4A SMT |
7,257 |
|
Datasheet
|
SDCL1V30 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±30% | 2.3 A | 2.4A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

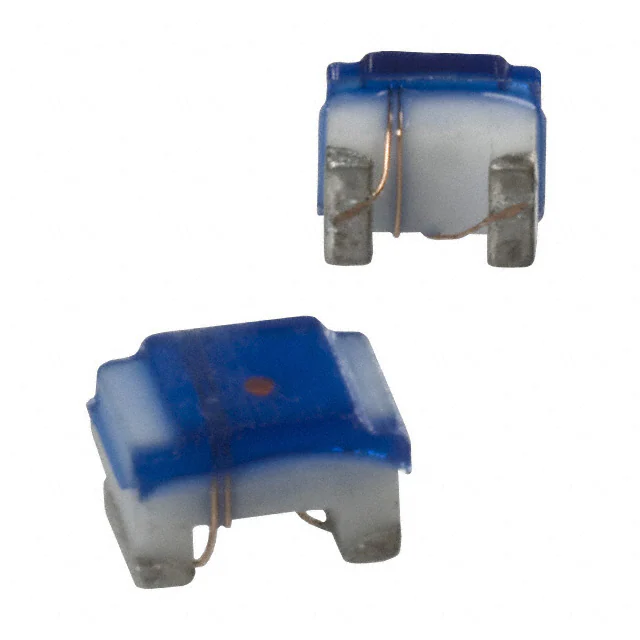

PM0805-47NM-RCFIXED IND 47NH 500MA 150MOHM SMD |
5,555 |
|
Datasheet
|
PM0805 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alumina | 47 nH | ±20% | 500 mA | - | Unshielded | 150mOhm | 60 @ 500MHz | 1.7GHz | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
|
NRS4010T2R2MDGGFIXED IND 2.2UH 1.5A 85 MOHM SMD |
4,966 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.5 A | 1.2A | Shielded | 85mOhm | - | 73MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.039" (1.00mm) |
|
VLS252010HBU-6R8MFIXED IND 6.8UH 720MA 540MOHM SM |
4,821 |
|
Datasheet
|
VLS-HBU | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 720 mA | 1.3A | Shielded | 540mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SDCLA1V4018-3R3-RIND SMD POWER 3.3UH 2.0A |
4,425 |
|
Datasheet
|
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 3.3 µH | ±20% | 2 A | 2.3A | Shielded | 55mOhm | - | 46MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
SDCLA1V4018-1R0-RIND SMD POWER 1.0UH 3.2A |
4,408 |
|
Datasheet
|
SDCLA1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Nickel Zinc Ferrite (NiZn) | 1 µH | ±30% | 3.2 A | 4A | Shielded | 27mOhm | - | 90MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|

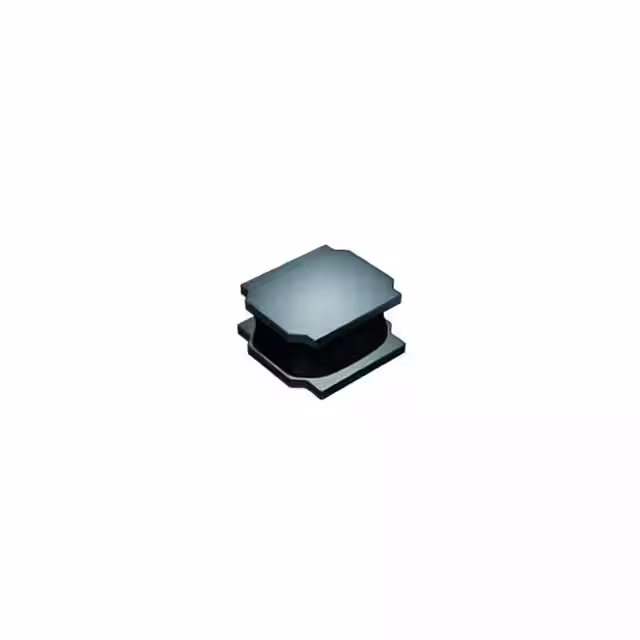

LSXBD3030QKT150MFIXED IND 15UH 560MA 432MOHM SMD |
4,000 |
|
- |
LSXB | Nonstandard | Tape & Reel (TR) | Not For New Designs | Wirewound | Ferrite | 15 µH | ±20% | 560 mA | 560mA | Shielded | 360mOhm | - | 23MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
SDWL1608CP23NJSTFFIXED IND 23NH 850MA 183MOHM SMD |
2,990 |
|
Datasheet
|
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 23 nH | ±5% | 850 mA | - | Unshielded | 183mOhm Max | 40 @ 250MHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
|
|
WL1608FS85NMTFM01FIXED IND 85NH 1.4A 60 MOHM SMD |
2,948 |
|
Datasheet
|
WL-FS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 85 nH | ±20% | 1.4 A | - | Unshielded | 60mOhm Max | - | 1.38GHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0603 | 0.067" L x 0.037" W (1.70mm x 0.95mm) | 0.039" (1.00mm) |
|
|
SDWL1608CPR25GSTFFIXED IND 250NH 240MA 3 OHM SMD |
2,908 |
|
Datasheet
|
SDWL-CP | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 250 nH | ±2% | 240 mA | - | Unshielded | 3Ohm Max | 45 @ 250MHz | 1.05GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.067" L x 0.043" W (1.70mm x 1.10mm) | 0.043" (1.10mm) |
