Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS5045EX-470M-CAFIXED IND 47UH 1A 390 MOHM SMD |
1,258 |
|
Datasheet
|
VLS-EX | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 1.3A | Shielded | 390mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|

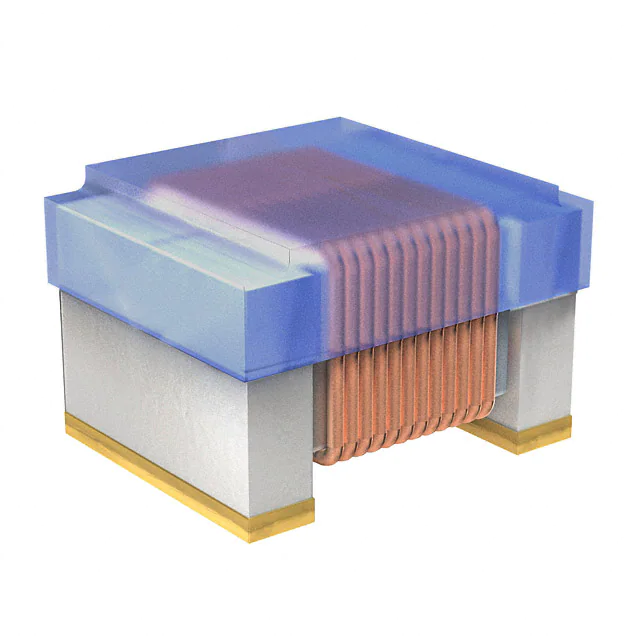

744758315AFIXED IND 1.5UH 630MA 750MOHM SM |
1,176 |
|
Datasheet
|
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 630 mA | - | Unshielded | 750mOhm Max | 20 @ 7.96MHz | 250MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

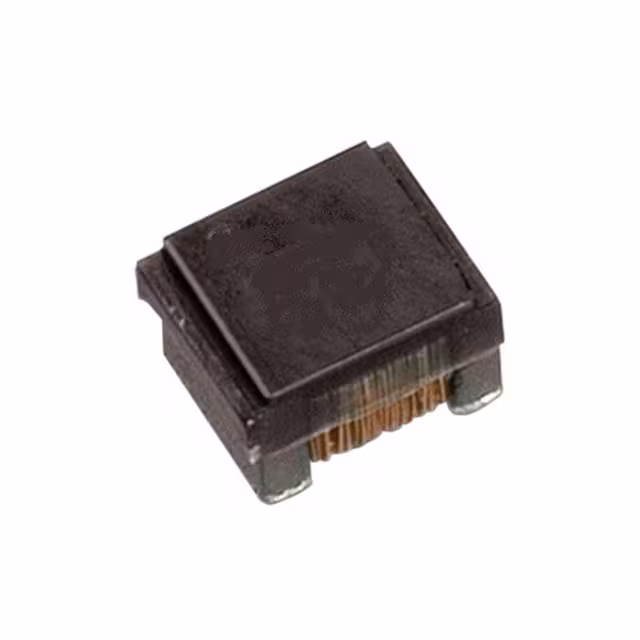

744762433AFIXED IND 33UH 85MA 6.5 OHM SMD |
1,175 |
|
Datasheet
|
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 85 mA | - | Unshielded | 6.5Ohm Max | 15 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
.jpg)
|

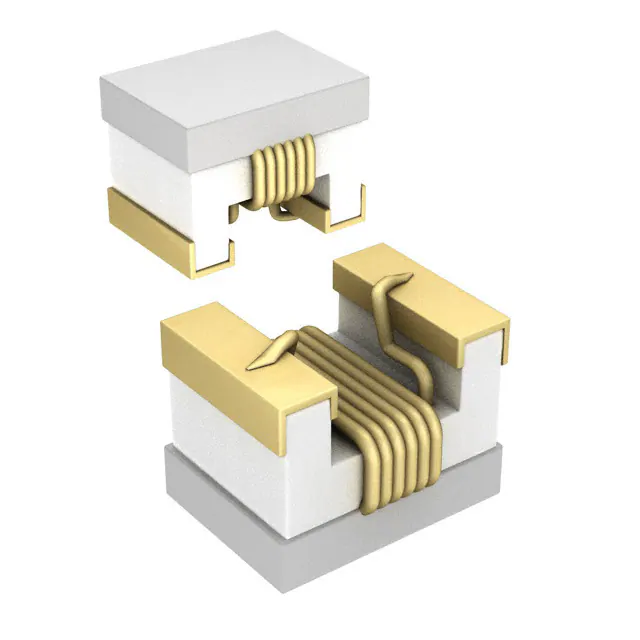

744760256AFIXED IND 560NH 450MA 1.1OHM SMD |
1,138 |
|
Datasheet
|
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 450 mA | - | Unshielded | 1.1Ohm Max | 45 @ 100MHz | 340MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
AISC-0603F-4R7J-TFIXED IND 4.7UH 160MA 2.7OHM SMD |
1,035 |
|
Datasheet
|
AISC-0603F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 160 mA | - | Unshielded | 2.7Ohm Max | - | 50MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.039" W (1.60mm x 1.00mm) | 0.047" (1.20mm) |
|

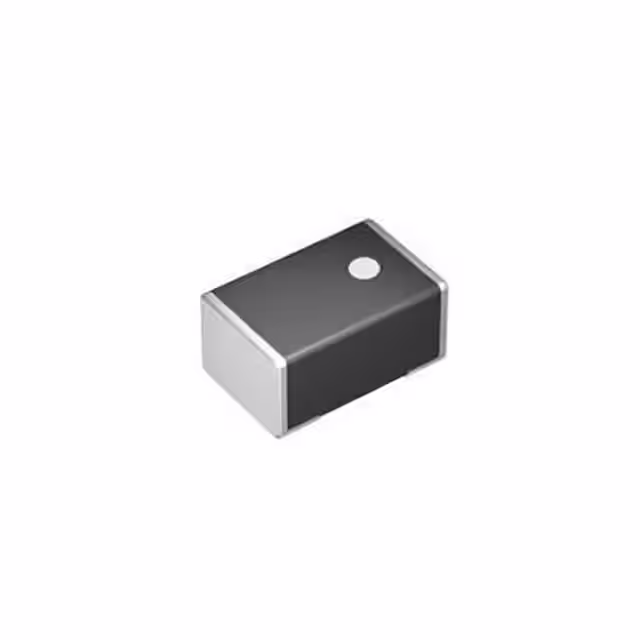

MCEK1210T1R5MHNFIXED IND 1.5UH 900MA 240MOHM SM |
1,021 |
|
Datasheet
|
MCOIL™, MC | 0504 (1210 Metric) | Tape & Reel (TR) | Active | Multilayer | Metal | 1.5 µH | ±20% | 900 mA | 1.2A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0504 | 0.049" L x 0.041" W (1.25mm x 1.05mm) | 0.020" (0.50mm) |
 MHQ Series.jpg)
|

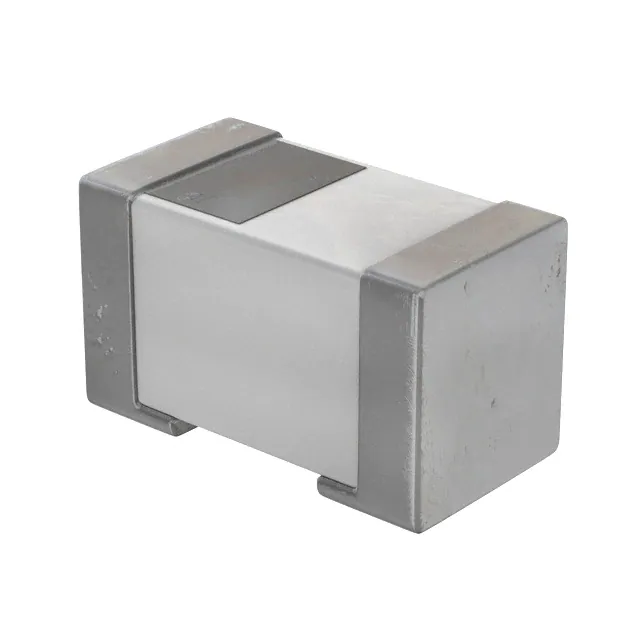

MHQ0603P4N2BT000FIXED IND 4.2NH 400MA 350MOHM SM |
14,677 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.2 nH | ±0.1nH | 400 mA | - | Unshielded | 350mOhm Max | 16 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P1N3BT000FIXED IND 1.3NH 800MA 100MOHM SM |
13,107 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.3 nH | ±0.1nH | 800 mA | - | Unshielded | 100mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N9BT000FIXED IND 2.9NH 450MA 300MOHM SM |
12,934 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.9 nH | ±0.1nH | 450 mA | - | Unshielded | 300mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P5N1HT000FIXED IND 5.1NH 350MA 400MOHM SM |
11,865 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 5.1 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 16 @ 500MHz | 5.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N1BT000FIXED IND 2.1NH 700MA 150MOHM SM |
10,485 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.1 nH | ±0.1nH | 700 mA | - | Unshielded | 150mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P6N2HT000FIXED IND 6.2NH 300MA 700MOHM SM |
10,417 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 6.2 nH | ±3% | 300 mA | - | Unshielded | 700mOhm Max | 16 @ 500MHz | 4GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P3N1BT000FIXED IND 3.1NH 450MA 300MOHM SM |
10,382 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.1 nH | ±0.1nH | 450 mA | - | Unshielded | 300mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P2N8BT000FIXED IND 2.8NH 500MA 250MOHM SM |
9,310 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.8 nH | ±0.1nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P4N3HT000FIXED IND 4.3NH 400MA 350MOHM SM |
9,273 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.3 nH | ±3% | 400 mA | - | Unshielded | 350mOhm Max | 16 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ0603P4N7HT000FIXED IND 4.7NH 350MA 400MOHM SM |
8,586 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.7 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 16 @ 500MHz | 5.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
.jpg)
|
B82422A3821K100FIXED IND 820NH 140MA 2.5OHM SMD |
4,987 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±10% | 140 mA | - | Unshielded | 2.5Ohm Max | 22 @ 30MHz | 240MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|

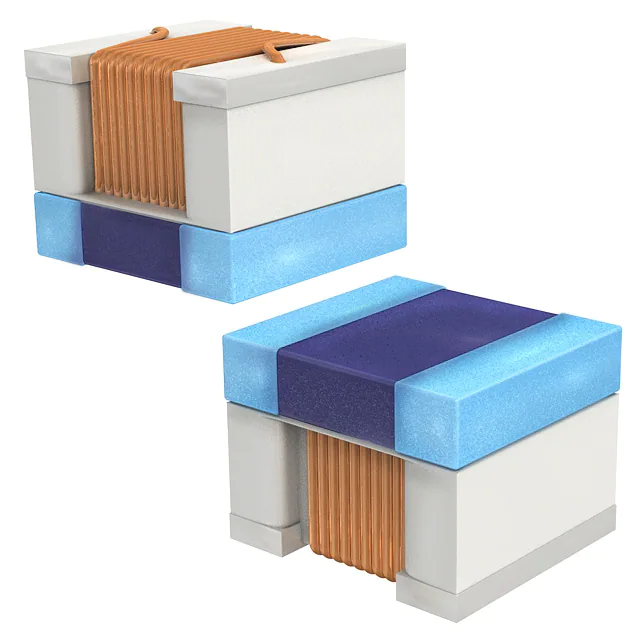

LQW2BAN7N5J00LFIXED IND 7.5NH 2.4A 40MOHM SMD |
4,130 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 7.5 nH | ±5% | 2.4 A | - | Unshielded | 40mOhm Max | 85 @ 1GHz | 3.9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
B82422A3100K100FIXED IND 10NH 750MA 90 MOHM SMD |
3,980 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±10% | 750 mA | - | Unshielded | 90mOhm Max | 20 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1473K000FIXED IND 47UH 60MA 7 OHM SMD |
3,927 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 60 mA | - | Unshielded | 7Ohm Max | 27 @ 2.52MHz | 15MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
