Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0580.153NLFIXED IND 15UH 850MA 197MOHM SMD |
5,660 |
|
Datasheet
|
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 15 µH | ±15% | 850 mA | 850mA | Unshielded | 197mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.103NLFIXED IND 10UH 1.1A 132 MOHM SMD |
5,660 |
|
Datasheet
|
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±15% | 1.1 A | 1.1A | Unshielded | 132mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.563NLFIXED IND 56UH 460MA 700MOHM SMD |
5,370 |
|
Datasheet
|
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 56 µH | ±15% | 460 mA | 460mA | Unshielded | 700mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
PF0580.382NLFIXED IND 3.8UH 1.7A 68 MOHM SMD |
2,793 |
|
Datasheet
|
PF0580NL | Nonstandard | Tray | Active | Wirewound | - | 3.8 µH | ±15% | 1.7 A | 1.7A | Unshielded | 68mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
.jpg)
|
B82422A1682J100FIXED IND 6.8UH 135MA 2.8OHM SMD |
7,513 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±5% | 135 mA | - | Unshielded | 2.8Ohm Max | 27 @ 7.96MHz | 90MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A3120K100FIXED IND 12NH 700MA 100MOHM SMD |
6,729 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±10% | 700 mA | - | Unshielded | 100mOhm Max | 25 @ 100MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
VLS3012ET-220M-CAFIXED IND 22UH 610MA 756MOHM SMD |
4,328 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 610 mA | 440mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
VLS2010ET-220M-CAFIXED IND 22UH 350MA 2.04OHM SMD |
4,000 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 350 mA | 330mA | Shielded | 2.04Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
VLS201612ET-R47N-CAFIXED IND 470NH 2A 63 MOHM SMD |
3,422 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 2 A | 1.9A | Shielded | 63mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
LMLP0405M6R8DTASFIXED IND 6.8UH 1.5A 175MOHM SMD |
2,931 |
|
Datasheet
|
LMLP | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 1.5 A | 2.5A | Shielded | 175mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.157" W (4.45mm x 4.00mm) | 0.079" (2.00mm) |
|
|
VLS2010ET-150M-CAFIXED IND 15UH 410MA 1.476OHM SM |
2,518 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 410 mA | 400mA | Shielded | 1.476Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.039" (1.00mm) |
|
LQW2BAN75NG00LFIXED IND 75NH 1.1A 280MOHM SMD |
2,364 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 75 nH | ±2% | 1.1 A | - | Unshielded | 280mOhm Max | 68 @ 500MHz | 1.45GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
VLS2012ET-4R7M-CAFIXED IND 4.7UH 840MA 336MOHM SM |
2,000 |
|
Datasheet
|
VLS-E-CA | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 840 mA | 700mA | Shielded | 336mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
LCXND5050PKT3R3NMGFIXED IND 3.3UH 1.7A 96 MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±30% | 1.7 A | 2.35A | Unshielded | 80mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LCXND5050PKTR47NMGFIXED IND 470NH 3.3A 30 MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 nH | ±30% | 3.3 A | 5.8A | Unshielded | 25mOhm | - | 185MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LCXND5050MKT1R5NMGFIXED IND 1.5UH 2.2A 84 MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1.5 µH | ±30% | 2.2 A | 3.8A | Unshielded | 70mOhm | - | 86MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|
LCXND5050PKT220MMGFIXED IND 22UH 550MA 540MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±20% | 550 mA | 900mA | Unshielded | 450mOhm | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
LCXND5050PKT4R7NMGFIXED IND 4.7UH 1.4A 120MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±30% | 1.4 A | 2.05A | Unshielded | 100mOhm | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|

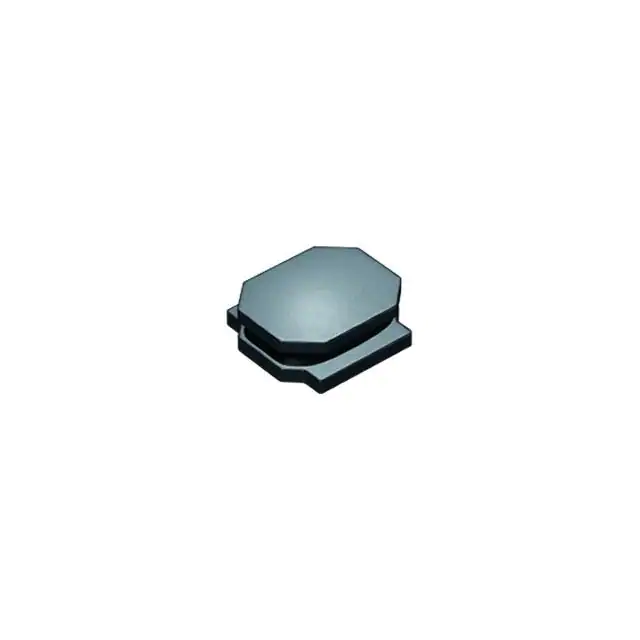

LCXND5050MKT3R3MMGFIXED IND 3.3UH 1.45A 192MOHM SM |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.45 A | 2.4A | Unshielded | 160mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|

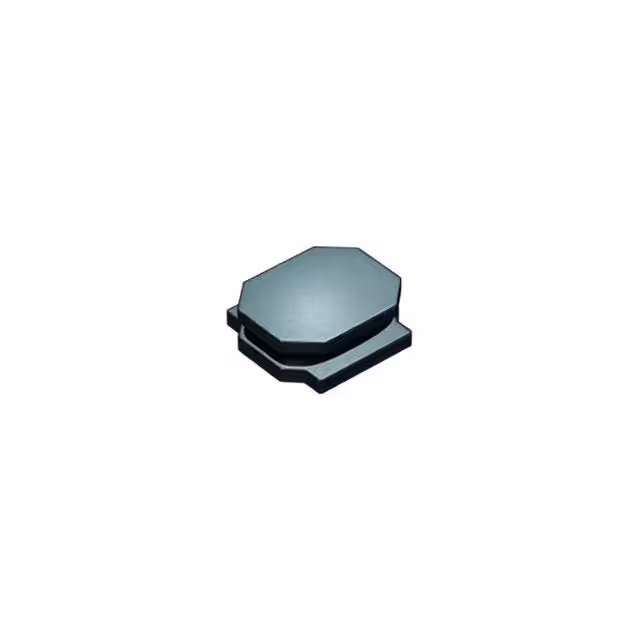

LCXND5050MKT150MMGFIXED IND 15UH 640MA 804MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 640 mA | 1.2A | Unshielded | 670mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
