Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW2BAN62NJ00LFIXED IND 62NH 1.65A 120MOHM SMD |
3,353 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 62 nH | ±5% | 1.65 A | - | Unshielded | 120mOhm Max | 70 @ 500MHz | 1.47GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BANR20J00LFIXED IND 200NH 750MA 630MOHM SM |
3,066 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 200 nH | ±5% | 750 mA | - | Unshielded | 630mOhm Max | 53 @ 250MHz | 920MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|

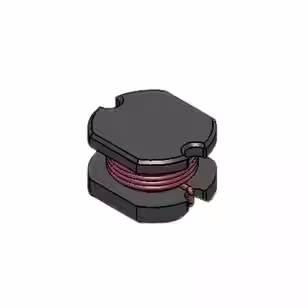

CD30D22HF-4R7MCFIXED IND 4.7UH 1.42A 140MOHM SM |
2,729 |
|
Datasheet
|
CD30D22 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.42 A | 1.49A | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.098" (2.50mm) |
 MHQ Series.jpg)
|
MHQ0603P1N9BT000FIXED IND 1.9NH 700MA 120MOHM SM |
2,603 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.9 nH | ±0.1nH | 700 mA | - | Unshielded | 120mOhm Max | 16 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
LQW2BAN13NJ00LFIXED IND 13NH 2.4A 40 MOHM SMD |
2,000 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 13 nH | ±5% | 2.4 A | - | Unshielded | 40mOhm Max | 80 @ 500MHz | 3.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|

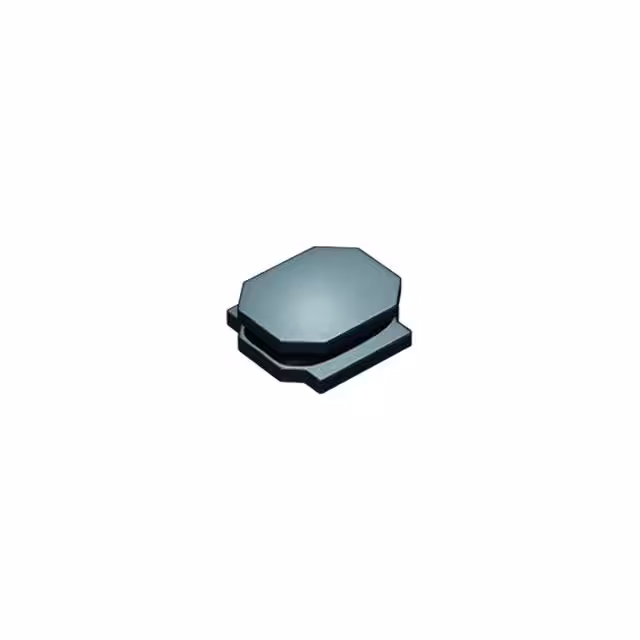

LCXND5050KKT3R3MMGFIXED IND 3.3UH 1.25A 150MOHM SM |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±20% | 1.25 A | 1.4A | Unshielded | 125mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.039" (1.00mm) |
|
LCXND5050MKT6R8MMGFIXED IND 6.8UH 1.1A 312MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.1 A | 1.7A | Unshielded | 260mOhm | - | 36MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.047" (1.20mm) |
|

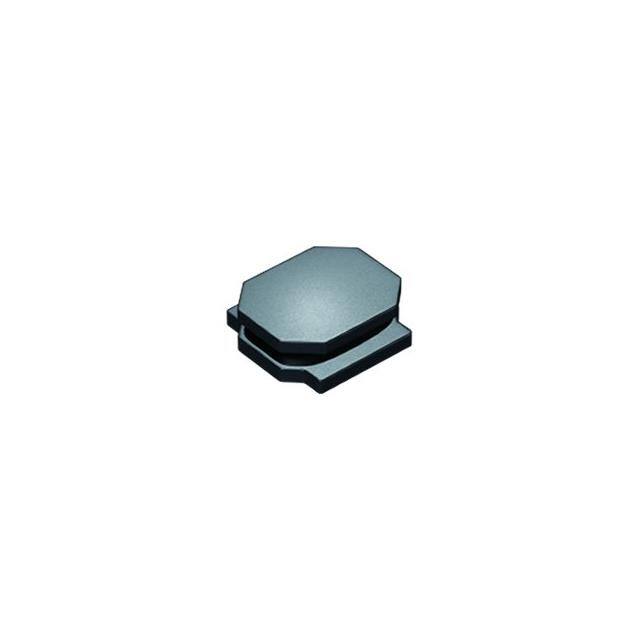

LCXND5050PKT150MMGFIXED IND 15UH 650MA 384MOHM SMD |
2,000 |
|
Datasheet
|
LCXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 650 mA | 1.1A | Unshielded | 320mOhm | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.055" (1.40mm) |
|
|
LQW2BAN12NJ00LFIXED IND 12NH 2.4A 40 MOHM SMD |
1,985 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 12 nH | ±5% | 2.4 A | - | Unshielded | 40mOhm Max | 80 @ 500MHz | 4.3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BANR18J00LFIXED IND 180NH 800MA 580MOHM SM |
1,750 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 180 nH | ±5% | 800 mA | - | Unshielded | 580mOhm Max | 53 @ 250MHz | 920MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
SRN4018-1R2YFIXED IND 1.2UH 3.5A 25 MOHM SMD |
1,717 |
|
Datasheet
|
SRN4018 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±30% | 3.5 A | 4A | Shielded | 25mOhm Max | 9 @ 7.96MHz | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQW2BAN36NJ00LFIXED IND 36NH 1.9A 80 MOHM SMD |
1,587 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 36 nH | ±5% | 1.9 A | - | Unshielded | 80mOhm Max | 75 @ 500MHz | 1.9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|
|
LQW2BANR11J00LFIXED IND 110NH 970MA 380MOHM SM |
1,584 |
|
Datasheet
|
LQW2 | 0805 (2015 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 110 nH | ±5% | 970 mA | - | Unshielded | 380mOhm Max | 57 @ 250MHz | 1.2GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.082" L x 0.060" W (2.09mm x 1.53mm) | 0.060" (1.52mm) |
|

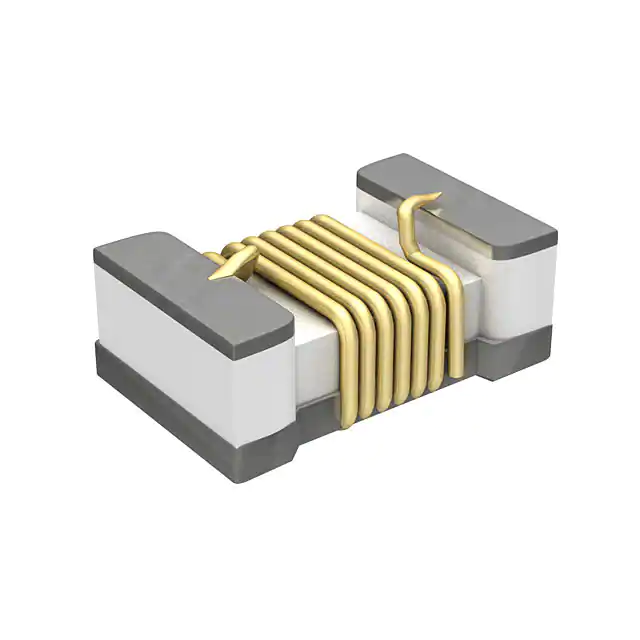

LQW04AN39NH20DFIXED IND 39NH 150MA 1.5 OHM SMD |
9,985 |
|
Datasheet
|
LQW04 | 0302 (0804 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 39 nH | ±3% | 150 mA | - | Unshielded | 1.5Ohm Max | 19 @ 250MHz | 3.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 03015 (0804 Metric) | 0.031" L x 0.016" W (0.80mm x 0.40mm) | 0.018" (0.45mm) |
.jpg)
|
B82422A1122K100FIXED IND 1.2UH 370MA 370MOHM SM |
9,541 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±10% | 370 mA | - | Unshielded | 370mOhm Max | 20 @ 7.96MHz | 300MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A3561K100FIXED IND 560NH 150MA 2.2OHM SMD |
7,656 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±10% | 150 mA | - | Unshielded | 2.2Ohm Max | 22 @ 30MHz | 400MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|

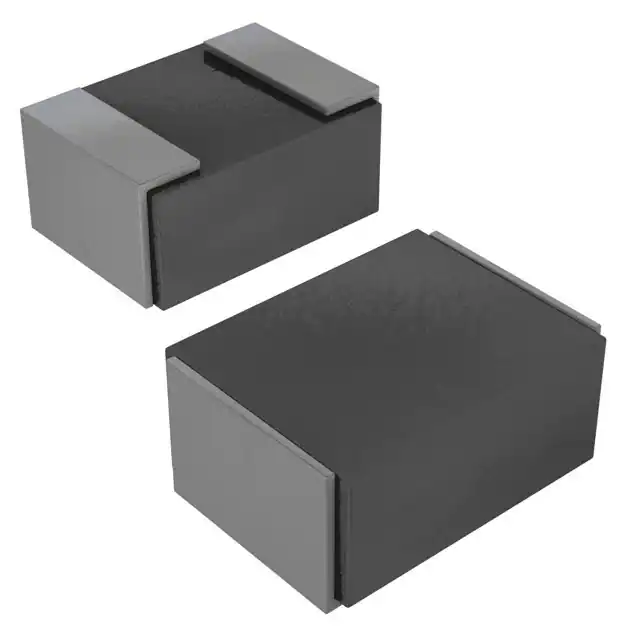

SRP2010-R24MFIXED IND 240NH 4.5A 21 MOHM SMD |
5,620 |
|
Datasheet
|
SRP2010 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 240 nH | ±20% | 4.5 A | 5.6A | Shielded | 21mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
B82422T1151J000FIXED IND 150NH 450MA 180MOHM SM |
5,487 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±5% | 450 mA | - | Unshielded | 180mOhm | 30 @ 7.96MHz | 250MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1183K100FIXED IND 18UH 155MA 2 OHM SMD |
4,719 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 155 mA | - | Unshielded | 2Ohm Max | 27 @ 2.52MHz | 17MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
SRP2010-R33MFIXED IND 330NH 3.8A 29 MOHM SMD |
4,670 |
|
Datasheet
|
SRP2010 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 3.8 A | 5A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
