Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWCS00292821R39J00INDUCTOR RF |
4,000 |
|
Datasheet
|
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±5% | 470 mA | - | Unshielded | 1.12Ohm Max | 45 @ 100MHz | 500MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
BWCS00292821R27J00INDUCTOR RF |
4,000 |
|
Datasheet
|
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 270 nH | ±5% | 500 mA | - | Unshielded | 910mOhm Max | 45 @ 100MHz | 600MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|

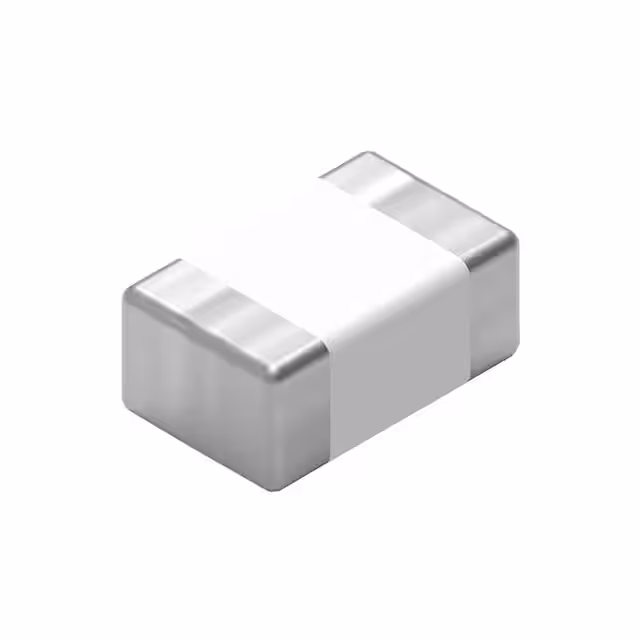

7447880015WE-MK MULTILAYER CERAMIC SMT IND |
3,994 |
|
Datasheet
|
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 300 mA | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
BWCS002928211R5J00INDUCTOR RF |
3,986 |
|
Datasheet
|
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.5 µH | ±5% | 330 mA | - | Unshielded | 2.3Ohm Max | 28 @ 50MHz | 200MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
7447880156WE-MK MULTILAYER CERAMIC SMT IND |
3,983 |
|
Datasheet
|
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 56 nH | ±5% | 300 mA | - | Unshielded | 750mOhm Max | 18 @ 100MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
BWCS00292821R68J00INDUCTOR RF |
3,953 |
|
Datasheet
|
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 400 mA | - | Unshielded | 1.47Ohm Max | 45 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
BWCS00292821R18G00FIXED IND 180NH 620MA 770MOHM SM |
3,937 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±2% | 620 mA | - | Unshielded | 770mOhm Max | 45 @ 100MHz | 750MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1411 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
7447880110WE-MK MULTILAYER CERAMIC SMT IND |
3,931 |
|
Datasheet
|
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 300mOhm Max | 15 @ 100MHz | 2.1GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
MHQ0603P2N8BTD25FIXED IND 2.8NH 500MA 250MOHM SM |
3,891 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.8 nH | ±0.1nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
LQW18ASR39G0ZDFIXED IND 390NH 100MA 4.35OHM SM |
3,885 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 390 nH | ±2% | 100 mA | - | Unshielded | 4.35Ohm Max | 25 @ 100MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
.jpg)
|
744786015AFIXED IND 1.5NH 600MA 100MOHM SM |
3,820 |
|
Datasheet
|
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.5 nH | ±0.3nH | 600 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
7447880133WE-MK MULTILAYER CERAMIC SMT IND |
3,815 |
|
Datasheet
|
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 18 @ 100MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
7447880082WE-MK MULTILAYER CERAMIC SMT IND |
3,750 |
|
Datasheet
|
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±5% | 300 mA | - | Unshielded | 280mOhm Max | 15 @ 100MHz | 2.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
MHQ0603P5N6HTD25FIXED IND 5.6NH 350MA 400MOHM SM |
3,690 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 5.6 nH | ±3% | 350 mA | - | Unshielded | 400mOhm Max | 16 @ 500MHz | 5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
NRV3012T100MFIXED IND 10UH 640MA 564MOHM SMD |
3,637 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 640 mA | 800mA | Shielded | 564mOhm Max | - | 32MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
BWCS002928211R8G00FIXED IND 1.8UH 300MA 2.6OHM SMD |
3,506 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.8 µH | ±2% | 300 mA | - | Unshielded | 2.6Ohm Max | 28 @ 50MHz | 160MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1411 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
|
7447880210WE-MK MULTILAYER CERAMIC SMT IND |
3,490 |
|
Datasheet
|
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±5% | 300 mA | - | Unshielded | 900mOhm Max | 18 @ 100MHz | 600MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
LRW0603WJ6N8GG001EFIXED IND 6.8NH 700MA 110MOHM SM |
3,295 |
|
Datasheet
|
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 700 mA | - | Unshielded | 110mOhm Max | 30 @ 250MHz | 4.6GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
LQW15AN2N5C8ZDFIXED IND 2.5NH 2.1A 0.03OHM SMD |
3,281 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 2.5 nH | ±0.2nH | 2.1 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 15.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
 MHQ Series.jpg)
|
MHQ1005P2N4ST000FIXED IND 2.4NH 1A 60 MOHM SMD |
3,266 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.4 nH | ±0.3nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 6.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
