Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BWCS00231715R82J00INDUCTOR RF |
1,940 |
|
Datasheet
|
BWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 2.35Ohm Max | 23 @ 50MHz | 215MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
LQW18AN19NJ80DFIXED IND 19NH 1.4A 0.075OHM SMD |
1,695 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 19 nH | ±5% | 1.4 A | - | Unshielded | 75mOhm Max | 40 @ 250MHz | 4.6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.065" L x 0.039" W (1.65mm x 0.99mm) | 0.039" (1.00mm) |
|
744784210AFIXED IND 100NH 150MA 2.5OHM SMD |
1,632 |
|
Datasheet
|
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 100 nH | ±5% | 150 mA | - | Unshielded | 2.5Ohm Max | 8 @ 100MHz | 700MHz | AEC-Q200 | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
BWCS00231715R12J00INDUCTOR RF |
1,332 |
|
Datasheet
|
BWCS | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 400 mA | - | Unshielded | 510mOhm Max | 50 @ 250MHz | 1.1GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS00231715R56G00FIXED IND 560NH 230MA 1.9OHM SMD |
1,306 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±2% | 230 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 340MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
 MHQ Series.jpg)
|
MHQ1005P4N3CT000FIXED IND 4.3NH 800MA 100MOHM SM |
1,173 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 4.3 nH | ±0.2nH | 800 mA | - | Unshielded | 100mOhm Max | 23 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LRW0603WJR47GG001EFIXED IND 470NH 100MA 5.6OHM SMD |
22,705 |
|
Datasheet
|
- | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 100 mA | - | Unshielded | 5.6Ohm Max | 23 @ 100MHz | 700MHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
MHQ0603P3N6BTD25FIXED IND 3.6NH 500MA 250MOHM SM |
22,182 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.6 nH | ±0.1nH | 500 mA | - | Unshielded | 250mOhm Max | 16 @ 500MHz | 6.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MHQ1005P1N0ST000FIXED IND 1NH 1.2A 30 MOHM SMD |
20,740 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1 nH | ±0.3nH | 1.2 A | - | Unshielded | 30mOhm Max | - | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

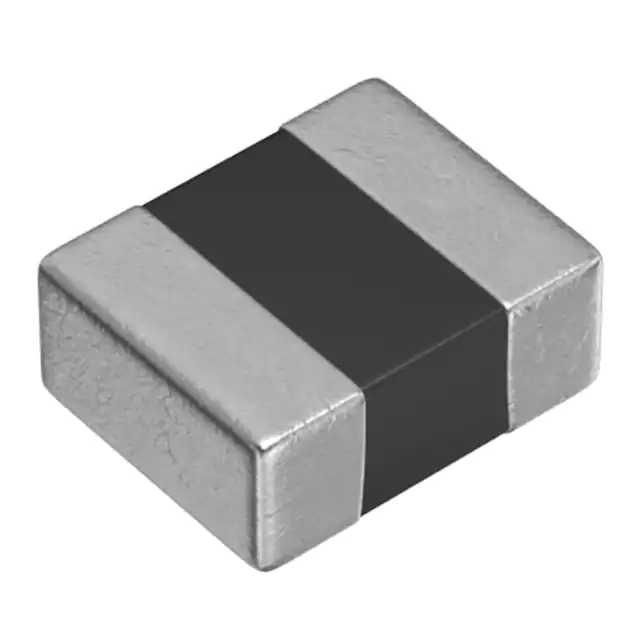

MLP2016S4R7MT0S1FIXED IND 4.7UH 800MA 351MOHM SM |
19,271 |
|
Datasheet
|
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 800 mA | - | Shielded | 351mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
MLG0603P75NJTD25FIXED IND 75NH 80MA 4 OHM SMD |
14,785 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 75 nH | ±5% | 80 mA | - | Unshielded | 4Ohm Max | 9 @ 300MHz | 1GHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603P39NJTD25FIXED IND 39NH 120MA 2.4 OHM SMD |
14,741 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 39 nH | ±5% | 120 mA | - | Unshielded | 2.4Ohm Max | 10 @ 300MHz | 1.8GHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603P12NJTD25FIXED IND 12NH 250MA 1.1 OHM SMD |
11,380 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 12 nH | ±5% | 250 mA | - | Unshielded | 1.1Ohm Max | 14 @ 500MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603PR10JTD25FIXED IND 100NH 80MA 4.5 OHM SMD |
11,208 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 100 nH | ±5% | 80 mA | - | Unshielded | 4.5Ohm Max | 9 @ 300MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MHQ0603P13NHTD25FIXED IND 13NH 180MA 1.5 OHM SMD |
10,900 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 13 nH | ±3% | 180 mA | - | Unshielded | 1.5Ohm Max | 16 @ 500MHz | 3.2GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
|
MLG0603P13NJTD25FIXED IND 13NH 250MA 1.1 OHM SMD |
10,573 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 13 nH | ±5% | 250 mA | - | Unshielded | 1.1Ohm Max | 14 @ 500MHz | 3.2GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LQW15AN14NJ8ZDFIXED IND 14NH 1.15A 0.111OHM SM |
9,944 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 14 nH | ±5% | 1.15 A | - | Unshielded | 111mOhm Max | 31 @ 250MHz | 5.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005PR16HT000FIXED IND 160NH 90MA 5.8 OHM SMD |
9,710 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 160 nH | ±3% | 90 mA | - | Unshielded | 5.8Ohm Max | 22 @ 250MHz | 700MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005PR43HT000FIXED IND 430NH 70MA 9.6 OHM SMD |
9,419 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 430 nH | ±3% | 70 mA | - | Unshielded | 9.6Ohm Max | 13 @ 100MHz | 380MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN30NJ80DFIXED IND 30NH 660MA 0.309OHM SM |
9,011 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 30 nH | ±5% | 660 mA | - | Unshielded | 309mOhm Max | 30 @ 250MHz | 3.8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
