Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MHQ0603P10NHTD25FIXED IND 10NH 240MA 1.2 OHM SMD |
1,029 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 10 nH | ±3% | 240 mA | - | Unshielded | 1.2Ohm Max | 16 @ 500MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|
BWCS0016100818NG00FIXED IND 18NH 700MA 170MOHM SMD |
43,001 |
|
Datasheet
|
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 700 mA | - | Unshielded | 170mOhm Max | 35 @ 250MHz | 3.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS00161008R11G00FIXED IND 110NH 300MA 610MOHM SM |
40,950 |
|
Datasheet
|
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 110 nH | ±2% | 300 mA | - | Unshielded | 610mOhm Max | 32 @ 150MHz | 1.35GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS00161008R33G00FIXED IND 330NH 100MA 3.89OHM SM |
38,525 |
|
Datasheet
|
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 100 mA | - | Unshielded | 3.89Ohm Max | 25 @ 100MHz | 900MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS00231715R22G00FIXED IND 220NH 400MA 700MOHM SM |
37,341 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±2% | 400 mA | - | Unshielded | 700mOhm Max | 50 @ 250MHz | 850MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS00231715R47G00FIXED IND 470NH 250MA 1.76OHM SM |
35,619 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±2% | 250 mA | - | Unshielded | 1.76Ohm Max | 33 @ 100MHz | 450MHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS00161008R10G00FIXED IND 100NH 400MA 580MOHM SM |
34,727 |
|
Datasheet
|
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 400 mA | - | Unshielded | 580mOhm Max | 34 @ 150MHz | 1.4GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
 MHQ Series.jpg)
|
MHQ1005P3N3ST000FIXED IND 3.3NH 900MA 80MOHM SMD |
20,210 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 3.3 nH | ±0.3nH | 900 mA | - | Unshielded | 80mOhm Max | 23 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

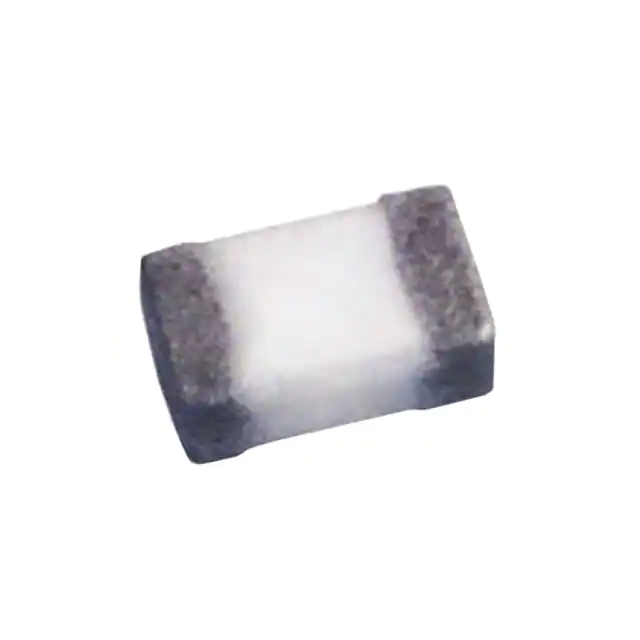

744784110AFIXED IND 10NH 300MA 400MOHM SMD |
18,339 |
|
Datasheet
|
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 10 nH | ±5% | 300 mA | - | Unshielded | 400mOhm Max | 8 @ 100MHz | 3.2GHz | AEC-Q200 | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
744784182AFIXED IND 82NH 150MA 2.4 OHM SMD |
16,450 |
|
Datasheet
|
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 82 nH | ±5% | 150 mA | - | Unshielded | 2.4Ohm Max | 8 @ 100MHz | 750MHz | AEC-Q200 | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
MLF1005VR47JTD25FIXED IND 470NH 120MA 1.5OHM SMD |
15,661 |
|
Datasheet
|
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±5% | 120 mA | - | Shielded | 1.5Ohm Max | 15 @ 25MHz | 190MHz | AEC-Q200 | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|

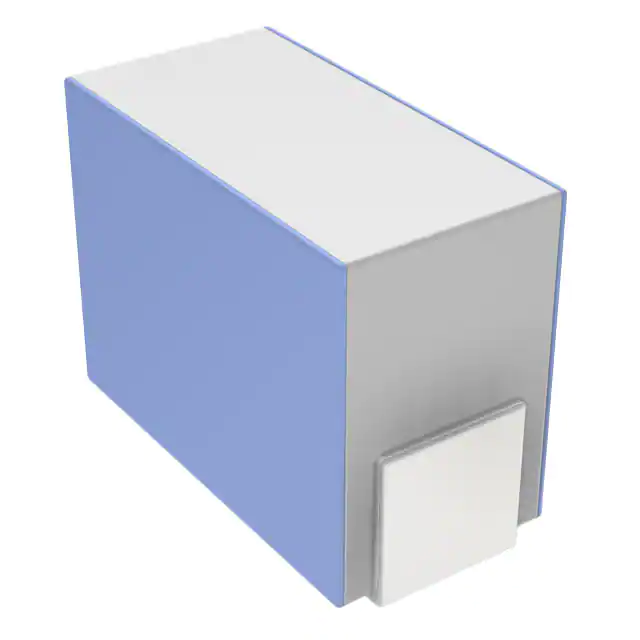

LQP02HQ56NH02EFIXED IND 56NH 100MA SMD |
14,766 |
|
Datasheet
|
LQP03 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 56 nH | ±3% | 100 mA | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HQ27NH02EFIXED IND 27NH 120MA SMD |
14,660 |
|
Datasheet
|
LQP03 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 27 nH | ±3% | 120 mA | - | Unshielded | - | - | - | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
LQP02HQ2N5W02LFIXED IND 2.5NH 450MA 200MOHM SM |
14,505 |
|
Datasheet
|
LQP03 | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 2.5 nH | ±0.05nH | 450 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 9.5GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.013" (0.32mm) |
|
|
744784022AFIXED IND 2.2NH 300MA 160MOHM SM |
13,895 |
|
Datasheet
|
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
BWCS0016100822NG00FIXED IND 22NH 700MA 190MOHM SMD |
10,512 |
|
Datasheet
|
BWCS | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 700 mA | - | Unshielded | 190mOhm Max | 38 @ 250MHz | 3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.040" W (1.60mm x 1.02mm) | 0.040" (1.02mm) |
|
|
BWCS0023171582NG00FIXED IND 82NH 400MA 420MOHM SMD |
10,000 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±2% | 400 mA | - | Unshielded | 420mOhm Max | 65 @ 500MHz | 1.3GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
BWCS00231715R15G00FIXED IND 150NH 400MA 560MOHM SM |
10,000 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic | 150 nH | ±2% | 400 mA | - | Unshielded | 560mOhm Max | 50 @ 250MHz | 920MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
|
|
MHQ1005PR22HT000FIXED IND 220NH 80MA 6.6 OHM SMD |
9,437 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 220 nH | ±3% | 80 mA | - | Unshielded | 6.6Ohm Max | 18 @ 250MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
BWCS00231715R33G00FIXED IND 330NH 310MA 1.4OHM SMD |
9,400 |
|
Datasheet
|
BWCS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 330 nH | ±2% | 310 mA | - | Unshielded | 1.4Ohm Max | 48 @ 250MHz | 600MHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0907 | 0.093" L x 0.068" W (2.35mm x 1.73mm) | 0.060" (1.52mm) |
