Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

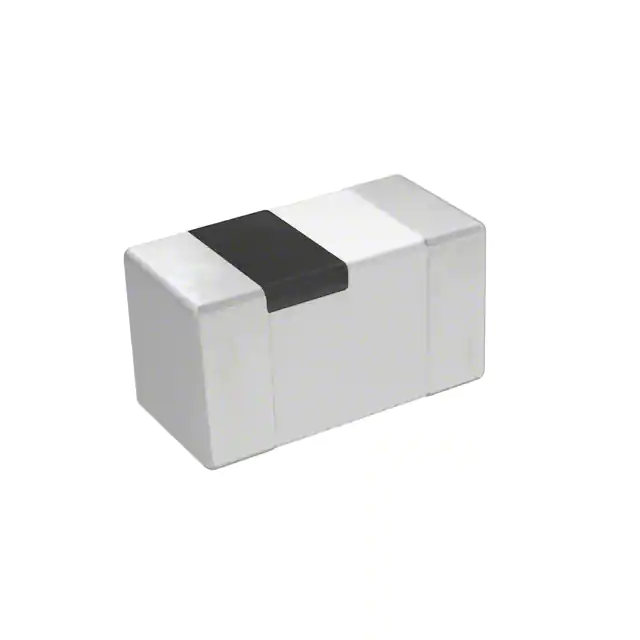

MLG0603P56NJTD25FIXED IND 56NH 100MA 3.5 OHM SMD |
1,375 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 56 nH | ±5% | 100 mA | - | Unshielded | 3.5Ohm Max | 10 @ 300MHz | 1.4GHz | AEC-Q200 | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603P9N1JTD25FIXED IND 9.1NH 250MA 900MOHM SM |
1,031 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 9.1 nH | ±5% | 250 mA | - | Unshielded | 900mOhm Max | 14 @ 500MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
 MHQ Series.jpg)
|
MHQ0603P1N1BT000FIXED IND 1.1NH 1A 70 MOHM SMD |
37,606 |
|
Datasheet
|
MHQ-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 1.1 nH | ±0.1nH | 1 A | - | Unshielded | 70mOhm Max | - | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.026" L x 0.014" W (0.65mm x 0.35mm) | 0.016" (0.40mm) |
|

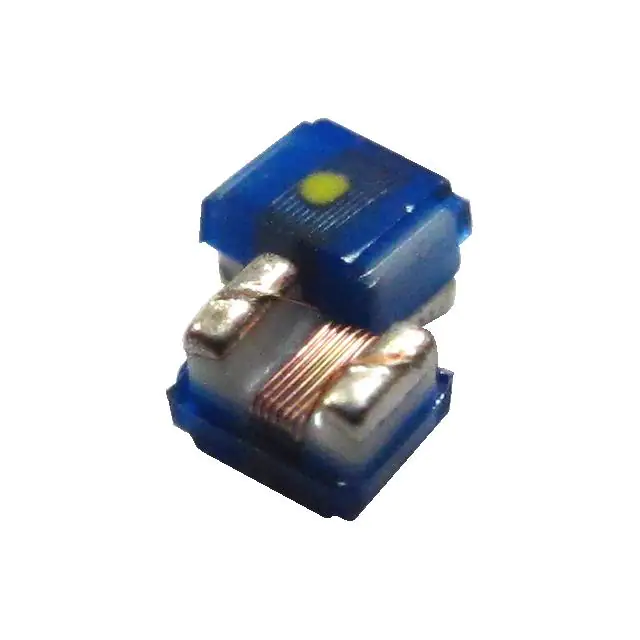

BWCS0029282147NJ00INDUCTOR RF |
31,740 |
|
Datasheet
|
BWCS | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 1 A | - | Unshielded | 160mOhm Max | 65 @ 350MHz | 1.5GHz | - | -40°C ~ 125°C | 50 MHz | - | Surface Mount | 1008 | 0.115" L x 0.110" W (2.92mm x 2.79mm) | 0.083" (2.10mm) |
|
LQW15AN4N0C8ZDFIXED IND 4NH 1.95A 0.03OHM SMD |
23,537 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4 nH | ±0.2nH | 1.95 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN1N6D8ZDFIXED IND 1.6NH 1.45A 0.045OHM |
14,940 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 1.6 nH | ±0.5nH | 1.45 A | - | Unshielded | 45mOhm Max | 20 @ 250MHz | 18GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MLG0603P3N3CTD25FIXED IND 3.3NH 450MA 200MOHM SM |
13,007 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 3.3 nH | ±0.2nH | 450 mA | - | Unshielded | 200mOhm Max | 14 @ 500MHz | 7.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
MLG0603P2N2CTD25FIXED IND 2.2NH 600MA 100MOHM SM |
12,056 |
|
Datasheet
|
MLG-P | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Multilayer | Non-Magnetic | 2.2 nH | ±0.2nH | 600 mA | - | Unshielded | 100mOhm Max | 14 @ 500MHz | 7.5GHz | AEC-Q200 | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
LQM18NNR82K00DFIXED IND 820NH 35MA 2.1 OHM SMD |
11,971 |
|
Datasheet
|
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 820 nH | ±10% | 35 mA | - | Shielded | 2.1Ohm Max | 15 @ 25MHz | 85MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AN7N0J8ZDFIXED IND 7NH 1.42A 0.069OHM SMD |
10,446 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 7 nH | ±5% | 1.42 A | - | Unshielded | 69mOhm Max | 33 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N3C8ZDFIXED IND 4.3NH 1.8A 0.044OHM SM |
10,292 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.3 nH | ±0.2nH | 1.8 A | - | Unshielded | 44mOhm Max | 32 @ 250MHz | 9.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN5N5D8ZDFIXED IND 5.5NH 1.77A 0.04OHM SM |
10,005 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5.5 nH | ±0.5nH | 1.77 A | - | Unshielded | 40mOhm Max | 35 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN3N3D8ZDFIXED IND 3.3NH 2A 0.03OHM SMD |
9,950 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.3 nH | ±0.5nH | 2 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 14GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN6N0D8ZDFIXED IND 6NH 1.6A 0.056OHM SMD |
9,900 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6 nH | ±0.5nH | 1.6 A | - | Unshielded | 56mOhm Max | 32 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
LQW18AS12NJ0ZDFIXED IND 12NH 700MA 130MOHM SMD |
9,883 |
|
Datasheet
|
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 12 nH | ±5% | 700 mA | - | Unshielded | 130mOhm Max | 35 @ 250MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW15AN3N7D8ZDFIXED IND 3.7NH 1.95A 0.03OHM SM |
9,763 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.7 nH | ±0.5nH | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N5C8ZDFIXED IND 4.5NH 1.45A 0.06OHM SM |
9,700 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.5 nH | ±0.2nH | 1.45 A | - | Unshielded | 60mOhm Max | 34 @ 250MHz | 9.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N7D8ZDFIXED IND 4.7NH 1.2A 0.071OHM SM |
9,455 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.7 nH | ±0.5nH | 1.2 A | - | Unshielded | 71mOhm Max | 31 @ 250MHz | 8GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN5N0C80DFIXED IND 5NH 1.77A 0.04OHM SMD |
9,225 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 5 nH | ±0.2nH | 1.77 A | - | Unshielded | 40mOhm Max | 32 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
MHQ1005P2N4CT000FIXED IND 2.4NH 1A 60 MOHM SMD |
9,000 |
|
Datasheet
|
MHQ-P | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic, Non-Magnetic | 2.4 nH | ±0.2nH | 1 A | - | Unshielded | 60mOhm Max | 23 @ 250MHz | 6.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
