Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
LQW2UAS56NG0CLFIXED IND 56NH 1A 180 MOHM SMD |
11,674 |
|
Datasheet
|
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±2% | 1 A | - | Unshielded | 180mOhm Max | 65 @ 350MHz | 1.3GHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
0402HM-5N1EJTSFIXED IND 5.1NH 600MA 120MOHM SM |
10,945 |
|
Datasheet
|
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.1 nH | ±5% | 600 mA | - | Unshielded | 120mOhm | 25 @ 250MHz | 8GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
MWSD1005C24NKTM81FIXED IND 24NH 770MA 212MOHM SMD |
10,000 |
|
Datasheet
|
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 24 nH | ±10% | 770 mA | - | Unshielded | 212mOhm Max | 31 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|

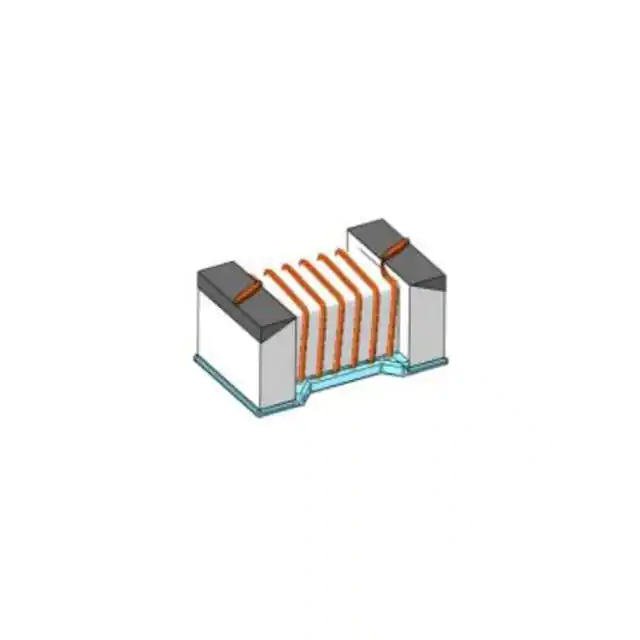

MWSD1005C11NJTFIXED IND 11NH 570MA 120MOHM SMD |
10,000 |
|
Datasheet
|
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±5% | 570 mA | - | Unshielded | 120mOhm Max | 26 @ 250MHz | 5.5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005C14NGTFIXED IND 14NH 430MA 210MOHM SMD |
9,950 |
|
Datasheet
|
MWSD-C | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 14 nH | ±2% | 430 mA | - | Unshielded | 210mOhm Max | 26 @ 250MHz | 5GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.026" (0.65mm) |
|
|
MWSD1005CR10GTM01FIXED IND 100NH 120MA 2.52OHM SM |
9,940 |
|
Datasheet
|
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 120 mA | - | Unshielded | 2.52Ohm Max | 20 @ 150MHz | 1.5GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
MWSD1005C17NGTM81FIXED IND 17NH 1A 130 MOHM SMD |
9,915 |
|
Datasheet
|
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 17 nH | ±2% | 1 A | - | Unshielded | 130mOhm Max | 31 @ 250MHz | 5.2GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
MWSD1005C4N1STM81FIXED IND 4.1NH 1.8A 44MOHM SMD |
9,720 |
|
Datasheet
|
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 4.1 nH | ±0.3nH | 1.8 A | - | Unshielded | 44mOhm Max | 30 @ 250MHz | 9.6GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
0402HM-130EHTSFIXED IND 13NH 430MA 210MOHM SMD |
9,534 |
|
Datasheet
|
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 13 nH | ±3% | 430 mA | - | Unshielded | 210mOhm | 25 @ 250MHz | 5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
MWSD1005C3N8STM81FIXED IND 3.8NH 1.95A 30MOHM SMD |
7,970 |
|
Datasheet
|
MWSD-C-M | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.8 nH | ±0.3nH | 1.95 A | - | Unshielded | 30mOhm Max | 35 @ 250MHz | 10GHz | - | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
0805CT-121EJTSFIXED IND 120NH 300MA 680MOHM SM |
7,811 |
|
Datasheet
|
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 120 nH | ±5% | 300 mA | - | Unshielded | 680mOhm | 40 @ 250MHz | 1.15GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|
|
0805CT-3N9EKTSFIXED IND 3.9NH 800MA 60MOHM SMD |
7,645 |
|
Datasheet
|
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±10% | 800 mA | - | Unshielded | 60mOhm | 60 @ 1GHz | 6.1GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|
|
0402HM-3N0EJTSFIXED IND 3NH 750MA 70 MOHM SMD |
7,585 |
|
Datasheet
|
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3 nH | ±5% | 750 mA | - | Unshielded | 70mOhm | 25 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
-,55.jpg)
|

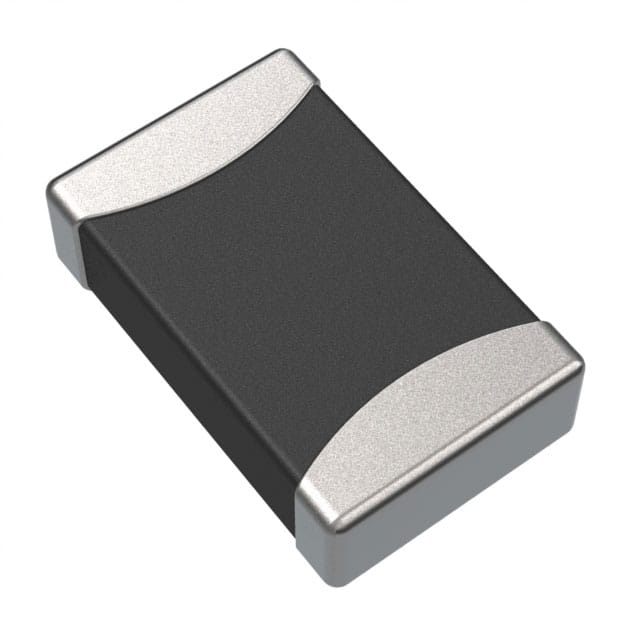

CVH201205-1R0MFIXED IND 1UH 800MA 237.5MOHM SM |
6,780 |
|
Datasheet
|
CVH201205 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 800 mA | - | Shielded | 237.5mOhm Max | - | 90MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.022" (0.55mm) |
|
LSANB2520KKTR33MFIXED IND 330NH 3.5A 38 MOHM SMD |
6,000 |
|
Datasheet
|
LSAN | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 3.5 A | 4.7A | Shielded | 38mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

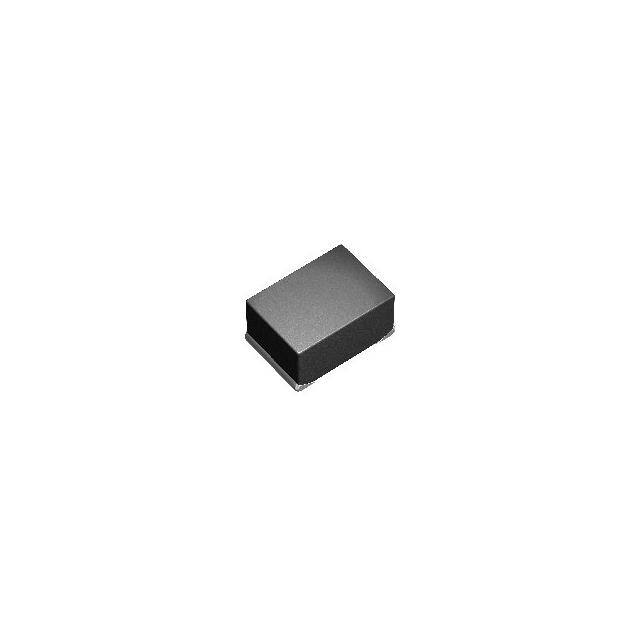

LSANB2016KKTR33MFIXED IND 330NH 3.2A 40 MOHM SMD |
5,900 |
|
Datasheet
|
LSAN | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 330 nH | ±20% | 3.2 A | 3.6A | Shielded | 40mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

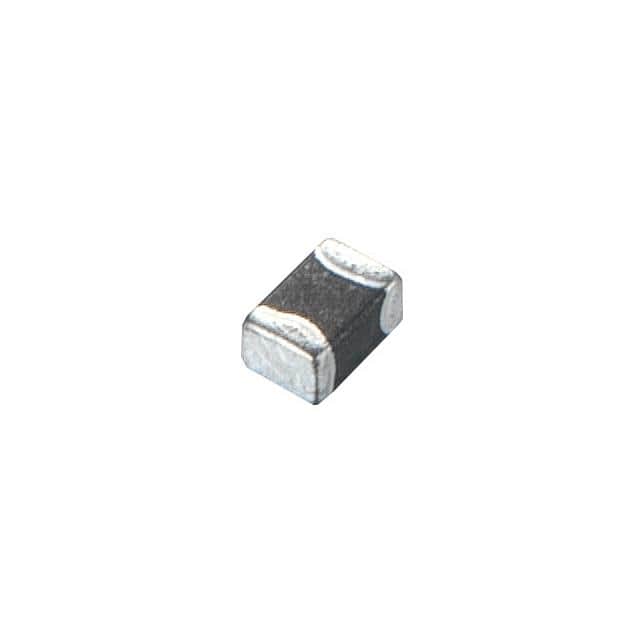

BSCL00321611100K00INDUCTOR RF |
5,670 |
|
Datasheet
|
BSCL | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±10% | 25 mA | - | Unshielded | 1Ohm Max | 45 @ 2MHz | 24MHz | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
BSCH00160808R27J00FIXED IND 270NH 150MA 2.2OHM SMD |
5,425 |
|
Datasheet
|
BSCH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 270 nH | ±5% | 150 mA | - | Unshielded | 2.2Ohm Max | 8 @ 50MHz | 470MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

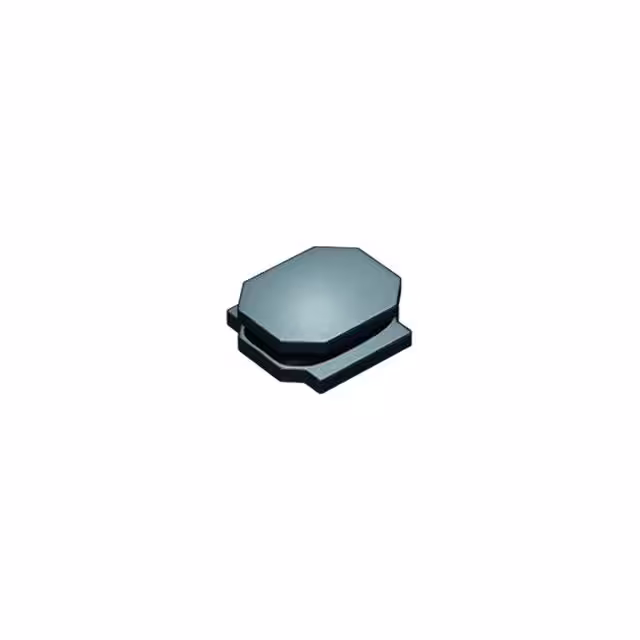

LSXNE2424MKT1R0NNGFIXED IND 1UH 1.3A 92.4 MOHM SMD |
4,986 |
|
Datasheet
|
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±30% | 1.3 A | 2.35A | Shielded | 92.4mOhm Max | - | 101MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.094" L x 0.094" W (2.40mm x 2.40mm) | 0.047" (1.20mm) |
|
0402HP-220EJTSFIXED IND 22NH 800MA 160MOHM SMD |
4,930 |
|
Datasheet
|
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 800 mA | - | Unshielded | 160mOhm | - | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
