Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
193MFIXED IND 10H 300MA 63 OHM CHASS Hammond Manufacturing |
1 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 300 mA | - | Unshielded | 63Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|

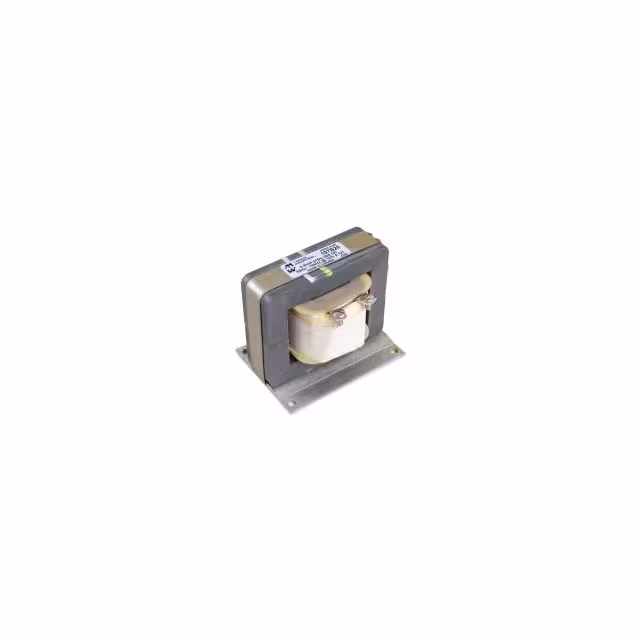

197B20FIXED IND 800UH 20A 0.023OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 800 µH | ±15% | 20 A | - | Unshielded | 23mOhm | - | 333kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|
|
193PFIXED IND 5H 500MA 26 OHM CHASS Hammond Manufacturing |
0 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 500 mA | - | Unshielded | 26Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|
197E15FIXED IND 3.5MH 15A 0.08OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 3.5 mH | ±15% | 15 A | - | Unshielded | 80mOhm | - | 152.9kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
197D20FIXED IND 2MH 20A 0.049OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 2 mH | ±15% | 20 A | - | Unshielded | 49mOhm | - | 218kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|

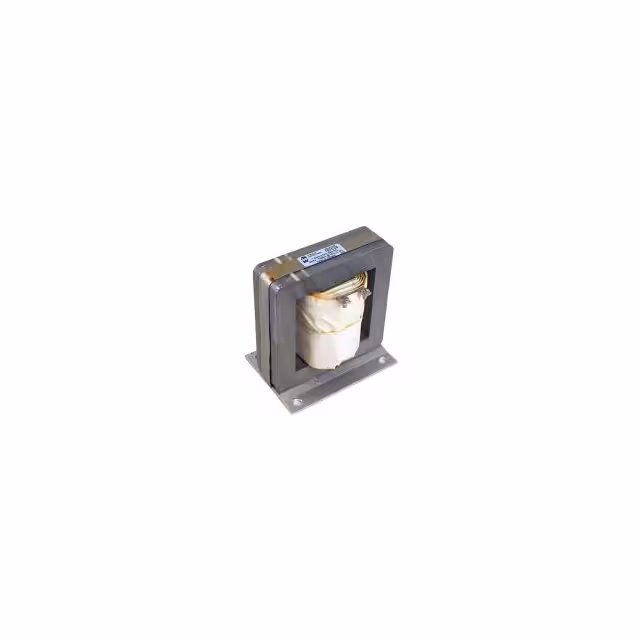

197C25FIXED IND 1.4MH 25A 0.03OHM SMD Hammond Manufacturing |
0 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.4 mH | ±15% | 25 A | - | Unshielded | 30mOhm | - | 272.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|

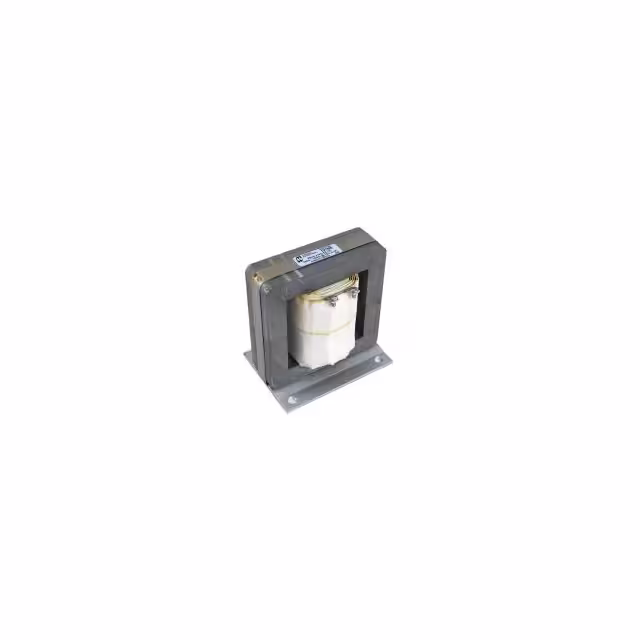

197M5FIXED IND 25MH 5A 0.403OHM SMD Hammond Manufacturing |
0 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 25 mH | ±15% | 5 A | - | Unshielded | 403mOhm | - | 72.4kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
|
193LPFIXED IND 5H 300MA 55 OHM CHASS Hammond Manufacturing |
1 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 5 H | ±15% | 300 mA | - | Unshielded | 55Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
|
193MPFIXED IND 10H 300MA 63 OHM CHASS Hammond Manufacturing |
1 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 10 H | ±15% | 300 mA | - | Unshielded | 63Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
195D50FIXED IND 1.4MH 50A 5 MOHM CHASS Hammond Manufacturing |
1 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 1.4 mH | ±15% | 50 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.380" L x 5.500" W (162.05mm x 139.70mm) | 5.380" (136.65mm) |
