Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

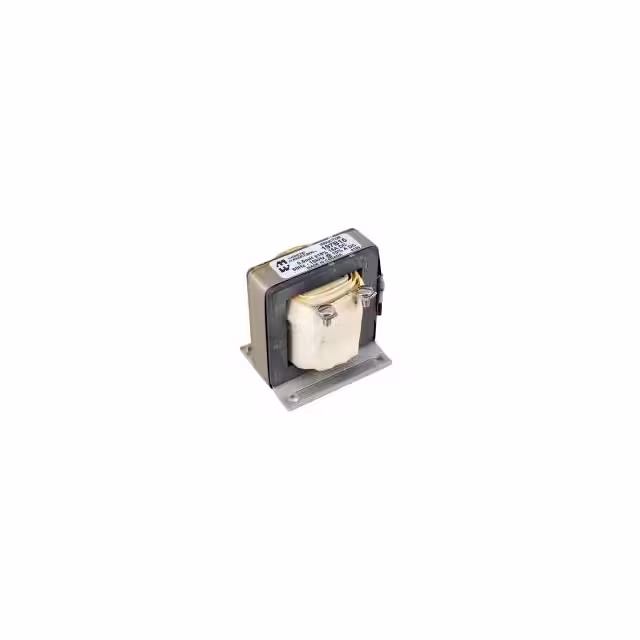

197B15FIXED IND 500UH 15A 0.039OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 500 µH | ±15% | 15 A | - | Unshielded | 39mOhm | - | 812.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|

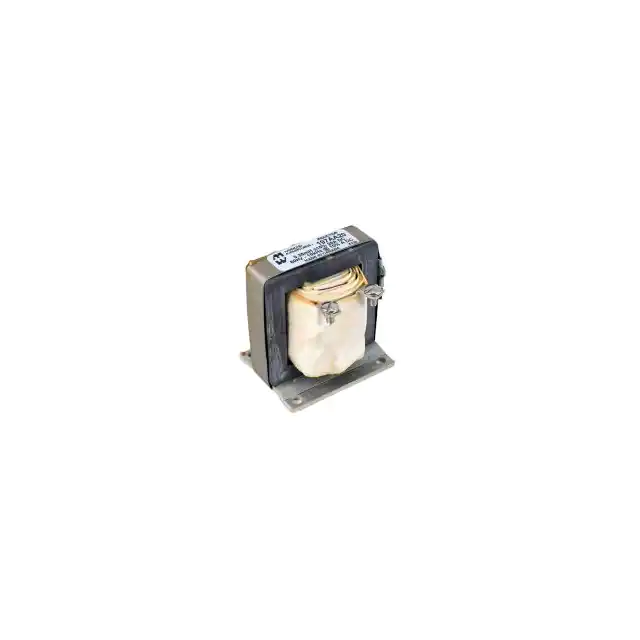

197AA20FIXED IND 250UH 20A 0.014OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 250 µH | ±15% | 20 A | - | Unshielded | 14mOhm | - | 1.19MHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.050" L x 2.500" W (77.47mm x 63.50mm) | 3.376" (85.75mm) |
|
197E5FIXED IND 4MH 5A 0.232OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 4 mH | ±15% | 5 A | - | Unshielded | 232mOhm | - | 250.5kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 3.400" L x 2.500" W (86.36mm x 63.50mm) | 3.376" (85.75mm) |
|
193KFIXED IND 2.6H 300MA 21 OHM CHAS Hammond Manufacturing |
1 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 2.6 H | ±15% | 300 mA | - | Unshielded | 21Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 2.500" W (82.55mm x 63.50mm) | 3.125" (79.38mm) |
|
|
193GFIXED IND 10H 150MA 102 OHM CHAS Hammond Manufacturing |
0 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 150 mA | - | Unshielded | 102Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.250" L x 3.130" W (82.55mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193NFIXED IND 3H 500MA 35 OHM CHASS Hammond Manufacturing |
1 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 3 H | ±15% | 500 mA | - | Unshielded | 35Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
|
193LFIXED IND 5H 300MA 57 OHM CHASS Hammond Manufacturing |
1 |
|
Datasheet
|
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 300 mA | - | Unshielded | 57Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.750" L x 3.130" W (95.25mm x 79.50mm) | 3.810" (96.77mm) |
|
197E10FIXED IND 3.5MH 10A 0.096OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 3.5 mH | ±15% | 10 A | - | Unshielded | 96mOhm | - | 129.55kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|

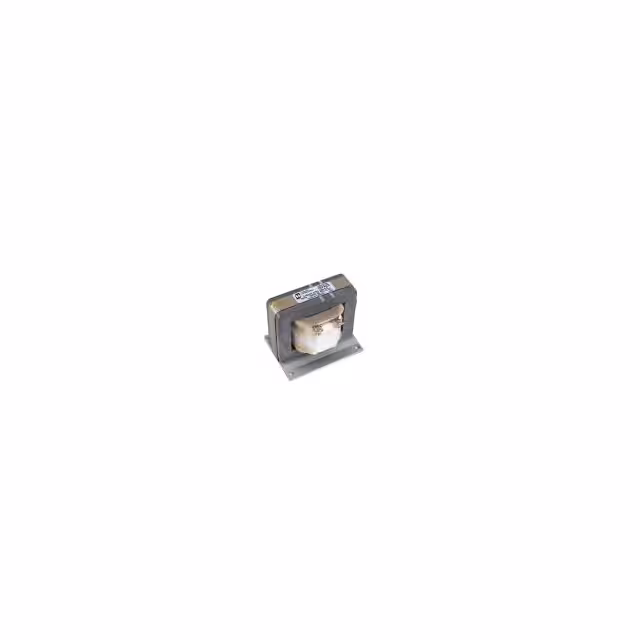

197A25FIXED IND 480UH 25A 0.011OHM SMD Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 480 µH | ±15% | 25 A | - | Unshielded | 11mOhm | - | 504kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.950" (100.33mm) |
|
197C15FIXED IND 1.35MH 15A 0.029OHM SM Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.35 mH | ±15% | 15 A | - | Unshielded | 29mOhm | - | 289.05kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
