Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

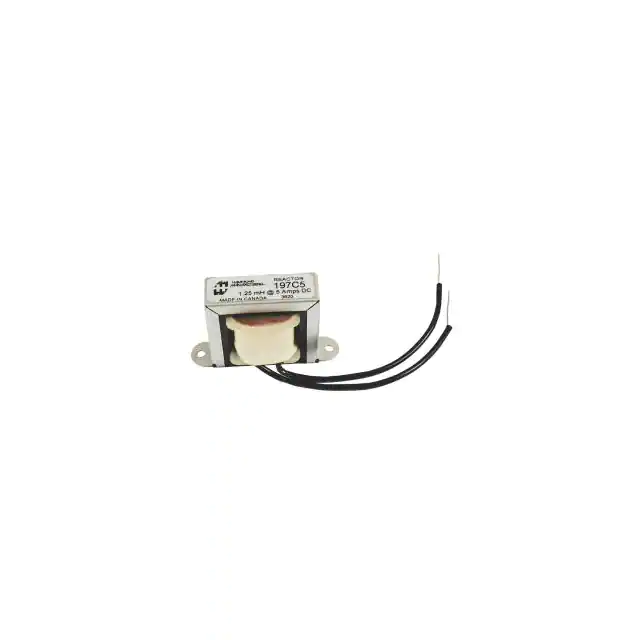

197C5FIXED IND 1.25MH 5A 0.126OHM TH Hammond Manufacturing |
0 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.25 mH | ±15% | 5 A | - | Unshielded | 126mOhm | - | 314.9kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|
158SFIXED IND 1.5H 250MA 60 OHM CHAS Hammond Manufacturing |
1 |
|
Datasheet
|
158 | Nonstandard | Bulk | Active | - | - | 1.5 H | ±15% | 250 mA | - | Unshielded | 60Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|

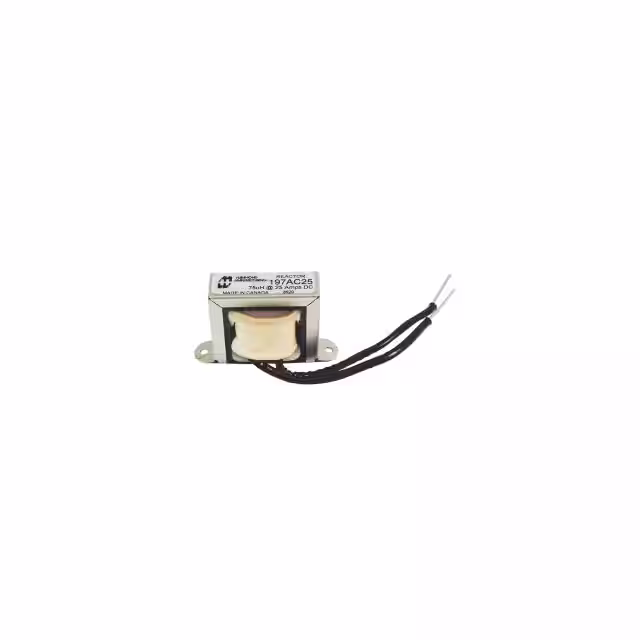

197AC25FIXED IND 75UH 25A 0.018OHM TH Hammond Manufacturing |
0 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 75 µH | ±15% | 25 A | - | Unshielded | 18mOhm | - | 272.3kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|
|
158LFIXED IND 15H 75MA 411 OHM CHASS Hammond Manufacturing |
1 |
|
Datasheet
|
158 | Nonstandard | Bulk | Active | - | - | 15 H | ±15% | 75 mA | - | Unshielded | 411Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 2.000" W (82.55mm x 50.80mm) | 2.000" (50.80mm) |
|

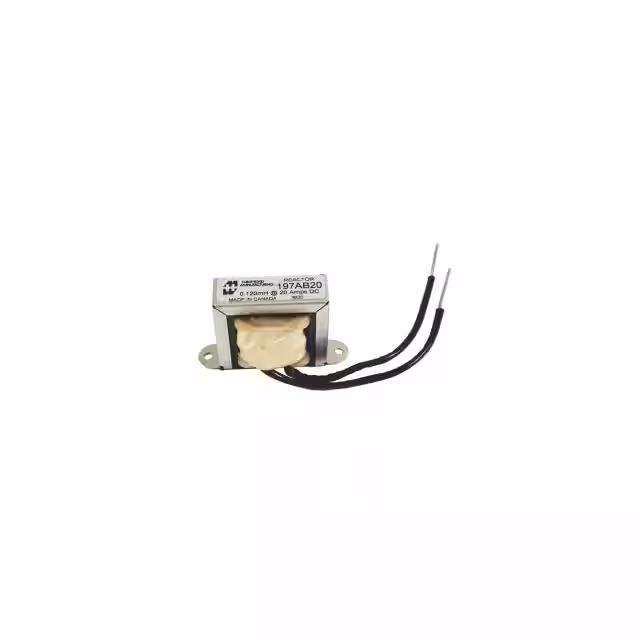

197AB20FIXED IND 120UH 20A 0.025OHM TH Hammond Manufacturing |
0 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 120 µH | ±15% | 20 A | - | Unshielded | 25mOhm | - | 1.25MHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.650" W (82.55mm x 41.91mm) | 2.058" (52.27mm) |
|

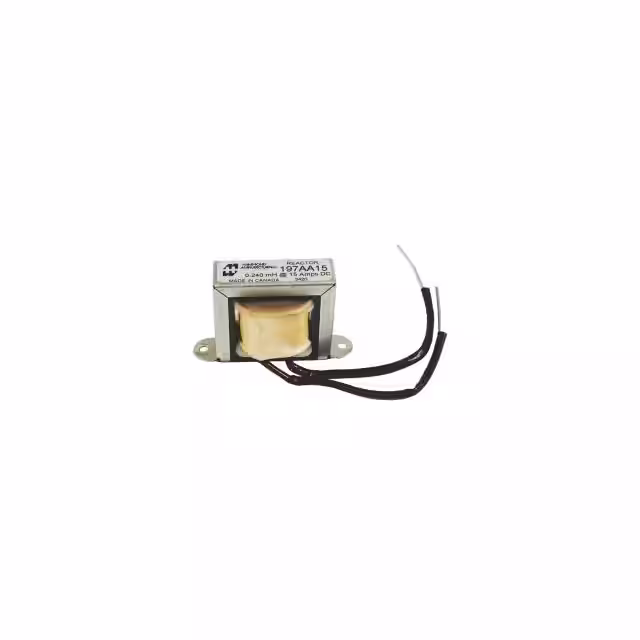

197AA15FIXED IND 240UH 15A 0.038OHM TH Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 240 µH | ±15% | 15 A | - | Unshielded | 38mOhm | - | 739.5kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|

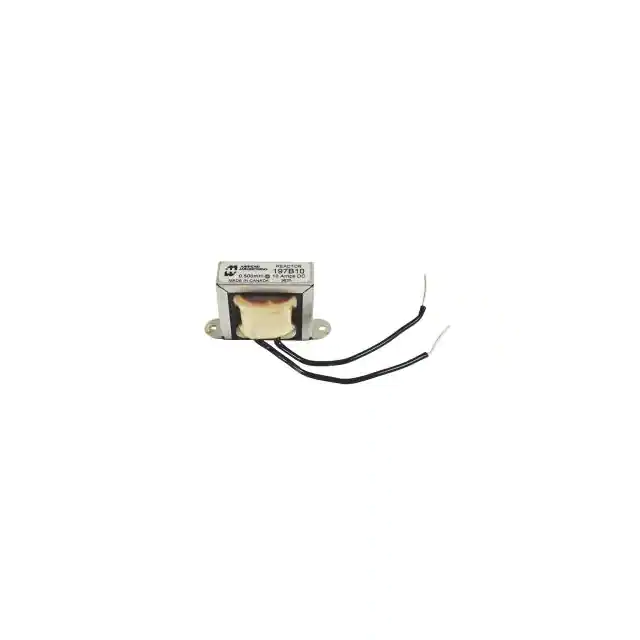

197B10FIXED IND 500UH 10A 0.067OHM TH Hammond Manufacturing |
1 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 500 µH | ±15% | 10 A | - | Unshielded | 67mOhm | - | 471.6kHz | - | -40°C ~ 105°C | - | - | Through Hole | - | 3.250" L x 1.600" W (82.55mm x 40.64mm) | 2.058" (52.27mm) |
|
153MFIXED IND 600MH 100MA 86 OHM Hammond Manufacturing |
3 |
|
Datasheet
|
153 | Nonstandard | Bulk | Active | - | - | 600 mH | ±15% | 100 mA | - | Unshielded | 86Ohm | - | - | - | - | - | - | Chassis Mount | - | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) |
|
|
153LFIXED IND 900MH 75MA 125 OHM Hammond Manufacturing |
1 |
|
Datasheet
|
153 | Nonstandard | Bulk | Active | - | - | 900 mH | ±15% | 75 mA | - | Unshielded | 125Ohm | - | - | - | - | - | - | Chassis Mount | - | 1.630" L x 0.880" W (41.40mm x 22.35mm) | 0.810" (20.57mm) |
|
157RFIXED IND 2H 200MA 57 OHM CHASS Hammond Manufacturing |
0 |
|
Datasheet
|
157 | Nonstandard | Bulk | Active | - | - | 2 H | ±15% | 200 mA | - | Unshielded | 57Ohm | - | - | - | - | - | - | Chassis Mount | - | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) |
