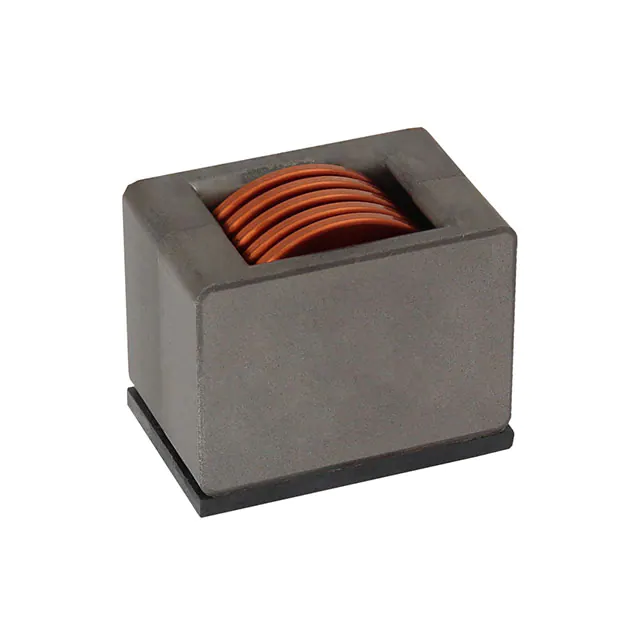

Vishay Dale IHDM1107BBEV120M30
- Part No.:
- IHDM1107BBEV120M30
- Manufacturer:
- Vishay Dale
- Category:
- Fixed Inductors
- Package:
- Nonstandard
- Datasheet:
-
IHDM1107BBEV120M30.pdf
- Description:
- FG, IHDM-1107BB-30 12 20%
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
IHDM1107BBEV120M30 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Dale
- Series:
- IHDM-1107BB-30
- Package/Case:
- Nonstandard
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Drum Core, Wirewound
- Material - Core:
- Iron Powder
- Inductance:
- 12 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 35 A
- Current - Saturation (Isat):
- 61A
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 2.6mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- 21MHz
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 180°C
- Inductance Frequency - Test:
- 100 kHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 1.055" L x 0.705" W (26.80mm x 17.90mm)
- Height - Seated (Max):
- 0.882" (22.40mm)
- Datasheet:
-
IHDM1107BBEV120M30.pdf
| Image |  |
| Part Number | IHDM1107BBEV120M30 |
| Manufacturer | Vishay Dale |
| Series | IHDM-1107BB-30 |
| Package/Case | Nonstandard |
| Packaging | Bulk |
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Powder |
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 35 A |
| Current - Saturation (Isat) | 61A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2.6mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 21MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 180°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Size / Dimension | 1.055" L x 0.705" W (26.80mm x 17.90mm) |
| Height - Seated (Max) | 0.882" (22.40mm) |
