Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDRH4D28NP-2R7NCFIXED IND 2.7UH 1.6A 43.3MOHM SM |
4,191 |
|
Datasheet
|
CDRH4D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±30% | 1.6 A | - | Shielded | 43.3mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.118" (3.00mm) |
|

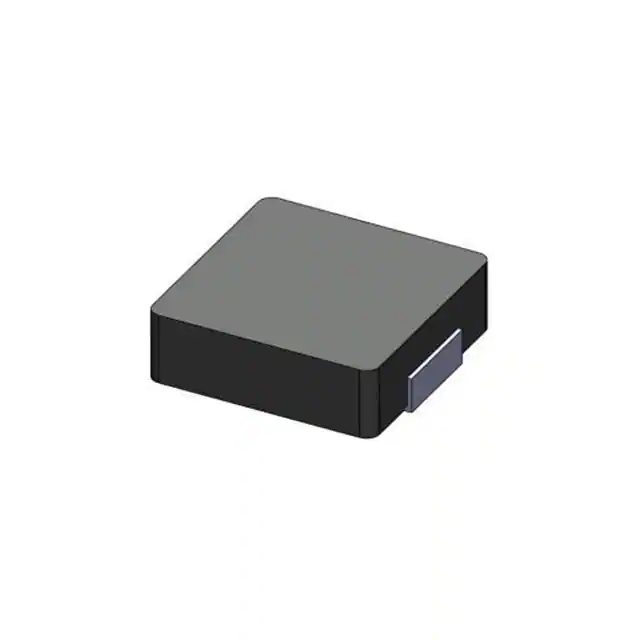

0518CDMCCDS-R10MCFIXED IND 100NH 20A 3.1MOHM SMD |
3,849 |
|
Datasheet
|
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 20 A | 25A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
0518CDMCCDS-R12MCFIXED IND 120NH 21A 2.6MOHM SMD |
1,968 |
|
Datasheet
|
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 120 nH | ±20% | 21 A | 24.5A | Shielded | 2.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
0518CDMCCDS-R22MCFIXED IND 220NH 16A 4.8MOHM SMD |
1,739 |
|
Datasheet
|
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 16 A | 17A | Shielded | 4.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
|
0518CDMCCDS-R15MCFIXED IND 150NH 19A 3.6MOHM SMD |
1,272 |
|
Datasheet
|
0518CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 19 A | 24A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.071" (1.80mm) |
|
SRR0805-680KFIXED IND 68UH 600MA 440MOHM SMD |
1,028 |
|
Datasheet
|
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 600 mA | 900mA | Shielded | 440mOhm Max | 28 @ 2.52MHz | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
PA5447.821NLTFIXED IND 820NH 8.5A 14MOHM SMD |
4,000 |
|
Datasheet
|
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 820 nH | ±20% | 8.5 A | 15.5A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
PA5403.103NLTFIXED IND 10UH 1.5A 385MOHM SMD |
3,987 |
|
Datasheet
|
PA5403 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 1.5 A | 1.8A | Shielded | 385mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
|
PA5447.331NLTFIXED IND 330NH 14A 5.8MOHM SMD |
3,970 |
|
Datasheet
|
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 14 A | 22A | Shielded | 5.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
|
PA5403.102NLTFIXED IND 1UH 5A 30 MOHM SMD |
3,825 |
|
Datasheet
|
PA5403 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 5 A | 6A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
ASPI-2512-2R2M-T2FIXED IND 2.2UH 1.3A 129MOHM SMD |
3,600 |
|
Datasheet
|
ASPI-2512 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.3 A | 1.55A | Shielded | 129mOhm | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
PA5447.103NLTFIXED IND 10UH 2.3A 160MOHM SMD |
2,955 |
|
Datasheet
|
PA5447.xxxNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 2.3 A | 3.5A | Shielded | 160mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.260" W (7.30mm x 6.60mm) | 0.197" (5.00mm) |
|
IHLE2020CDERR47M5AIHLE-2020CD-5A .47 20% ER E3 |
2,098 |
|
Datasheet
|
IHLE-2020CD-5A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 470 nH | ±20% | 14.6 A | 9.4A | Shielded | 6.44mOhm Max | - | 88MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.232" L x 0.216" W (5.89mm x 5.49mm) | 0.135" (3.43mm) |
|
|
SRR0805-5R6MFIXED IND 5.6UH 1.95A 65MOHM SMD |
1,428 |
|
Datasheet
|
SRR0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 1.95 A | 3.2A | Shielded | 65mOhm Max | 20 @ 7.96MHz | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.185" (4.70mm) |
|
|
PA5403.332NLTFIXED IND 3.3UH 3A 86 MOHM SMD |
1,004 |
|
Datasheet
|
PA5403 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 3.3 µH | ±20% | 3 A | 3.8A | Shielded | 86mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
B82432C1473J000FIXED IND 47UH 210MA 2.3 OHM SMD |
10,271 |
|
Datasheet
|
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 210 mA | - | Unshielded | 2.3Ohm Max | 30 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

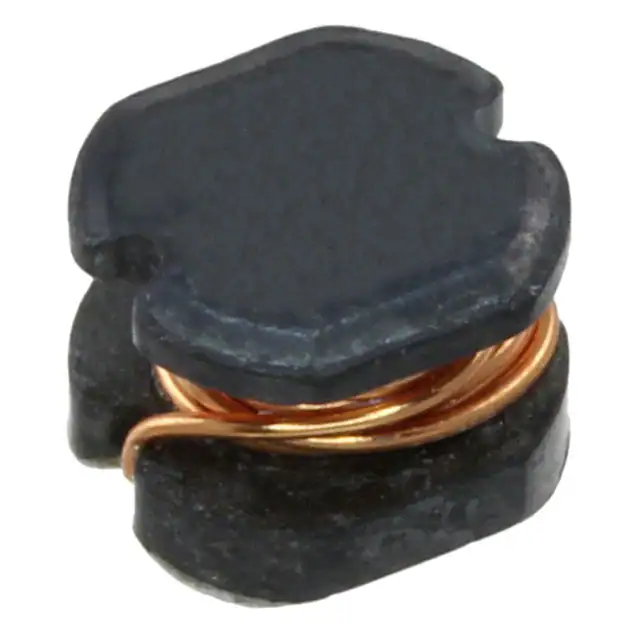

PF0580.123NLTFIXED IND 12UH 1A 160 MOHM SMD |
7,774 |
|
Datasheet
|
PF0580NL | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 12 µH | ±15% | 1 A | 1A | Unshielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.185" L x 0.165" W (4.70mm x 4.20mm) | 0.137" (3.48mm) |
|
|
ASPI-2510-2R2M-T2FIXED IND 2.2UH 1.2A 158MOHM SMD |
1,980 |
|
Datasheet
|
ASPI-2510 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.2A | Shielded | 158mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
CDRH4D22HPNP-560MCFIXED IND 56UH 480MA 810MOHM SMD |
1,975 |
|
Datasheet
|
CDRH4D22/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 480 mA | 650mA | Shielded | 810mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.094" (2.40mm) |
|
SRU6025-470YFIXED IND 47UH 1A 250 MOHM SMD |
1,798 |
|
Datasheet
|
SRU6025 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 1 A | 480mA | Shielded | 250mOhm Max | 12 @ 2.52MHz | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.110" (2.80mm) |
