Toko America Inc. 300LS-1R5K=P2
- Part No.:
- 300LS-1R5K=P2
- Manufacturer:
- Toko America Inc.
- Category:
- Fixed Inductors
- Package:
- 1812 (4532 Metric)
- Datasheet:
-
300LS-1R5K=P2.pdf
- Description:
- FIXED IND 1.5UH 230MA 490 MOHM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
300LS-1R5K=P2 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Toko America Inc.
- Series:
- 43FS
- Package/Case:
- 1812 (4532 Metric)
- Packaging:
- Cut Tape (CT)
- Product Status:
- Obsolete
- Type:
- Wirewound
- Material - Core:
- Ferrite
- Inductance:
- 1.5 µH
- Tolerance:
- ±10%
- Current Rating (Amps):
- 230 mA
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 490mOhm Max
- Q @ Freq:
- 50 @ 7.96MHz
- Frequency - Self Resonant:
- 105MHz
- Ratings:
- -
- Operating Temperature:
- -10°C ~ 60°C
- Inductance Frequency - Test:
- 7.96 MHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 1812
- Size / Dimension:
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
- Height - Seated (Max):
- 0.126" (3.20mm)
- Datasheet:
-
300LS-1R5K=P2.pdf

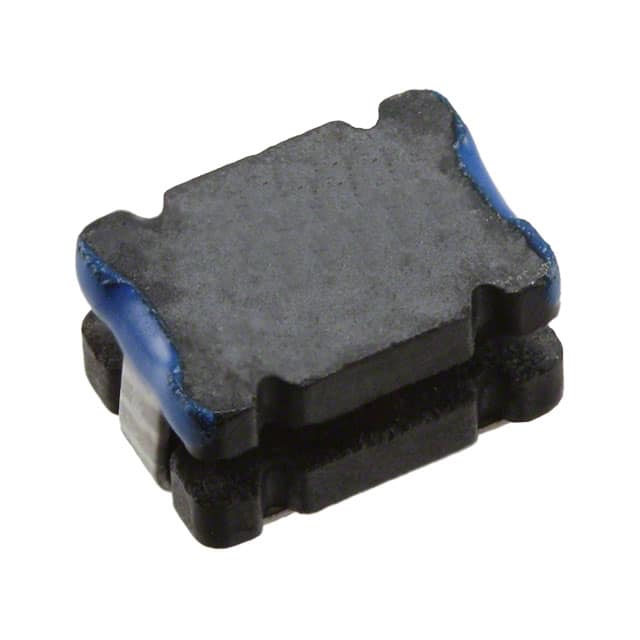

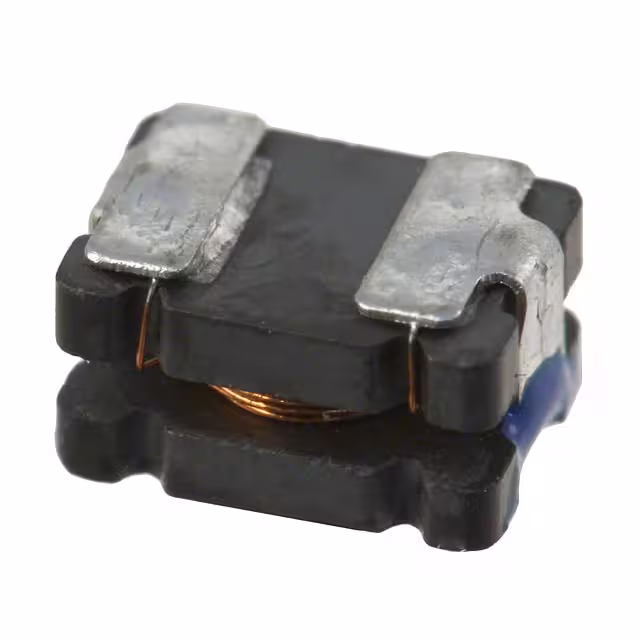

| Image |  |
 |
 |
| Part Number | 300LS-820K=P2 | 300LS-180K=P2 | 300LS-1R5K=P2 |
| Manufacturer | Toko America Inc. | Toko America Inc. | Toko America Inc. |
| Series | 43FS | 43FS | 43FS |
| Package/Case | 1812 (4532 Metric) | 1812 (4532 Metric) | 1812 (4532 Metric) |
| Packaging | Tape & Reel (TR) | Cut Tape (CT) | Cut Tape (CT) |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Wirewound | Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite |
| Inductance | 82 µH | 18 µH | 1.5 µH |
| Tolerance | ±10% | ±10% | ±10% |
| Current Rating (Amps) | 75 mA | 125 mA | 230 mA |
| Current - Saturation (Isat) | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 4.42Ohm Max | 1.77Ohm Max | 490mOhm Max |
| Q @ Freq | 50 @ 25.2MHz | 50 @ 25.2MHz | 50 @ 7.96MHz |
| Frequency - Self Resonant | 7.7MHz | 16MHz | 105MHz |
| Ratings | - | - | - |
| Operating Temperature | -10°C ~ 60°C | -10°C ~ 60°C | -10°C ~ 60°C |
| Inductance Frequency - Test | 25.2 MHz | 25.2 MHz | 7.96 MHz |
| Features | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 1812 | 1812 | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) |
