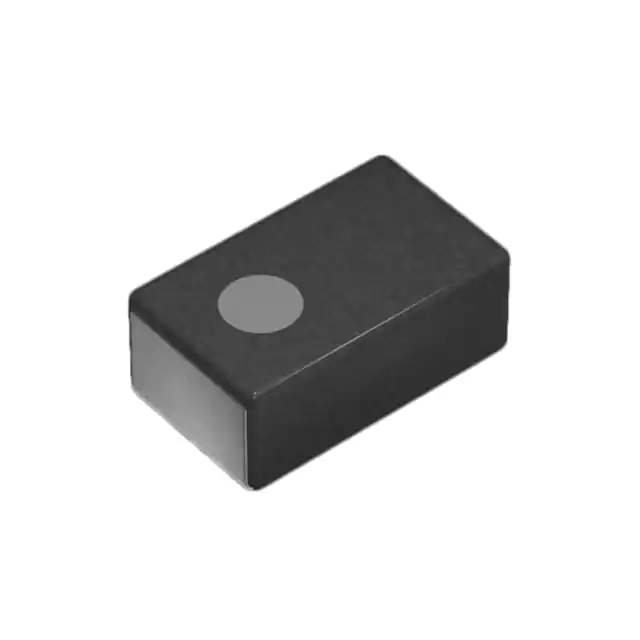

TDK Corporation TFM201208BLE-1R0MTCF
- Part No.:
- TFM201208BLE-1R0MTCF
- Manufacturer:
- TDK Corporation
- Category:
- Fixed Inductors
- Package:
- 0805 (2012 Metric)
- Datasheet:
-
TFM201208BLE-1R0MTCF.pdf
- Description:
- FIXED IND 1UH 3.7A 60 MOHM SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TFM201208BLE-1R0MTCF Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- TFM-BLE
- Package/Case:
- 0805 (2012 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Thin Film
- Material - Core:
- Metal
- Inductance:
- 1 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 2.7 A
- Current - Saturation (Isat):
- 3.4A
- Shielding:
- Shielded
- DC Resistance (DCR):
- 60mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- 1 MHz
- Features:
- Soft Termination
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 0805
- Size / Dimension:
- 0.079" L x 0.047" W (2.00mm x 1.20mm)
- Height - Seated (Max):
- 0.031" (0.80mm)
- Datasheet:
-
TFM201208BLE-1R0MTCF.pdf
| Image |  |
 |
|
|
| Part Number | TFM201208BLE-1R0MTCF | TFM201208BLE-R24MTCF | TFM201208BLE-R33MTCF | TFM201208BLE-R47MTCF |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Series | TFM-BLE | TFM-BLE | TFM-BLE | TFM-BLE |
| Package/Case | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active |
| Type | Thin Film | Thin Film | Thin Film | Thin Film |
| Material - Core | Metal | Metal | Metal | Metal |
| Inductance | 1 µH | 240 nH | 330 nH | 470 nH |
| Tolerance | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2.7 A | 5 A | 4.2 A | 4 A |
| Current - Saturation (Isat) | 3.4A | 6.5A | 5.5A | 5A |
| Shielding | Shielded | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 60mOhm Max | 20mOhm Max | 25mOhm Max | 29mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz | 1 MHz | 1 MHz |
| Features | Soft Termination | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 0805 | 0805 | 0805 | 0805 |
| Size / Dimension | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.079" L x 0.047" W (2.00mm x 1.20mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) | 0.031" (0.80mm) |
