TDK Corporation TFM201208BLD-R11MTCA
- Part No.:
- TFM201208BLD-R11MTCA
- Manufacturer:
- TDK Corporation
- Category:
- Fixed Inductors
- Package:
- 0805 (2012 Metric)
- Datasheet:
-
TFM201208BLD-R11MTCA.pdf
- Description:
- IND 110NH 8.8A 13MOHM -40~125
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
TFM201208BLD-R11MTCA Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TDK Corporation
- Series:
- TFM-BLD
- Package/Case:
- 0805 (2012 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Thin Film
- Material - Core:
- Metal
- Inductance:
- 110 nH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 5.9 A
- Current - Saturation (Isat):
- 7.1A
- Shielding:
- Shielded
- DC Resistance (DCR):
- 13mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- 1 MHz
- Features:
- Soft Termination
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 0805
- Size / Dimension:
- 0.079" L x 0.049" W (2.00mm x 1.25mm)
- Height - Seated (Max):
- 0.031" (0.80mm)
- Datasheet:
-
TFM201208BLD-R11MTCA.pdf

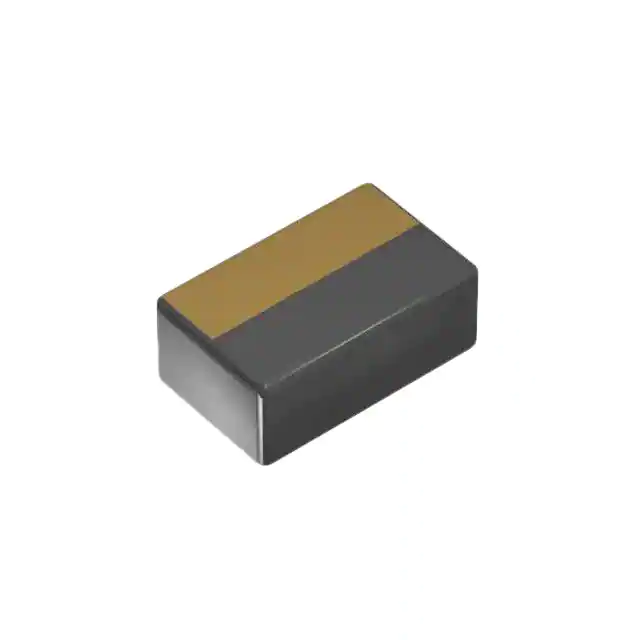

| Image |  |
 |
| Part Number | TFM201208BLD-R11MTCA | TFM201208BLD-R33MTCA |
| Manufacturer | TDK Corporation | TDK Corporation |
| Series | TFM-BLD | TFM-BLD |
| Package/Case | 0805 (2012 Metric) | 0805 (2012 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active |
| Type | Thin Film | Thin Film |
| Material - Core | Metal | Metal |
| Inductance | 110 nH | 330 nH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 5.9 A | 4 A |
| Current - Saturation (Isat) | 7.1A | 5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 13mOhm Max | 32mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | 1 MHz |
| Features | Soft Termination | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 0805 | 0805 |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | 0.031" (0.80mm) | 0.031" (0.80mm) |
