Sumida America Components Inc. RCH875NP-331K
- Part No.:
- RCH875NP-331K
- Manufacturer:
- Sumida America Components Inc.
- Category:
- Fixed Inductors
- Package:
- Radial, Vertical Cylinder (Open)
- Datasheet:
-
RCH875NP-331K.pdf
- Description:
- FIXED IND 330UH 300MA 1.05OHM TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
RCH875NP-331K Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sumida America Components Inc.
- Series:
- RCH-875
- Package/Case:
- Radial, Vertical Cylinder (Open)
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Drum Core, Wirewound
- Material - Core:
- Ferrite
- Inductance:
- 330 µH
- Tolerance:
- ±10%
- Current Rating (Amps):
- 300 mA
- Current - Saturation (Isat):
- 460mA
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 1.05Ohm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 100°C
- Inductance Frequency - Test:
- 1 kHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 0.307" Dia (7.80mm)
- Height - Seated (Max):
- 0.295" (7.50mm)
- Datasheet:
-
RCH875NP-331K.pdf
| Image |  |
 |
 |
 |
 |

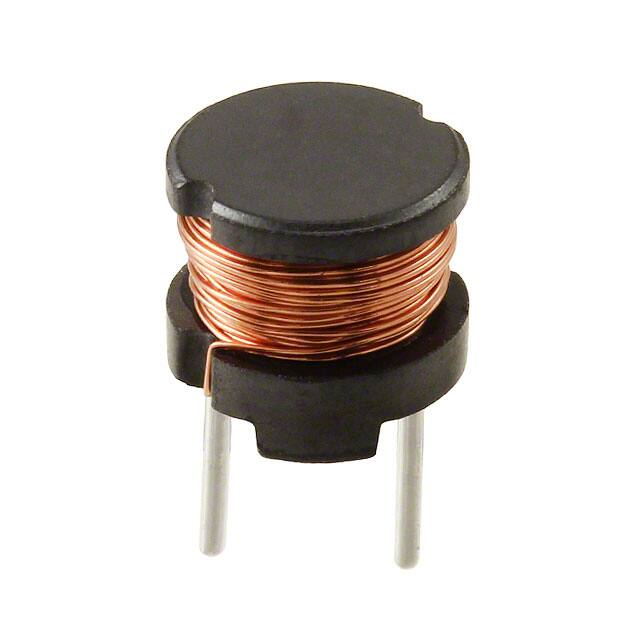

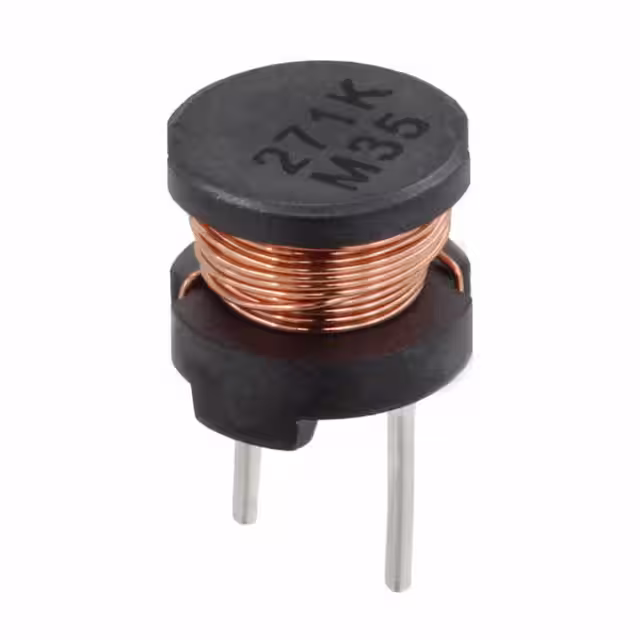

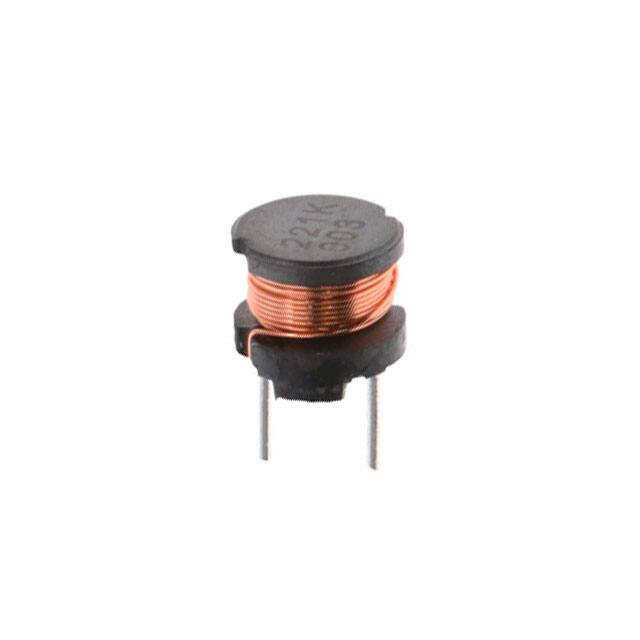

| Part Number | RCH875NP-331K | RCH875NP-102K | RCH875NP-271K | RCH875NP-221K | RCH875NP-100M |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Series | RCH-875 | RCH-875 | RCH-875 | RCH-875 | RCH-875 |
| Package/Case | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) | Radial, Vertical Cylinder (Open) |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 330 µH | 1 mH | 270 µH | 220 µH | 10 µH |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±20% |
| Current Rating (Amps) | 300 mA | 180 mA | 320 mA | 380 mA | 2.1 A |
| Current - Saturation (Isat) | 460mA | 270mA | 510mA | 570mA | 2.9A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.05Ohm Max | 2.94Ohm Max | 880mOhm Max | 630mOhm Max | 50mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 1 kHz | 1 kHz | 1 kHz | 2.52 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) | 0.295" (7.50mm) |
