Sumida America Components Inc. CDR95NP-151MC
- Part No.:
- CDR95NP-151MC
- Manufacturer:
- Sumida America Components Inc.
- Category:
- Fixed Inductors
- Package:
- Nonstandard
- Datasheet:
-
CDR95NP-151MC.pdf
- Description:
- FIXED IND 150UH 900MA 454MOHM SM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CDR95NP-151MC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sumida America Components Inc.
- Series:
- CDR95
- Package/Case:
- Nonstandard
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Obsolete
- Type:
- Drum Core, Wirewound
- Material - Core:
- Ferrite
- Inductance:
- 150 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 900 mA
- Current - Saturation (Isat):
- 1.1A
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 454mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 100°C
- Inductance Frequency - Test:
- 100 kHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.508" L x 0.370" W (12.90mm x 9.40mm)
- Height - Seated (Max):
- 0.205" (5.20mm)
- Datasheet:
-
CDR95NP-151MC.pdf

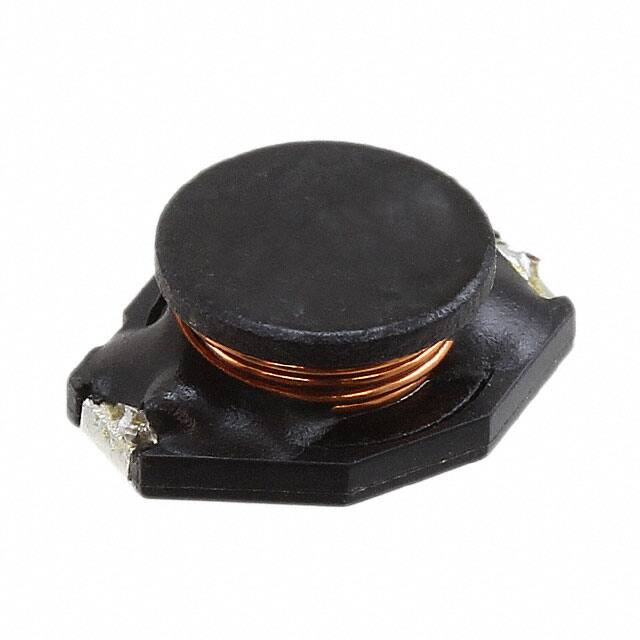

| Image |  |
 |
|
|
|
| Part Number | CDR95NP-330MC | CDR95NP-100MC | CDR95NP-101MC | CDR95NP-150MC | CDR95NP-151MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Series | CDR95 | CDR95 | CDR95 | CDR95 | CDR95 |
| Package/Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | - | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 33 µH | 10 µH | 100 µH | 15 µH | 150 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 2 A | 3.5 A | 1.1 A | 3 A | 900 mA |
| Current - Saturation (Isat) | 2.4A | 4A | 1.4A | 3.5A | 1.1A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 102mOhm Max | 35.4mOhm Max | 288mOhm Max | 46.8mOhm Max | 454mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.508" L x 0.370" W (12.90mm x 9.40mm) |
| Height - Seated (Max) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) | 0.205" (5.20mm) |
