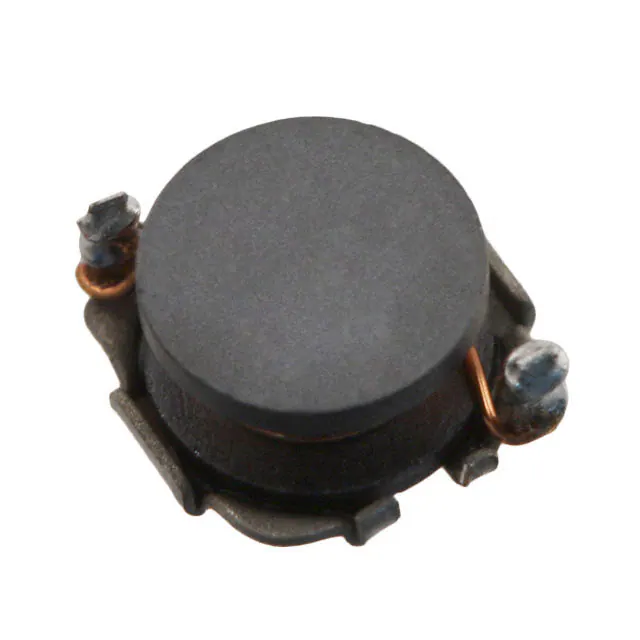

Sumida America Components Inc. CDH53NP-101JC
- Part No.:
- CDH53NP-101JC
- Manufacturer:
- Sumida America Components Inc.
- Category:
- Fixed Inductors
- Package:
- Nonstandard
- Datasheet:
-
CDH53NP-101JC.pdf
- Description:
- FIXED IND 100UH 370MA 1.57OHM SM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CDH53NP-101JC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sumida America Components Inc.
- Series:
- CDH53
- Package/Case:
- Nonstandard
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Drum Core, Wirewound
- Material - Core:
- Ferrite
- Inductance:
- 100 µH
- Tolerance:
- ±5%
- Current Rating (Amps):
- 370 mA
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 1.57Ohm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 100°C
- Inductance Frequency - Test:
- 1 kHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.236" L x 0.205" W (6.00mm x 5.20mm)
- Height - Seated (Max):
- 0.126" (3.20mm)
- Datasheet:
-
CDH53NP-101JC.pdf
| Image |  |
 |
|
|
|
| Part Number | CDH53NP-101JC | CDH53NP-2R2MC | CDH53NP-120LC | CDH53NP-121JC | CDH53NP-150KC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Series | CDH53 | CDH53 | CDH53 | CDH53 | CDH53 |
| Package/Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 100 µH | 2.2 µH | 12 µH | 120 µH | 15 µH |
| Tolerance | ±5% | ±20% | ±15% | ±5% | ±10% |
| Current Rating (Amps) | 370 mA | 2.03 A | 1.12 A | 340 mA | 1 A |
| Current - Saturation (Isat) | - | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 1.57Ohm Max | 66mOhm Max | 180mOhm Max | 1.8Ohm Max | 250mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz | 7.96 MHz | 1 kHz | 1 kHz | 1 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.236" L x 0.205" W (6.00mm x 5.20mm) | 0.236" L x 0.205" W (6.00mm x 5.20mm) |
| Height - Seated (Max) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) | 0.126" (3.20mm) |
