Sumida America Components Inc. 252012CDMCCDS-4R7MC
- Part No.:
- 252012CDMCCDS-4R7MC
- Manufacturer:
- Sumida America Components Inc.
- Category:
- Fixed Inductors
- Package:
- 1008 (2520 Metric)
- Datasheet:
-
252012CDMCCDS-4R7MC.pdf
- Description:
- FIXED IND 4.7UH 1.4A 264MOHM SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
252012CDMCCDS-4R7MC Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Sumida America Components Inc.
- Series:
- 252012CDMCC/DS
- Package/Case:
- 1008 (2520 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Discontinued at Digi-Key
- Type:
- Molded
- Material - Core:
- Metal
- Inductance:
- 4.7 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 1.4 A
- Current - Saturation (Isat):
- 1.7A
- Shielding:
- Shielded
- DC Resistance (DCR):
- 264mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 125°C
- Inductance Frequency - Test:
- 1 MHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 1008
- Size / Dimension:
- 0.098" L x 0.079" W (2.50mm x 2.00mm)
- Height - Seated (Max):
- 0.047" (1.20mm)
- Datasheet:
-
252012CDMCCDS-4R7MC.pdf

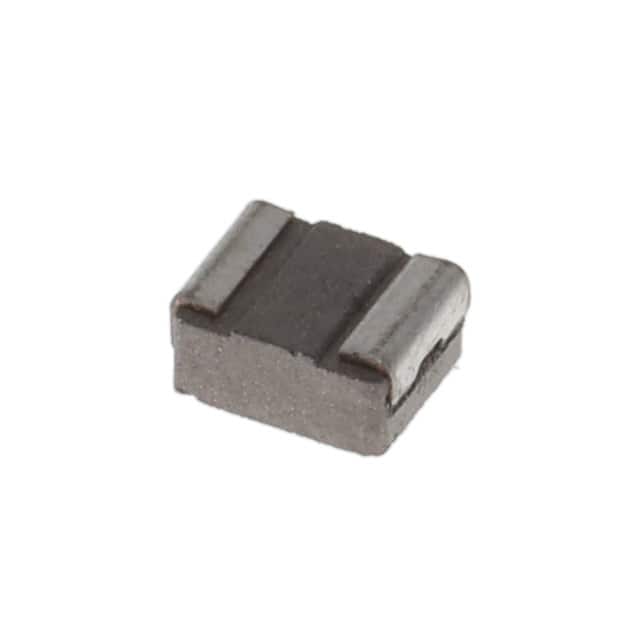

| Image |  |
 |
|
|
|
| Part Number | 252012CDMCCDS-3R3MC | 252012CDMCCDS-1R5MC | 252012CDMCCDS-2R2MC | 252012CDMCCDS-4R7MC | 252012CDMCCDS-R47MC |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Series | 252012CDMCC/DS | * | 252012CDMCC/DS | 252012CDMCC/DS | 252012CDMCC/DS |
| Package/Case | 1008 (2520 Metric) | - | 1008 (2520 Metric) | 1008 (2520 Metric) | 1008 (2520 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Discontinued at Digi-Key | Discontinued at Digi-Key |
| Type | Molded | - | Molded | Molded | Molded |
| Material - Core | Metal | - | Metal | Metal | Metal |
| Inductance | 3.3 µH | - | 2.2 µH | 4.7 µH | 470 nH |
| Tolerance | ±20% | - | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 1.5 A | - | 2 A | 1.4 A | 4.8 A |
| Current - Saturation (Isat) | 1.9A | - | 2.8A | 1.7A | 6.1A |
| Shielding | Shielded | - | Shielded | Shielded | Shielded |
| DC Resistance (DCR) | 222mOhm Max | - | 113mOhm Max | 264mOhm Max | 25mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C | - | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Inductance Frequency - Test | 1 MHz | - | 1 MHz | 1 MHz | 1 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 1008 | - | 1008 | 1008 | 1008 |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.047" (1.20mm) | - | 0.047" (1.20mm) | 0.047" (1.20mm) | 0.047" (1.20mm) |
