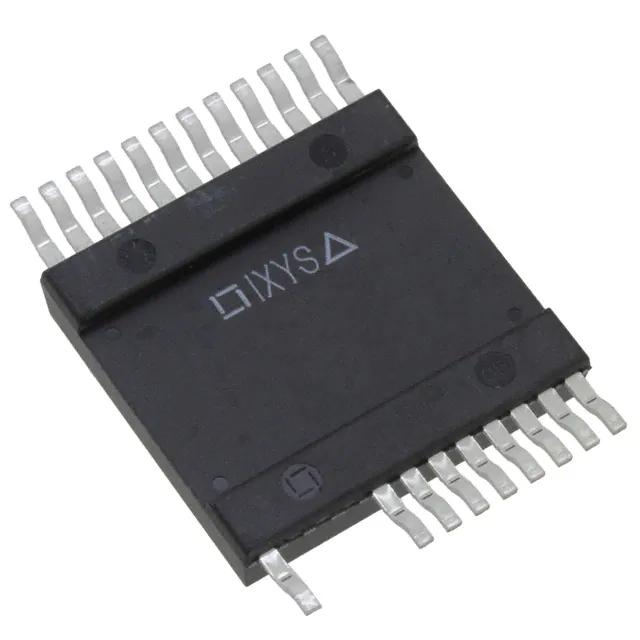

IXYS MMIX1X200N60B3
- Part No.:
- MMIX1X200N60B3
- Manufacturer:
- IXYS
- Category:
- Single IGBTs
- Package:
- 24-PowerSMD, 21 Leads
- Datasheet:
-
MMIX1X200N60B3.pdf
- Description:
- IGBT 600V 223A 625W SMPD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MMIX1X200N60B3 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- IXYS
- Series:
- GenX3™, XPT™
- Package/Case:
- 24-PowerSMD, 21 Leads
- Packaging:
- Tube
- Product Status:
- Active
- IGBT Type:
- PT
- Voltage - Collector Emitter Breakdown (Max):
- 600 V
- Current - Collector (Ic) (Max):
- 223 A
- Current - Collector Pulsed (Icm):
- 1000 A
- Vce(on) (Max) @ Vge, Ic:
- 1.7V @ 15V, 100A
- Power - Max:
- 625 W
- Switching Energy:
- 2.85mJ (on), 2.9mJ (off)
- Input Type:
- Standard
- Gate Charge:
- 315 nC
- Td (on/off) @ 25°C:
- 48ns/160ns
- Test Condition:
- 360V, 100A, 1Ohm, 15V
- Reverse Recovery Time (trr):
- -
- Operating Temperature:
- -55°C ~ 175°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 24-SMPD
- Datasheet:
-
MMIX1X200N60B3.pdf
| Image |  |
 |
| Part Number | MMIX1X200N60B3H1 | MMIX1X200N60B3 |
| Manufacturer | IXYS | IXYS |
| Series | GenX3™, XPT™ | GenX3™, XPT™ |
| Package/Case | 24-PowerSMD, 21 Leads | 24-PowerSMD, 21 Leads |
| Packaging | Tube | Tube |
| Product Status | Active | Active |
| IGBT Type | - | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 175 A | 223 A |
| Current - Collector Pulsed (Icm) | 1000 A | 1000 A |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 100A | 1.7V @ 15V, 100A |
| Power - Max | 520 W | 625 W |
| Switching Energy | 2.85mJ (on), 2.9mJ (off) | 2.85mJ (on), 2.9mJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 315 nC | 315 nC |
| Td (on/off) @ 25°C | 48ns/160ns | 48ns/160ns |
| Test Condition | 360V, 100A, 1Ohm, 15V | 360V, 100A, 1Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns | - |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 175°C (TJ) |
| Grade | - | - |
| Qualification | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 24-SMPD | 24-SMPD |
