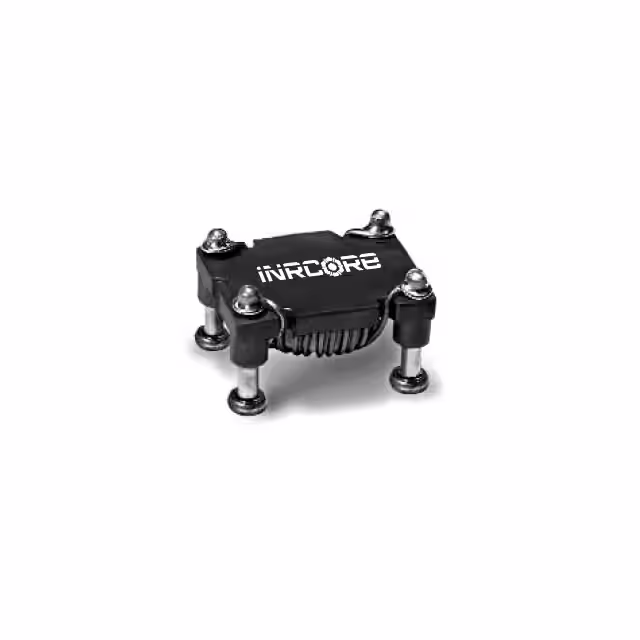

iNRCORE, LLC PL8403
- Part No.:
- PL8403
- Manufacturer:
- iNRCORE, LLC
- Category:
- Fixed Inductors
- Package:
- Nonstandard
- Datasheet:
-
PL8403.pdf
- Description:
- FIXED IND 880NH 23.8A 3 MOHM SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PL8403 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- iNRCORE, LLC
- Series:
- -
- Package/Case:
- Nonstandard
- Packaging:
- Tube
- Product Status:
- Active
- Type:
- Toroidal
- Material - Core:
- -
- Inductance:
- 880 nH
- Tolerance:
- -
- Current Rating (Amps):
- 23.8 A
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 3mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 130°C
- Inductance Frequency - Test:
- -
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.910" L x 0.700" W (23.11mm x 17.78mm)
- Height - Seated (Max):
- 0.510" (12.95mm)
- Datasheet:
-
PL8403.pdf
| Image |  |
 |
 |
|
| Part Number | PL8403NLT | PL8403T | PL8403 | PL8403NL |
| Manufacturer | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC |
| Series | - | - | - | - |
| Package/Case | Nonstandard | Nonstandard | Nonstandard | Nonstandard |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tube | Tube |
| Product Status | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | - | - | - | - |
| Inductance | 880 nH | 880 nH | 880 nH | 880 nH |
| Tolerance | - | - | - | - |
| Current Rating (Amps) | 23.8 A | 23.8 A | 23.8 A | 23.8 A |
| Current - Saturation (Isat) | - | - | - | - |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 3mOhm Max | 3mOhm Max | 3mOhm Max | 3mOhm Max |
| Q @ Freq | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - |
| Ratings | - | - | - | - |
| Operating Temperature | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C | -55°C ~ 130°C |
| Inductance Frequency - Test | - | - | - | - |
| Features | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | - | - | - |
| Size / Dimension | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.910" L x 0.700" W (23.11mm x 17.78mm) | 0.910" L x 0.700" W (23.11mm x 17.78mm) |
| Height - Seated (Max) | 0.510" (12.95mm) | 0.510" (12.95mm) | 0.510" (12.95mm) | 0.510" (12.95mm) |
