Eaton - Electronics Division CTX22-15557
- Part No.:
- CTX22-15557
- Manufacturer:
- Eaton - Electronics Division
- Category:
- Fixed Inductors
- Package:
- 10-SMD, Gull Wing
- Datasheet:
-
CTX22-15557.pdf
- Description:
- FIXED IND 1MH 1.3A 470 MOHM SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CTX22-15557 Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Eaton - Electronics Division
- Series:
- PFC
- Package/Case:
- 10-SMD, Gull Wing
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Toroidal
- Material - Core:
- Ferrite
- Inductance:
- 1 mH
- Tolerance:
- -
- Current Rating (Amps):
- 1.3 A
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 470mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -20°C ~ 105°C
- Inductance Frequency - Test:
- 100 kHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 10-SMT
- Size / Dimension:
- 1.252" L x 1.063" W (31.80mm x 27.00mm)
- Height - Seated (Max):
- 0.516" (13.10mm)
- Datasheet:
-
CTX22-15557.pdf
| Image |  |
 |

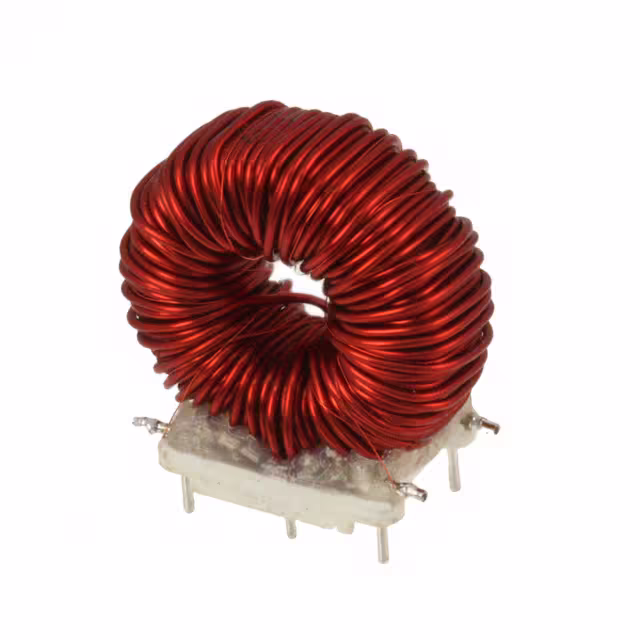

| Part Number | CTX22-16885 | CTX22-15557 |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division |
| Series | PFC | PFC |
| Package/Case | Radial, Vertical, 6 Leads (Open) | 10-SMD, Gull Wing |
| Packaging | Tape & Reel (TR) | Bulk |
| Product Status | Active | Obsolete |
| Type | Toroidal | Toroidal |
| Material - Core | Iron Powder | Ferrite |
| Inductance | 200 µH | 1 mH |
| Tolerance | - | - |
| Current Rating (Amps) | 7 A | 1.3 A |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 164mOhm Max | 470mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | - | - |
| Operating Temperature | -20°C ~ 105°C | -20°C ~ 105°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | - | - |
| Mounting Type | Through Hole | Surface Mount |
| Supplier Device Package | - | 10-SMT |
| Size / Dimension | 1.394" L x 0.866" W (35.40mm x 22.00mm) | 1.252" L x 1.063" W (31.80mm x 27.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) | 0.516" (13.10mm) |
