Eaton - Electronics Division CTX100-10-52LPR
- Part No.:
- CTX100-10-52LPR
- Manufacturer:
- Eaton - Electronics Division
- Category:
- Fixed Inductors
- Package:
- Radial, Horizontal (Open)
- Datasheet:
-
CTX100-10-52LPR.pdf
- Description:
- FIXED IND 100UH 17.6A 10.9 MOHM
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CTX100-10-52LPR Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Eaton - Electronics Division
- Series:
- CTX
- Package/Case:
- Radial, Horizontal (Open)
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Toroidal
- Material - Core:
- Iron Powder
- Inductance:
- 100 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 17.6 A
- Current - Saturation (Isat):
- 13A
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 10.9mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 75°C
- Inductance Frequency - Test:
- 100 kHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 2.244" Dia (57.00mm)
- Height - Seated (Max):
- 1.083" (27.50mm)
- Datasheet:
-
CTX100-10-52LPR.pdf
| Image |  |
 |
 |
 |
 |

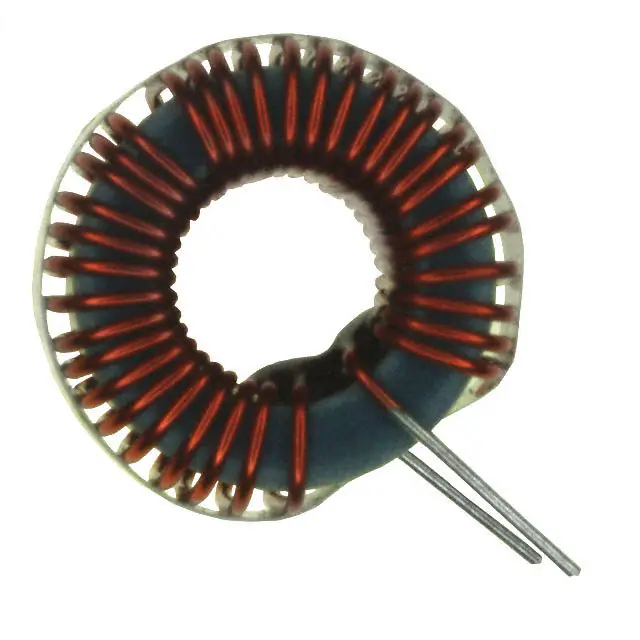

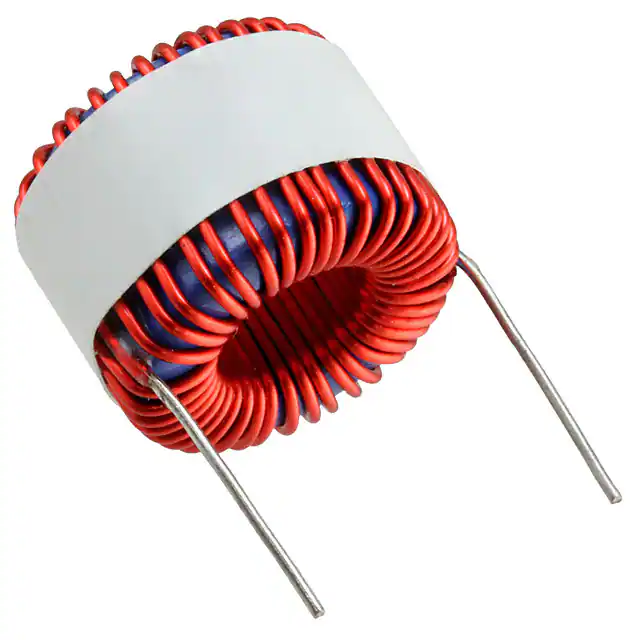

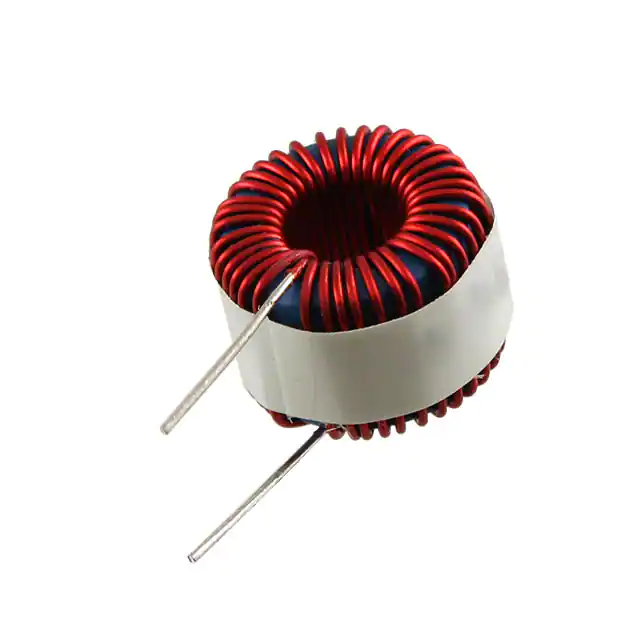

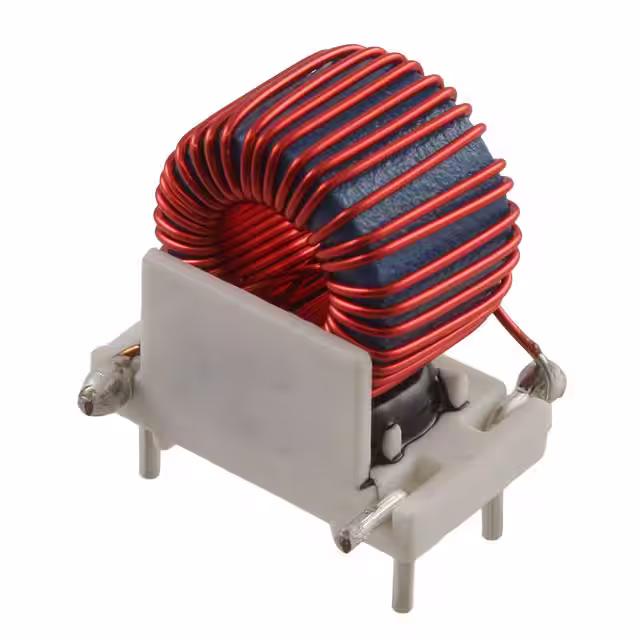

| Part Number | CTX100-10-52LPR | CTX100-1-52-R | CTX100-1-52M-R | CTX100-2-52-R | CTX100-1-52LP-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Series | CTX | CTX | CTX | CTX | CTX |
| Package/Case | Radial, Horizontal (Open) | Radial, Vertical (Open) | Radial, Vertical, 4 Leads (Open) | Radial, Vertical (Open) | Radial, Horizontal (Open) |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Type | Toroidal | Toroidal | Toroidal | Toroidal | Toroidal |
| Material - Core | Iron Powder | Iron Powder | Iron Powder | Iron Powder | Iron Powder |
| Inductance | 100 µH | 100 µH | 100 µH | 100 µH | 100 µH |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% |
| Current Rating (Amps) | 17.6 A | 2.5 A | 2.5 A | 4.4 A | 2.5 A |
| Current - Saturation (Isat) | 13A | 2.4A | 2.4A | 4.3A | 2.4A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 10.9mOhm Max | 106mOhm Max | 106mOhm Max | 53.4mOhm Max | 106mOhm Max |
| Q @ Freq | - | - | - | - | - |
| Frequency - Self Resonant | - | - | - | - | - |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 75°C | -40°C ~ 75°C | -40°C ~ 75°C | -40°C ~ 75°C | -40°C ~ 75°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz | 100 kHz | 100 kHz | 100 kHz |
| Features | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | - | - | - | - | - |
| Size / Dimension | 2.244" Dia (57.00mm) | 0.610" Dia x 0.488" W (15.50mm x 12.40mm) | 0.772" L x 0.634" W (19.60mm x 16.10mm) | 0.945" Dia x 0.654" W (24.00mm x 16.60mm) | 0.610" Dia (15.50mm) |
| Height - Seated (Max) | 1.083" (27.50mm) | - | 0.776" (19.70mm) | - | 0.488" (12.40mm) |
