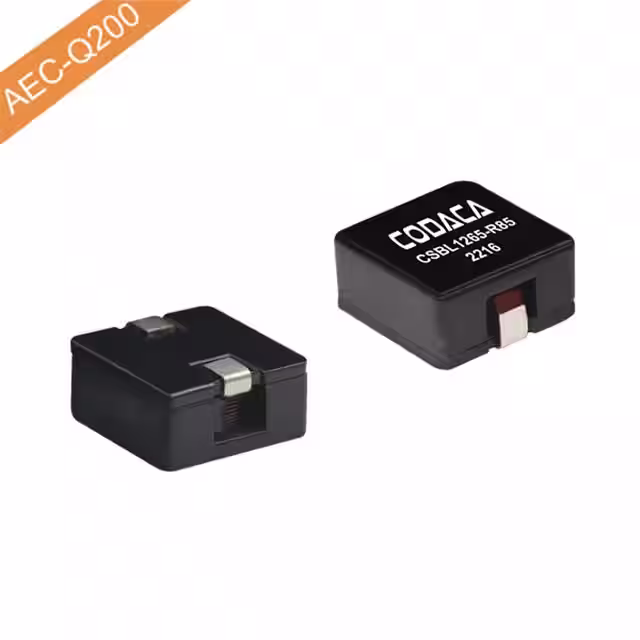

CODACA CSBL1265-150M
- Part No.:
- CSBL1265-150M
- Manufacturer:
- CODACA
- Category:
- Fixed Inductors
- Package:
- Nonstandard
- Datasheet:
-
CSBL1265-150M.pdf
- Description:
- SMD HIGH CURRENT POWER INDUCTOR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
CSBL1265-150M Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CODACA
- Series:
- CSBL1265
- Package/Case:
- Nonstandard
- Packaging:
- Product Status:
- Active
- Type:
- Wirewound
- Material - Core:
- Metal Composite
- Inductance:
- 15 µH
- Tolerance:
- ±20%
- Current Rating (Amps):
- 9 A
- Current - Saturation (Isat):
- 9.5A
- Shielding:
- Shielded
- DC Resistance (DCR):
- 14.1mOhm Max
- Q @ Freq:
- -
- Frequency - Self Resonant:
- -
- Ratings:
- AEC-Q200
- Operating Temperature:
- -50°C ~ 150°C
- Inductance Frequency - Test:
- 100 kHz
- Features:
- Flat Wire, High Q Value
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- -
- Size / Dimension:
- 0.543" L x 0.504" W (13.80mm x 12.80mm)
- Height - Seated (Max):
- 0.244" (6.20mm)
- Datasheet:
-
CSBL1265-150M.pdf
| Image |  |
 |
| Part Number | CSBL1265-220M | CSBL1265-150M |
| Manufacturer | CODACA | CODACA |
| Series | CSBL1265 | CSBL1265 |
| Package/Case | Nonstandard | Nonstandard |
| Packaging | Cut Tape (CT) | |
| Product Status | Active | Active |
| Type | Wirewound | Wirewound |
| Material - Core | Metal Composite | Metal Composite |
| Inductance | 22 µH | 15 µH |
| Tolerance | ±20% | ±20% |
| Current Rating (Amps) | 8 A | 9 A |
| Current - Saturation (Isat) | 8A | 9.5A |
| Shielding | Shielded | Shielded |
| DC Resistance (DCR) | 21.5mOhm Max | 14.1mOhm Max |
| Q @ Freq | - | - |
| Frequency - Self Resonant | - | - |
| Ratings | AEC-Q200 | AEC-Q200 |
| Operating Temperature | -50°C ~ 150°C | -50°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz | 100 kHz |
| Features | Flat Wire, High Q Value | Flat Wire, High Q Value |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | - | - |
| Size / Dimension | 0.543" L x 0.504" W (13.80mm x 12.80mm) | 0.543" L x 0.504" W (13.80mm x 12.80mm) |
| Height - Seated (Max) | 0.256" (6.50mm) | 0.244" (6.20mm) |
