Bourns Inc. 70F335AI
- Part No.:
- 70F335AI
- Manufacturer:
- Bourns Inc.
- Category:
- Fixed Inductors
- Package:
- Axial
- Datasheet:
-
70F335AI.pdf
- Description:
- FIXED IND 33UH 208MA 2.76 OHM TH
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
70F335AI Information
- Specifications
- Product Details
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Bourns Inc.
- Series:
- 70F
- Package/Case:
- Axial
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Drum Core, Wirewound
- Material - Core:
- Iron
- Inductance:
- 33 µH
- Tolerance:
- ±5%
- Current Rating (Amps):
- 208 mA
- Current - Saturation (Isat):
- -
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 2.76Ohm Max
- Q @ Freq:
- 50 @ 2.5MHz
- Frequency - Self Resonant:
- 10MHz
- Ratings:
- -
- Operating Temperature:
- -55°C ~ 105°C
- Inductance Frequency - Test:
- 2.5 MHz
- Features:
- -
- Mounting Type:
- Through Hole
- Supplier Device Package:
- -
- Size / Dimension:
- 0.170" Dia x 0.250" L (4.32mm x 6.35mm)
- Height - Seated (Max):
- -
- Datasheet:
-
70F335AI.pdf

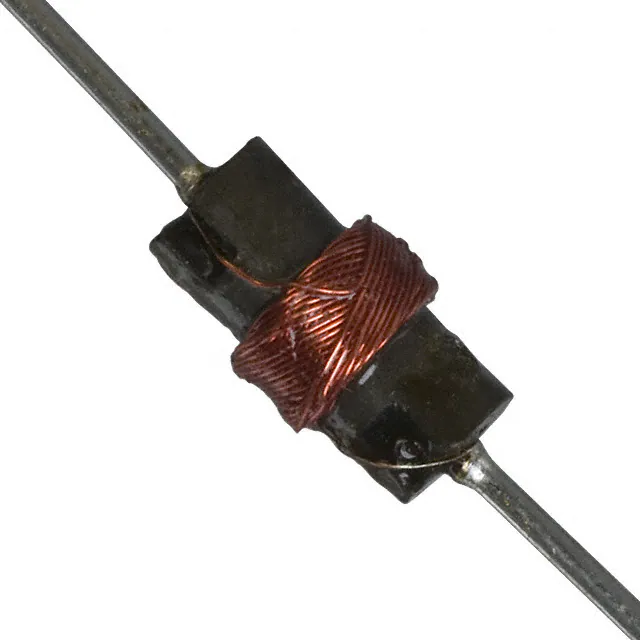

| Image |  |
|
| Part Number | 70F335AI | 70F335AI-RC |
| Manufacturer | Bourns Inc. | Bourns Inc. |
| Series | 70F | 70F |
| Package/Case | Axial | Axial |
| Packaging | Bulk | Bulk |
| Product Status | Obsolete | Obsolete |
| Type | Drum Core, Wirewound | Drum Core, Wirewound |
| Material - Core | Iron | Iron |
| Inductance | 33 µH | 33 µH |
| Tolerance | ±5% | ±5% |
| Current Rating (Amps) | 208 mA | 208 mA |
| Current - Saturation (Isat) | - | - |
| Shielding | Unshielded | Unshielded |
| DC Resistance (DCR) | 2.76Ohm Max | 2.76Ohm Max |
| Q @ Freq | 50 @ 2.5MHz | 50 @ 2.5MHz |
| Frequency - Self Resonant | 10MHz | 10MHz |
| Ratings | - | - |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Inductance Frequency - Test | 2.5 MHz | 2.5 MHz |
| Features | - | - |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | - | - |
| Size / Dimension | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Height - Seated (Max) | - | - |
