Fixed Inductors(147749)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDED20161T-1R0MSFIXED IND 1UH 1.7A 107 MOHM SMD |
3,975 |
|
Datasheet
|
SDED20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 1.7 A | 1.8A | Shielded | 107mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

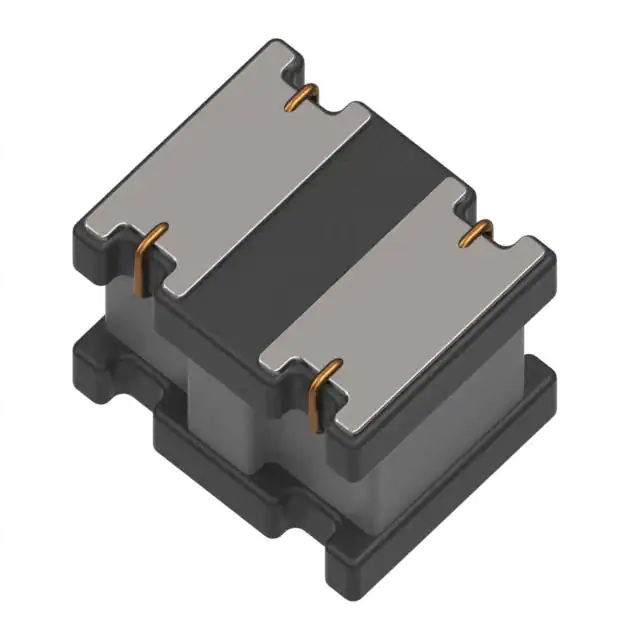

SDEB12101T-R47MSDFIXED IND 470NH 1.55A 96MOHM SMD |
3,849 |
|
Datasheet
|
SDEB12101T | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 1.55 A | 1.4A | Shielded | 96mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.049" L x 0.039" W (1.25mm x 1.00mm) | 0.039" (1.00mm) |
.jpg)
|
MLF1608C180KTD25FIXED IND 18UH 2MA 1.6 OHM SMD |
3,829 |
|
Datasheet
|
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 18 µH | ±10% | 2 mA | - | Shielded | 1.6Ohm Max | 20 @ 1MHz | 20MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.JPG)
|

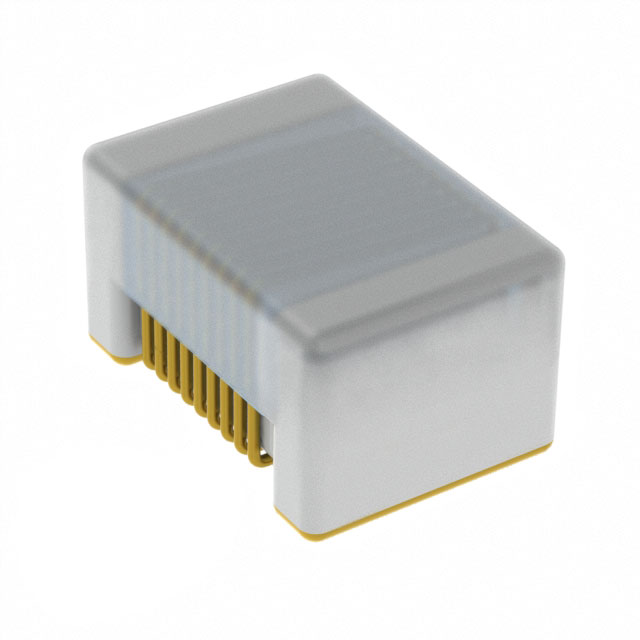

CW161009A-27NJFIXED IND 27NH 600MA 200MOHM SMD |
3,783 |
|
Datasheet
|
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 27 nH | ±5% | 600 mA | - | Unshielded | 200mOhm Max | 35 @ 250MHz | 2.8GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
CW161009A-47NJFIXED IND 47NH 600MA 230MOHM SMD |
3,749 |
|
Datasheet
|
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 230mOhm Max | 35 @ 200MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 200 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
|
CW161009A-3N6JFIXED IND 3.6NH 700MA 70MOHM SMD |
3,400 |
|
Datasheet
|
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.6 nH | ±5% | 700 mA | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
SDEM25201T-3R3MSFIXED IND 3.3UH 1.53A 0.216OHM |
3,163 |
|
Datasheet
|
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 3.3 µH | ±20% | 1.53 A | 1.62A | Shielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CW161009A-3N9JFIXED IND 3.9NH 700MA 70MOHM SMD |
3,000 |
|
Datasheet
|
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.9 nH | ±5% | 700 mA | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
NRV2012T2R2MGFFIXED IND 2.2UH 1.2A 154.8 MOHM |
2,500 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.2 A | 1.6A | Unshielded | 154.8mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
NRV2012T1R0NGFFIXED IND 1UH 1.65A 87.6MOHM SMD |
2,430 |
|
Datasheet
|
NR, V Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 1.65 A | 2.2A | Unshielded | 87.6mOhm Max | - | - | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.079" L x 0.079" W (2.00mm x 2.00mm) | 0.047" (1.20mm) |
|
|
MLF1608E6R8KTD25FIXED IND 6.8UH 15MA 1.3 OHM SMD |
2,290 |
|
Datasheet
|
MLF | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 15 mA | - | Shielded | 1.3Ohm Max | 35 @ 4MHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQW15AN6N9G8ZDFIXED IND 6.9NH 1.42A 0.069OHM |
2,183 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 6.9 nH | ±2% | 1.42 A | - | Unshielded | 69mOhm Max | 32 @ 250MHz | 8.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
CW161009A-15NJFIXED IND 15NH 700MA 120MOHM SMD |
2,068 |
|
Datasheet
|
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 15 nH | ±5% | 700 mA | - | Unshielded | 120mOhm Max | 35 @ 250MHz | 4GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
NLCV25T-1R0M-PFRFIXED IND 1UH 1A 168 MOHM SMD |
2,024 |
|
Datasheet
|
NLCV-PF | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1 A | - | Unshielded | 168mOhm Max | 10 @ 7.96MHz | 100MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.075" (1.90mm) |
|
|
SDEB12101T-1R0MSDFIXED IND 1UH 1.05A 201MOHM SMD |
2,000 |
|
Datasheet
|
SDEB12101T | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 1.05 A | 1.04A | Shielded | 201mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.049" L x 0.039" W (1.25mm x 1.00mm) | 0.039" (1.00mm) |
.JPG)
|

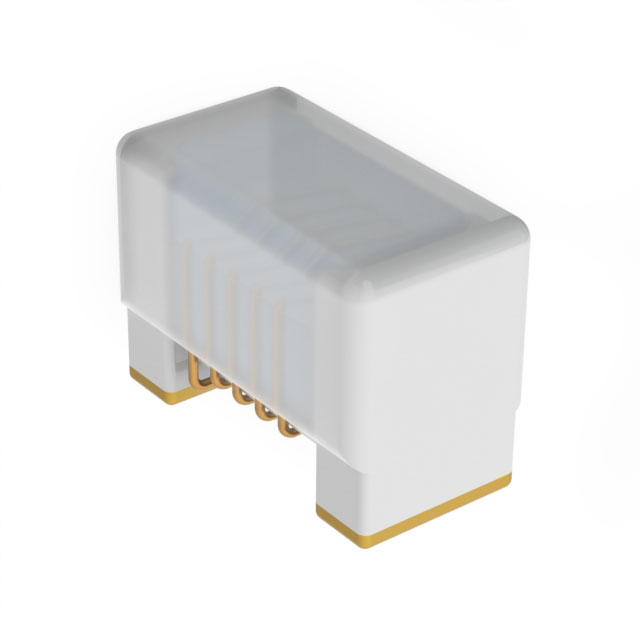

CW105550A-4N3JFIXED IND 4.3NH 700MA 91MOHM SMD |
1,957 |
|
Datasheet
|
CW105550A | 0402 (1005 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 4.3 nH | ±5% | 700 mA | - | Unshielded | 91mOhm Max | 18 @ 250MHz | 6GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
|
LQW15AN4N6G8ZDFIXED IND 4.6NH 1.45A 0.06OHM SM |
1,833 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 4.6 nH | ±2% | 1.45 A | - | Unshielded | 60mOhm Max | 32 @ 250MHz | 9.6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN7N2G8ZDFIXED IND 7.2NH 1.7A 0.05OHM SMD |
1,642 |
|
Datasheet
|
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 7.2 nH | ±2% | 1.7 A | - | Unshielded | 50mOhm Max | 32 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
CW161009A-R18JFIXED IND 180NH 250MA 1 OHM SMD |
1,630 |
|
Datasheet
|
CW161009A | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 180 nH | ±5% | 250 mA | - | Unshielded | 1Ohm Max | 25 @ 100MHz | 990MHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
|
ASMCI-0603-2R2M-TFIXED IND 2.2UH 140MA 400MOHM SM |
1,342 |
|
Datasheet
|
ASMCI-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 140 mA | - | Shielded | 400mOhm | - | 50MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
