Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-1.81-168FIXED IND 168UH 1.81A 180MOHM SM Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 168 µH | ±20% | 1.81 A | - | Unshielded | 180mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
SH150S-1.81-168FIXED IND 168UH 1.81A 180MOHM SM Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 168 µH | ±20% | 1.81 A | - | Unshielded | 180mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|

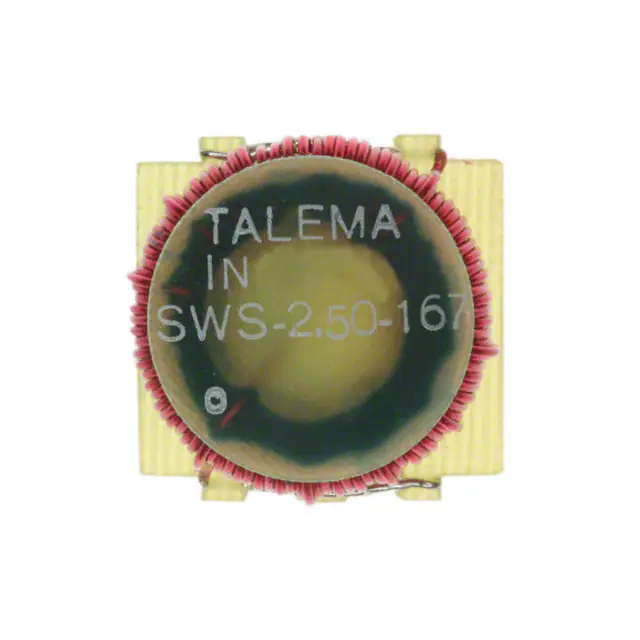

SWS-2.50-167FIXED IND 167UH 2.5A 140MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 167 µH | ±20% | 2.5 A | - | Unshielded | 140mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.506" (12.85mm) |
|
|
SH150S-3.00-53FIXED IND 53UH 3A 80 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 53 µH | ±20% | 3 A | - | Unshielded | 80mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.427" (10.85mm) |
|

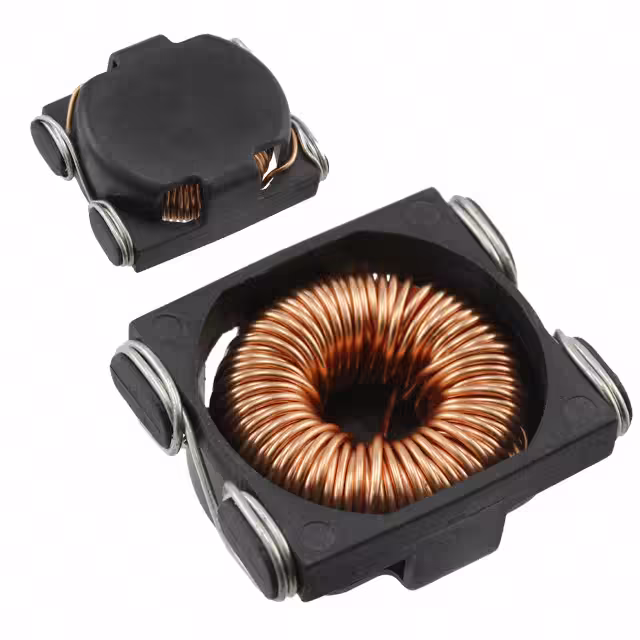

SH150S-3.00-110FIXED IND 110UH 3A 90 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.213" L x 1.000" W (30.80mm x 25.40mm) | 0.514" (13.05mm) |
|
SWS-5.0-23FIXED IND 24.7UH 5A 13 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 24.7 µH | ±20% | 5 A | - | Unshielded | 13mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | 0.510" (12.95mm) |
|
SH260S-5.0-23FIXED IND 24.7UH 5A 13 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 24.7 µH | ±20% | 5 A | - | Unshielded | 13mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
SWS-5.0-33FIXED IND 36UH 5A 19 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 36 µH | ±20% | 5 A | - | Unshielded | 19mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | 0.510" (12.95mm) |
|
|
SH260S-5.0-33FIXED IND 36UH 5A 19 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 36 µH | ±20% | 5 A | - | Unshielded | 19mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|

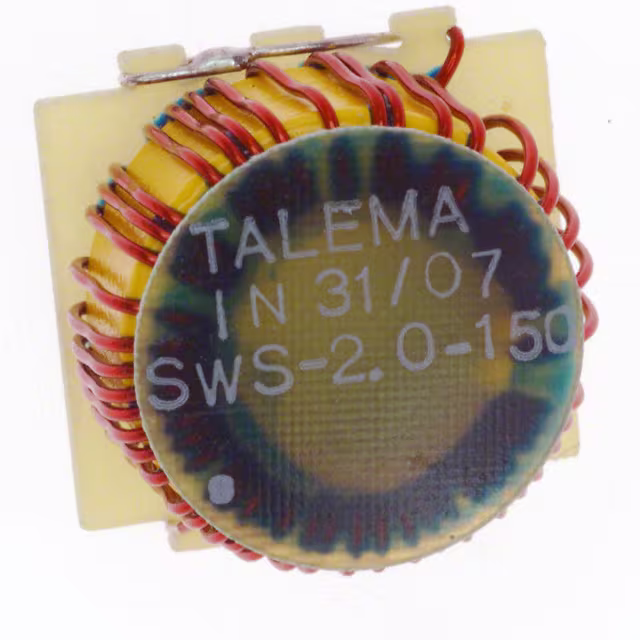

SWS-2.0-150FIXED IND 150UH 2A 100 MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.541" (13.75mm) |
