Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWC-5.0-33FIXED IND 33UH 5A 47 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 33 µH | ±20% | 5 A | - | Unshielded | 47mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SH260C-5.0-33FIXED IND 33UH 5A 47 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 33 µH | ±20% | 5 A | - | Unshielded | 47mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
|
SH150T-2.22-114FIXED IND 114UH 2.22A 100MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 114 µH | ±20% | 2.22 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.386" (9.80mm) |
|
|
SWS6-1.4-220FIXED IND 220UH 1.4A 140MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 220 µH | ±20% | 1.4 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 125°C | 20 kHz | - | Surface Mount | - | 0.925" L x 0.925" W (23.50mm x 23.50mm) | 0.541" (13.75mm) |
|
|
SWC-2.50-167FIXED IND 167UH 2.5A 140 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 167 µH | ±20% | 2.5 A | - | Unshielded | 140mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|

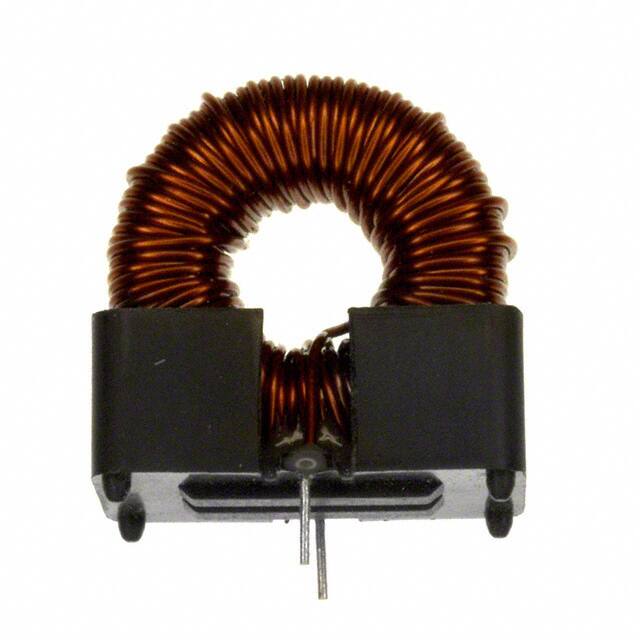

SH150C-2.50-167FIXED IND 167UH 2.5A 140 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH150 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 167 µH | ±20% | 2.5 A | - | Unshielded | 140mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
|
SWC-3.00-110FIXED IND 110UH 3A 90 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 110 µH | ±20% | 3 A | - | Unshielded | 90mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
SH50T-2.0-150FIXED IND 150UH 2A 100 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH50 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 150 µH | ±20% | 2 A | - | Unshielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.689" L x 0.669" W (17.50mm x 17.00mm) | 0.492" (12.50mm) |
|
|
SWC-5.0-50FIXED IND 50UH 5A 50 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 50 µH | ±20% | 5 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
|
|
SH260C-5.0-50FIXED IND 50UH 5A 50 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 50 µH | ±20% | 5 A | - | Unshielded | 50mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.949" L x 0.598" W (24.10mm x 15.20mm) | 1.059" (26.90mm) |
