Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWS-1.02-168FIXED IND 168UH 1.02A 400MOHM SM Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 168 µH | ±20% | 1.02 A | - | Unshielded | 400mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|
|
SWS-1.54-77FIXED IND 77UH 1.54A 200MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 77 µH | ±20% | 1.54 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
|

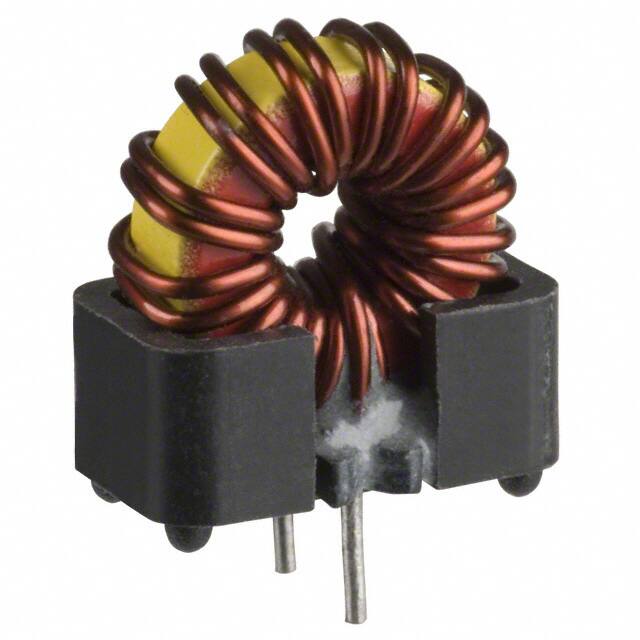

SWC-4.3-10FIXED IND 10.2UH 4.3A 26 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW260 | Radial, Vertical (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10.2 µH | ±20% | 4.3 A | - | Unshielded | 26mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | - | 0.650" L x 0.449" W (16.50mm x 11.40mm) | 0.760" (19.30mm) |
|
SH260C-4.3-10FIXED IND 10.2UH 4.3A 26 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH260 | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 10.2 µH | ±20% | 4.3 A | - | Unshielded | 26mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.580" L x 0.340" W (14.73mm x 8.64mm) | 0.690" (17.53mm) |
|

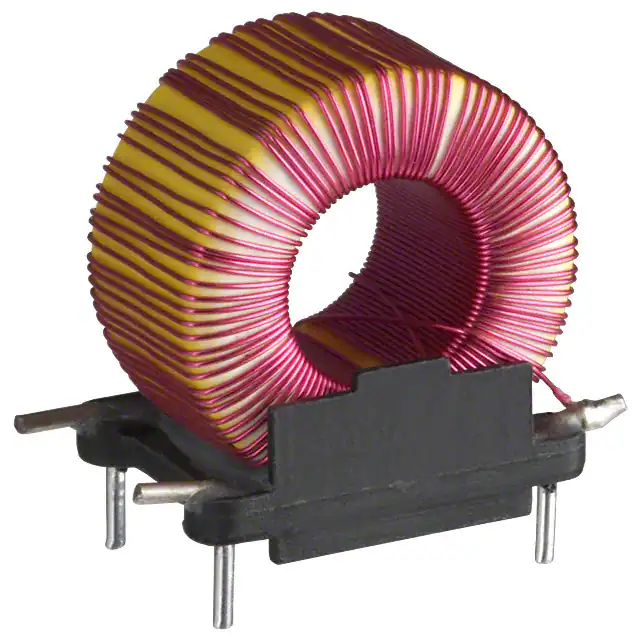

SWB-0.62-1500FIXED IND 1.5MH 620MA 1 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1.5 mH | ±20% | 620 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|
SH260T-4.9-23FIXED IND 22.8UH 4.9A 36 MOHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH260 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 22.8 µH | ±20% | 4.9 A | - | Unshielded | 36mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.957" L x 0.925" W (24.30mm x 23.50mm) | 0.386" (9.80mm) |
|
|
SWB-0.42-2200FIXED IND 2.2MH 420MA 1.8 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SW | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
SH50B-0.62-1500FIXED IND 1.5MH 620MA 1 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | 1.5 mH | ±20% | 620 mA | - | Unshielded | 1Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|

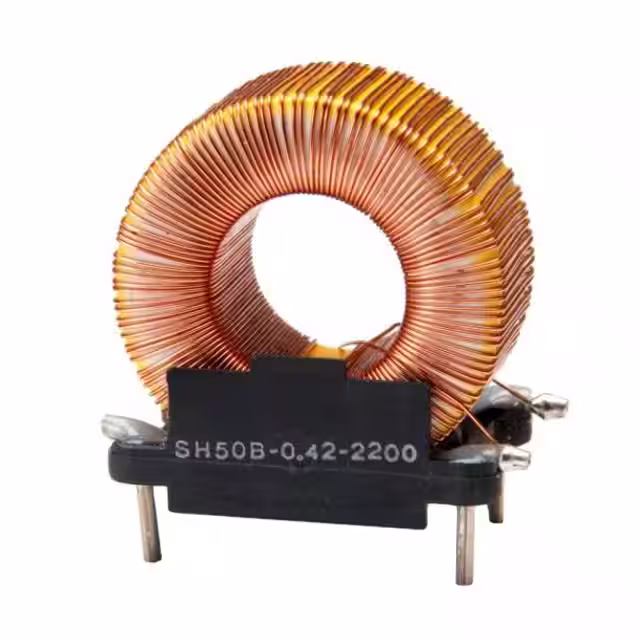

SH50B-0.42-2200FIXED IND 2.2MH 420MA 1.8 OHM TH Amgis, LLC |
0 |
|
Datasheet
|
SH50 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | Iron Powder | 2.2 mH | ±20% | 420 mA | - | Unshielded | 1.8Ohm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 1.449" L x 0.799" W (36.80mm x 20.30mm) | 1.378" (35.00mm) |
|
|
SWS-2.24-37FIXED IND 37UH 2.24A 100MOHM SMD Amgis, LLC |
0 |
|
Datasheet
|
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 37 µH | ±20% | 2.24 A | - | Unshielded | 100mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.591" L x 0.591" W (15.00mm x 15.00mm) | 0.325" (8.25mm) |
