Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

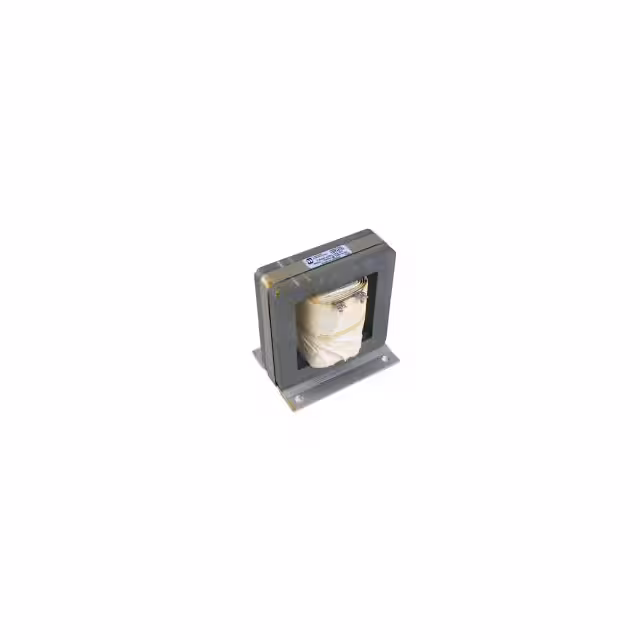

197H10FIXED IND 7.5MH 10A 0.143OHM SMD Hammond Manufacturing |
2 |
|
Datasheet
|
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 7.5 mH | ±15% | 10 A | - | Unshielded | 143mOhm | - | 123.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
195R10FIXED IND 50MH 10A 165 MOHM CHAS Hammond Manufacturing |
2 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 50 mH | ±15% | 10 A | - | Unshielded | 165mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195G30FIXED IND 5MH 30A 23 MOHM CHASS Hammond Manufacturing |
3 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 5 mH | ±15% | 30 A | - | Unshielded | 23mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 5.500" W (133.35mm x 139.70mm) | 4.470" (113.54mm) |
|
|
195C75FIXED IND 1MH 75A 4MOHM CHAS MNT Hammond Manufacturing |
7 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 1 mH | ±15% | 75 A | - | Unshielded | 4mOhm | - | - | - | - | - | - | Chassis Mount | - | 5.250" L x 6.000" W (133.35mm x 152.40mm) | 4.470" (113.54mm) |
|
|
195J30FIXED IND 10MH 30A 37 MOHM CHASS Hammond Manufacturing |
3 |
|
Datasheet
|
195 | Nonstandard | Bulk | Active | - | - | 10 mH | ±15% | 30 A | - | Unshielded | 37mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.000" L x 7.500" W (152.40mm x 190.50mm) | 5.000" (127.00mm) |
|
1536LFIXED IND 4UH 8A 12 MOHM TH Hammond Manufacturing |
65 |
|
Datasheet
|
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 4 µH | ±20% | 8 A | - | Unshielded | 12mOhm | - | 24.3MHz | - | - | 1 kHz | - | Through Hole | - | 0.310" Dia x 0.910" L (7.87mm x 23.11mm) | - |
|
|
1536PFIXED IND 40UH 3A 82 MOHM TH Hammond Manufacturing |
63 |
|
Datasheet
|
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 40 µH | ±20% | 3 A | - | Unshielded | 82mOhm | - | 10.4MHz | - | - | 1 kHz | - | Through Hole | - | 0.310" Dia x 1.250" L (7.87mm x 31.75mm) | - |
|
1532EFIXED IND 55UH 500MA 1 OHM TH Hammond Manufacturing |
62 |
|
Datasheet
|
1532 | Axial | Bulk | Active | Wirewound | - | 55 µH | ±10% | 500 mA | - | Unshielded | 1Ohm Max | 72 @ 2.5MHz | 17MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
1532DFIXED IND 39UH 600MA 650 MOHM TH Hammond Manufacturing |
80 |
|
Datasheet
|
1532 | Axial | Bulk | Active | Wirewound | - | 39 µH | ±10% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.5MHz | 200kHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
1536ZFIXED IND 1MH 1A 550 MOHM TH Hammond Manufacturing |
80 |
|
Datasheet
|
1536 | Axial | Bulk | Active | Drum Core, Wirewound | Iron Powder | 1 mH | ±20% | 1 A | - | Unshielded | 550mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.500" Dia x 1.030" L (12.70mm x 26.16mm) | - |
